9

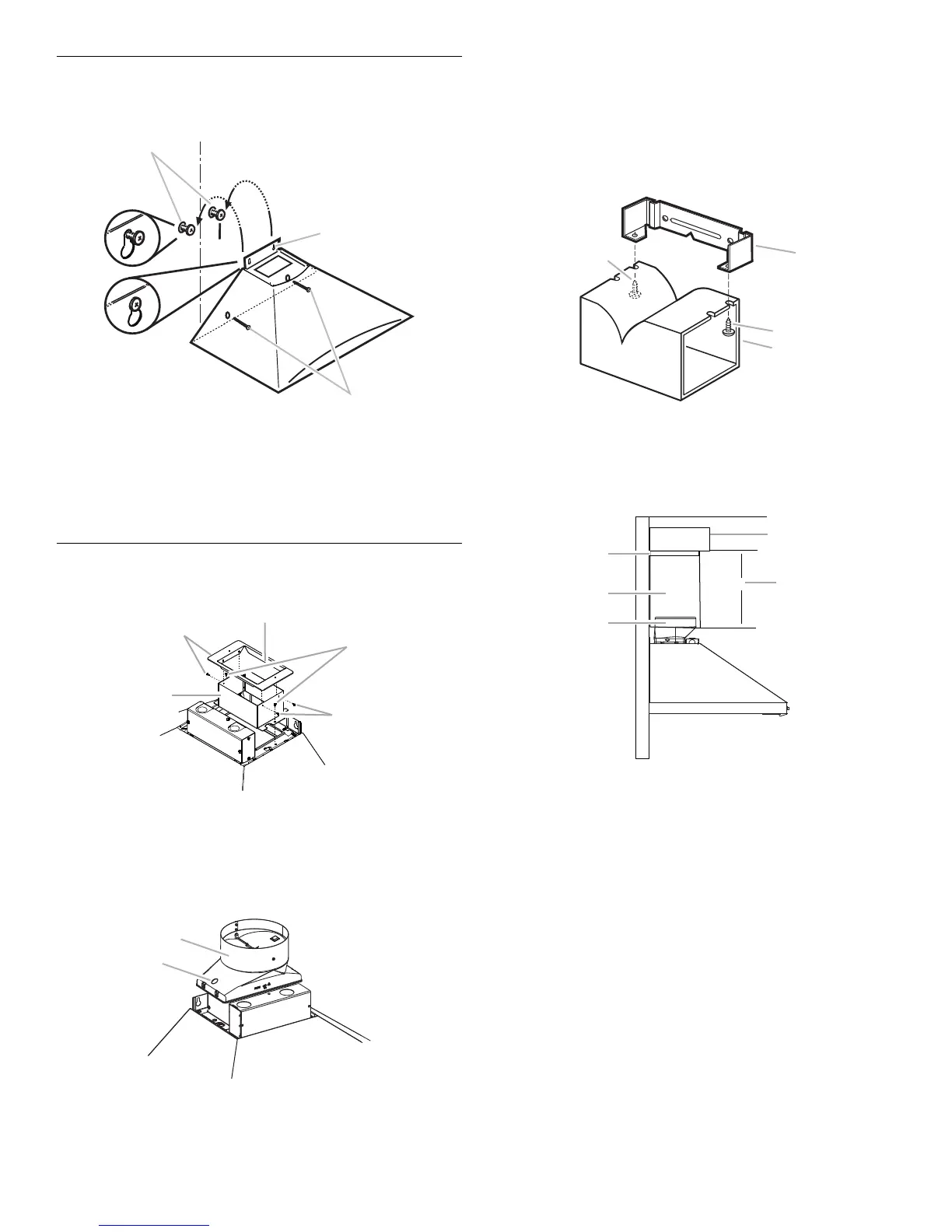

Install Range Hood
1. Using 2 or more people, hang range hood on 2 mounting
screws through the mounting slots on back of hood.
2. Remove the grease filter. See “Range Hood Care” section.
3. Level the range hood and tighten upper mounting screws.
4. Install 2 - 5 x 45 mm lower mounting screws and tighten.
Connect Vent System
1. Install the spacer and the outlet plate on top of the hood.
2. Install transition on top of outlet plate (if removed for
shipping) with 2 - 3.5 x 9.5 mm sheet metal screws.
For vented installations only:
1. Fit vent system over transition piece.
2. Seal connection with clamps.
3. Check that back draft dampers work properly.
For non-vented (recirculating) installation only:
1. Assemble the air deflector with the duct cover bracket with
2 - assembly screws provided with the Recirculation Kit.
2. Measure from the bottom of the air deflector to the bottom of
the hood outlet.
3. Cut the duct to the measured size (X).
4. Remove the air deflector.
5. Slide the duct onto the bottom of the air deflector.
6. Place the assembled air deflector and duct over the exhaust
outlet from the hood.
7. Reassemble the air deflector to the duct cover bracket with
2 assembly screws.
8. Seal connections with vent clamps.
A. Mounting screws
B. Mounting slots
C. Lower mounting screws
A. Spacer
B. Outlet plate
C. 2 - 3.5 x 9.5 mm screws
D. 4 - 3.5 x 6.5 mm screws
A. Vent transition
B. 3.5 x 9.5 mm screw
A
B
C
A
D
B
D
C
B
A
A. Vent cover bracket
B. 2.9 x 6.5 mm screws
C. Deflector
A. Air deflector
B. Vent clamp
C. X = length to cut vent duct
D. Vent duct
E. Exhaust outlet
A
C
B
B
X
A
C
D
B
E
