KitchenAid Superba Series Use And Care Guide

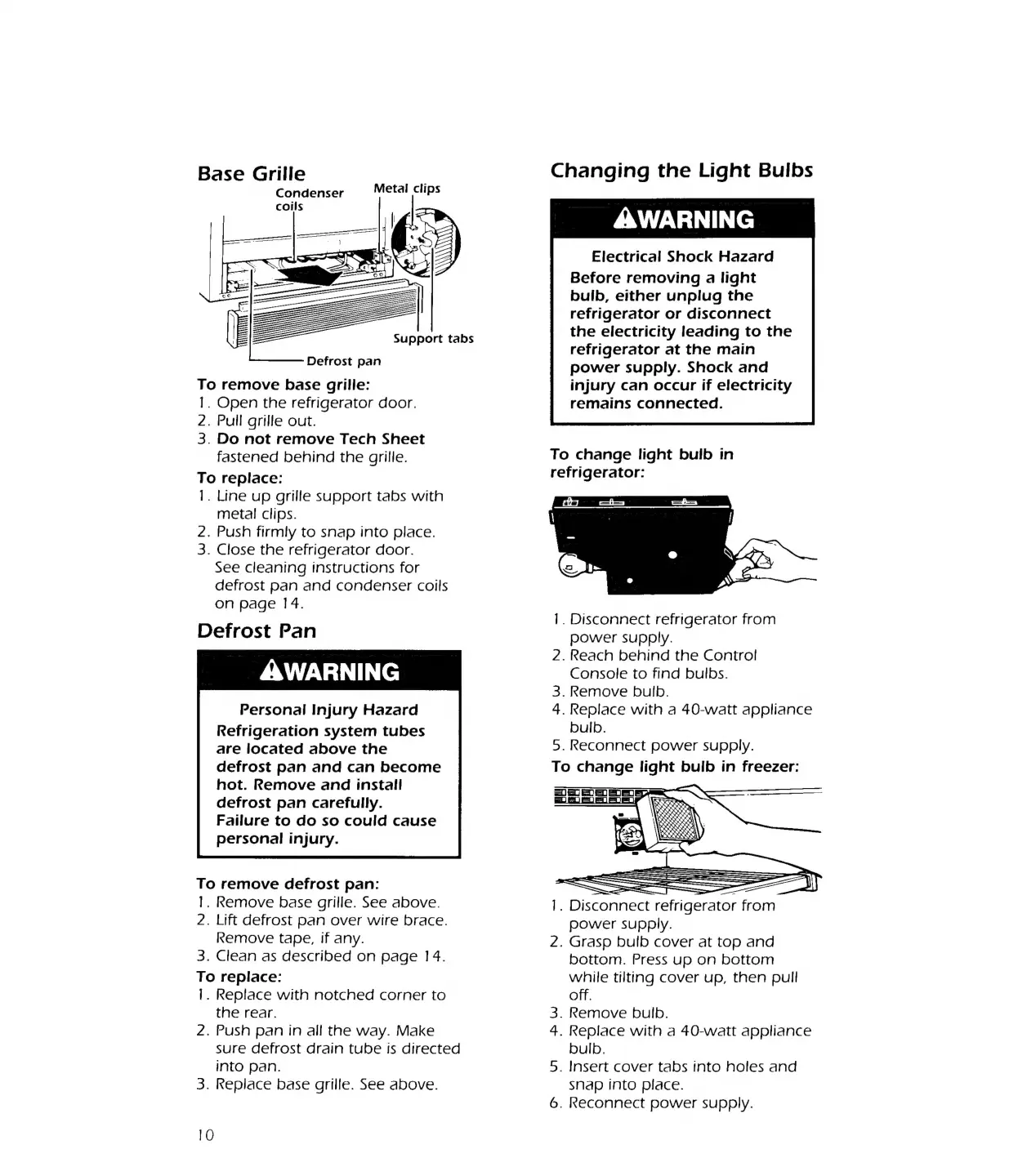

Base Grille
Condenser
coils
Metal clips
Support tabs
Defrost pan
To remove base grille:
1. Open the refrigerator door.
2. Pull grille out.
3. Do not remove Tech Sheet
fastened behind the grille.
To replace:
1. Line up grille support tabs with
metal clips.
2. Push firmly to snap into place.
3. Close the refrigerator door.
See cleaning instructions for
defrost pan and condenser coils
on page 14.
Defrost Pan
AWARNING
Personal Injury Hazard
Refrigeration system tubes
are located above the
defrost pan and can become
hot. Remove and install
defrost pan carefully.
Failure to do so could cause
personal injury.
To remove defrost pan:
1. Remove base grille. See above.
2. Lift defrost pan over wire brace.
Kemove tape, if any.
3. Clean as described on page 14.
To replace:
1. Replace with notched corner to
the rear.
2. Push pan in all the way. Make
sure defrost drain tube is directed
into pan.
3. Replace base grille. See above.
Changing the Light Bulbs
AWARNING
Electrical Shock Hazard
Before removing a light
bulb, either unplug the
refrigerator or disconnect
the electricity leading to the
refrigerator at the main
power supply. Shock and
injury can occur if electricity
remains connected.
To change light bulb tn
refrigerator:
|. Disconnect refrigerator from
power supply.
2. Reach behind the Control
Console to find bulbs.
3. Remove bulb.
4. Replace with a 40-watt appliance
bulb.
5. Reconnect power supply.
To change light bulb in freezer:
1. Disconnect refrigerator from
power supply.
2. Grasp bulb cover at top and
bottom. Press up on bottom
while tilting cover up, then pull
off.
3. Remove bulb.
4. Replace with a 40-watt appliance
bulb.
2. Insert cover tabs tnto holes and
snap into place.
6. Reconnect power supply.
