KitchenAid Superba Series Use And Care Guide

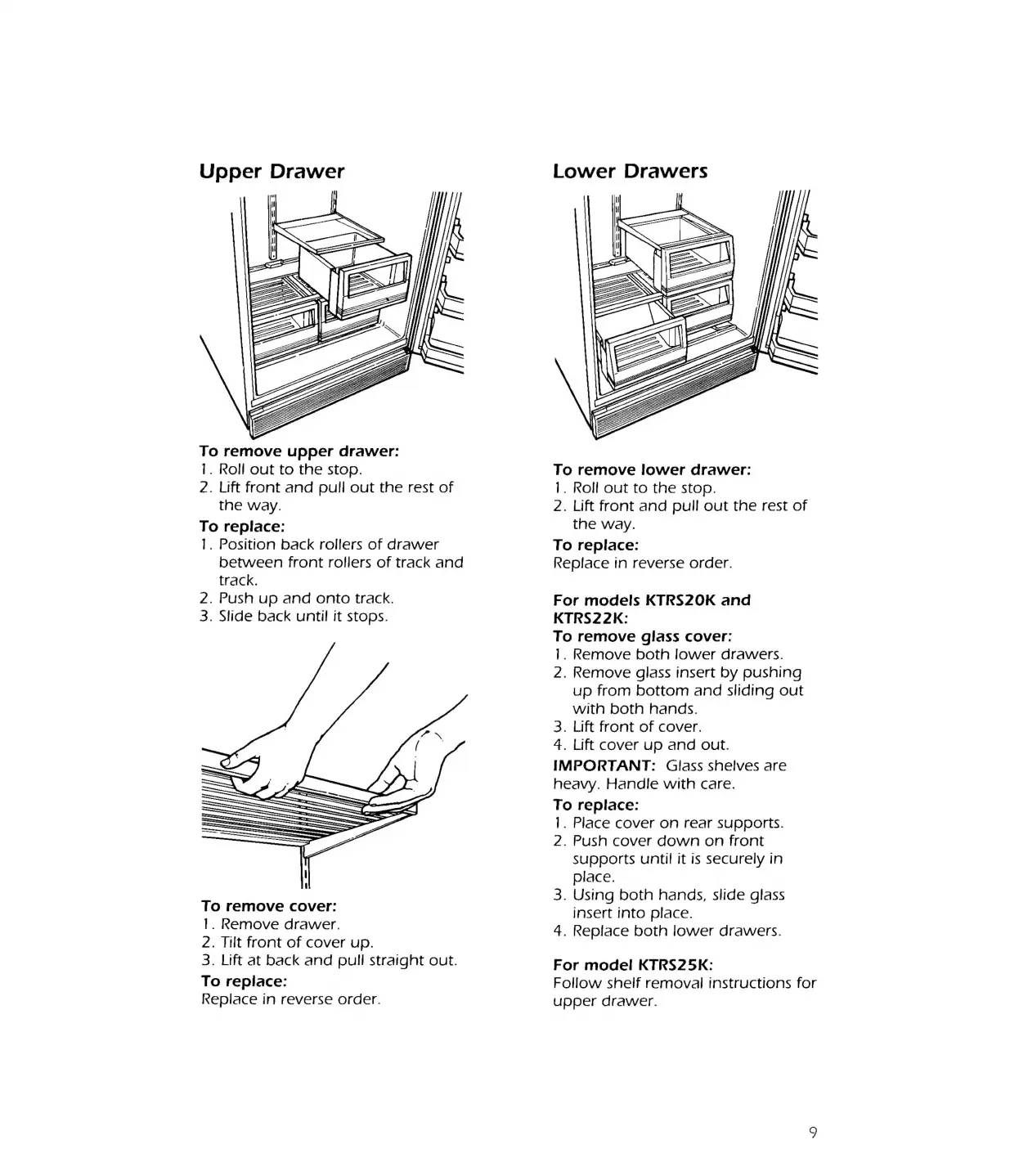

To remove upper drawer:
1. Roll out to the stop.
2. Lift front and pull out the rest of
the way.
To replace:
1. Position back rollers of drawer
between front rollers of track and
track.
2. Push up and onto track.
3. Slide back until it stops.
To remove cover:
1. Remove drawer.
2. Tilt front of cover up.
3. Lift at back and pull straight out.
To replace:
Replace in reverse order.
Lower Drawers
To remove lower drawer:
1. Roll out to the stop.
2. Lift front and pull out the rest of
the way.
To replace:
Replace in reverse order.
For models KTRS20K and
KTRS22K:
To remove glass cover:
1. Remove both lower drawers.
2. Remove glass insert by pushing
up from bottom and sliding out
with both hands.
3. Lift front of cover.
4. Lift cover up and out.
IMPORTANT: Glass shelves are
heavy. Handle with care.
To replace:
1. Place cover on rear supports.
2. Push cover down on front
supports until it is securely in
place.
3. Using both hands, slide glass
insert into place.
4. Replace both lower drawers.
For model KTRS25K:
Follow shelf removal instructions for
upper drawer.

KitchenAid Superba Series Specifications

General

Type	Built-In
Tub Material	Stainless Steel
Noise Level	44 dBA
Energy Star Certified	Yes
Soil Sensor	Yes
Control Type	Electronic
Options	Hi Temp Wash, Sani Rinse
Wash Cycles	Normal, Heavy, Light, Rinse Only, China/Crystal
