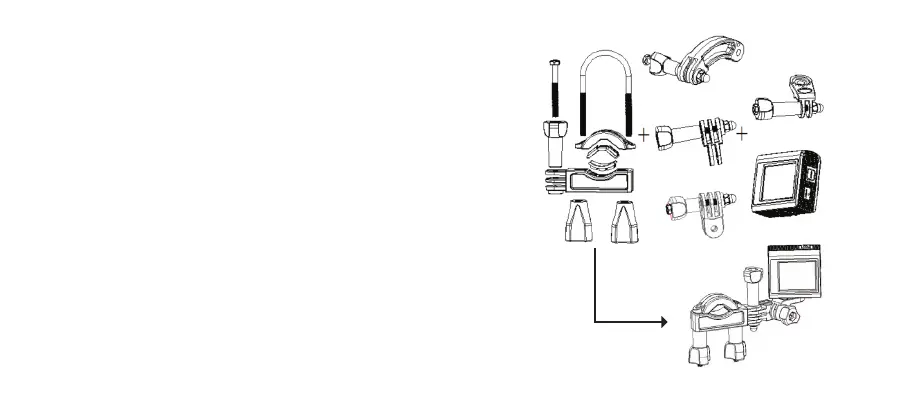

Fixing the camera to a bike
1. Unscrew both screws and remove the metal ring of Mount A.
2. Place the plastic section underneath the handlebar and
place the metal ring over the handlebar.
3. Replace the screws and tighten them up.
4. If needed, choose extra connectors from the three shown
and then x them to part (i) of Mount A.
5. Screw connector (ii) directly to the camera or the
camera case.
6. Attach the camera assembly to the Mount A assembly.
ii.
i.
A.
