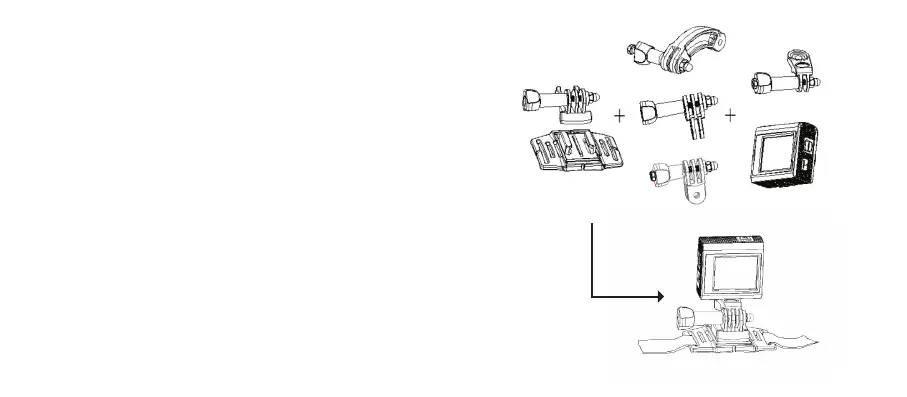

Fixing the camera to a helmet
1. Fix connector (iii) to Mount B as shown.
2. If needed, choose extra connectors from the three shown
and then x them to connector (iii).
3. Screw connector (ii) directly to the camera or the camera case.
4. Attach the camera assembly to the Mount B assembly.
5. After xing the camera to the mount correctly, use the strap
to x it to the helmet. Adjust the length according to the
helmet’s size, and then tie the strap up to your helmet.
2.
1.
ii.
iii.
B.
