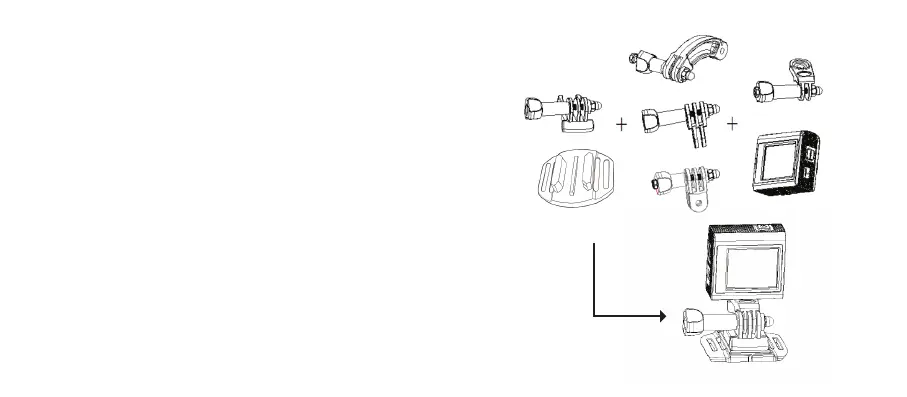

Fixing the camera to a board/flat surface
1. Ensure the surface is clean and dry before applying the
adhesive mount.
2. Peel off adhesive paper and stick the mount in the desired
position.
3. Fix connector (iii) to Mount C as shown.
4. If needed, choose extra connectors from the three shown
and then x them connector (iii).
5. Screw connector (ii) directly to the camera or the camera case.
6. Attach the camera assembly to the Mount C assembly.
