• In hot climate zone, an air vent or grid, with a minimum ventilation size of 200mm
x 40mm MUST be cut out at the rear top of the back partitioning or at the top
of either side of the partitioning, allowing cool fresh air full access to ow into
the 30mm gap located at the rear of the cabinet. This air vent or grid must not
be opened on the same side as other appliances such as ovens or an area that
is sealed and without access to fresh cool air. Failing to comply with the above
specications could result in WARRANTY void.
Installation as built-in unit

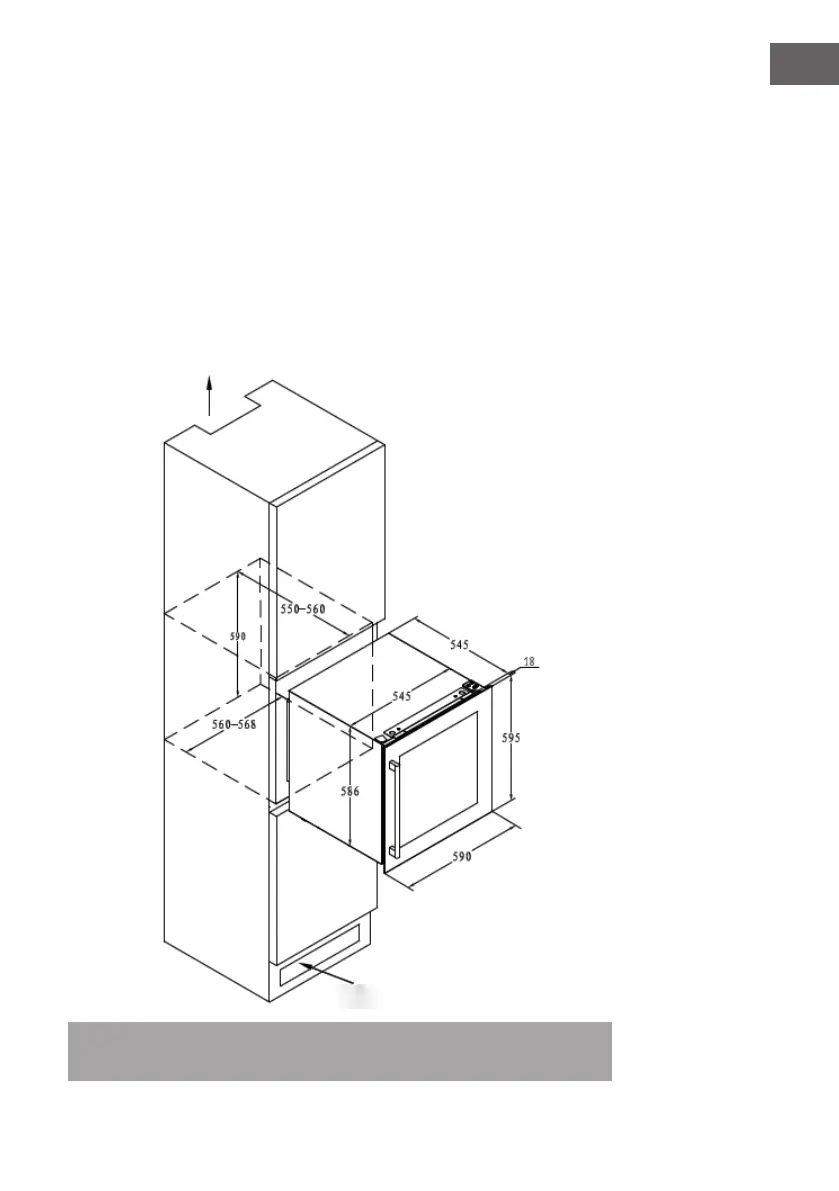

The appliance is designed to fully build into a cabinet. Observe the dimensions and
distances (in mm) shown in the gure below:
Note: Wine bottles can be stored if you feel a cooling after about 1 hour operation
of the appliance.
min. 200 cm²
min. 200 cm²
