Drill 3 holes (Ø 8 mm) in a suitable place on the wall once the installation
height is determined.
4

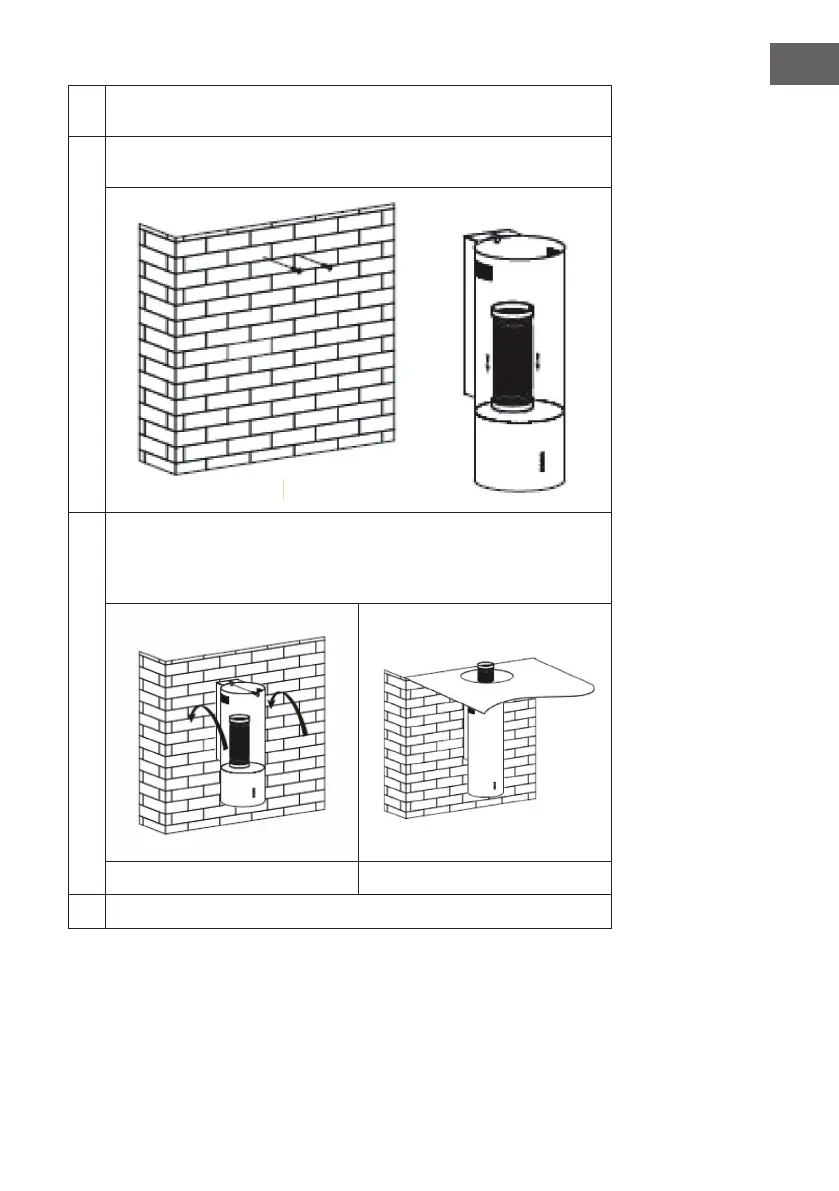

Place the dowels in the holes, screw the 2 screws ST4*30 mm halfway into the
dowels to x the canopy body (see picture).
5
Mount the V-ap and the expansion tube on the cooker hood and x the
expansion tube with a cable tie (see picture A). Hang the cooker hood on the
screws and x the housing with 1 safety screw ST4*30 mm. Note: The two
safety vents (diameter of 6 mm) are located on the rear housing (see picture B).
A B
6
Finally, guide the expansion tube to the outside.
