56
EN

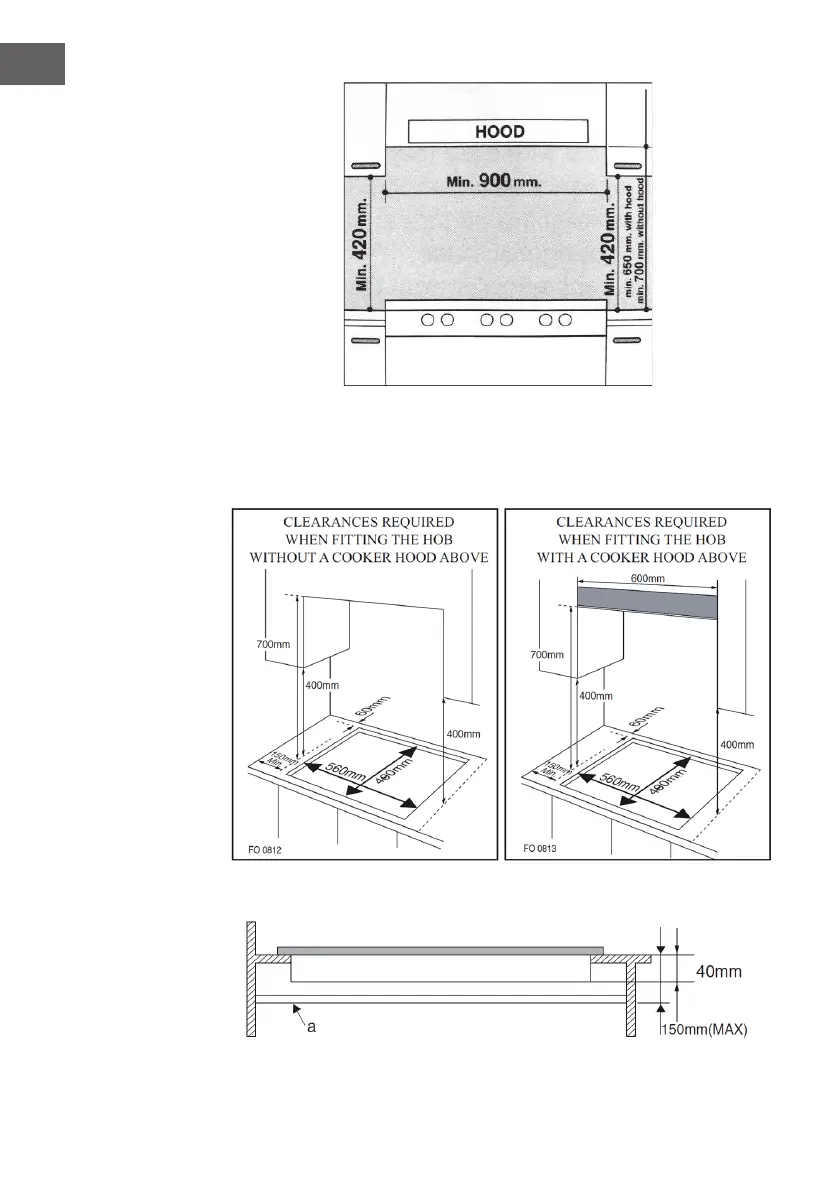

4. Hob should be installed directly under a cupboard, the latter should be at least
700 mm from the worktop, as shown in Fig. C.
5. Fixing ttings (hooks, screws) are provided to place the hob on work top,
measure 20 to 40 mm in thickness (see Fig. 6).
840 mm*
* Built-in size for 90-cm model
840 mm*
