GAS SPECIFICATIONS

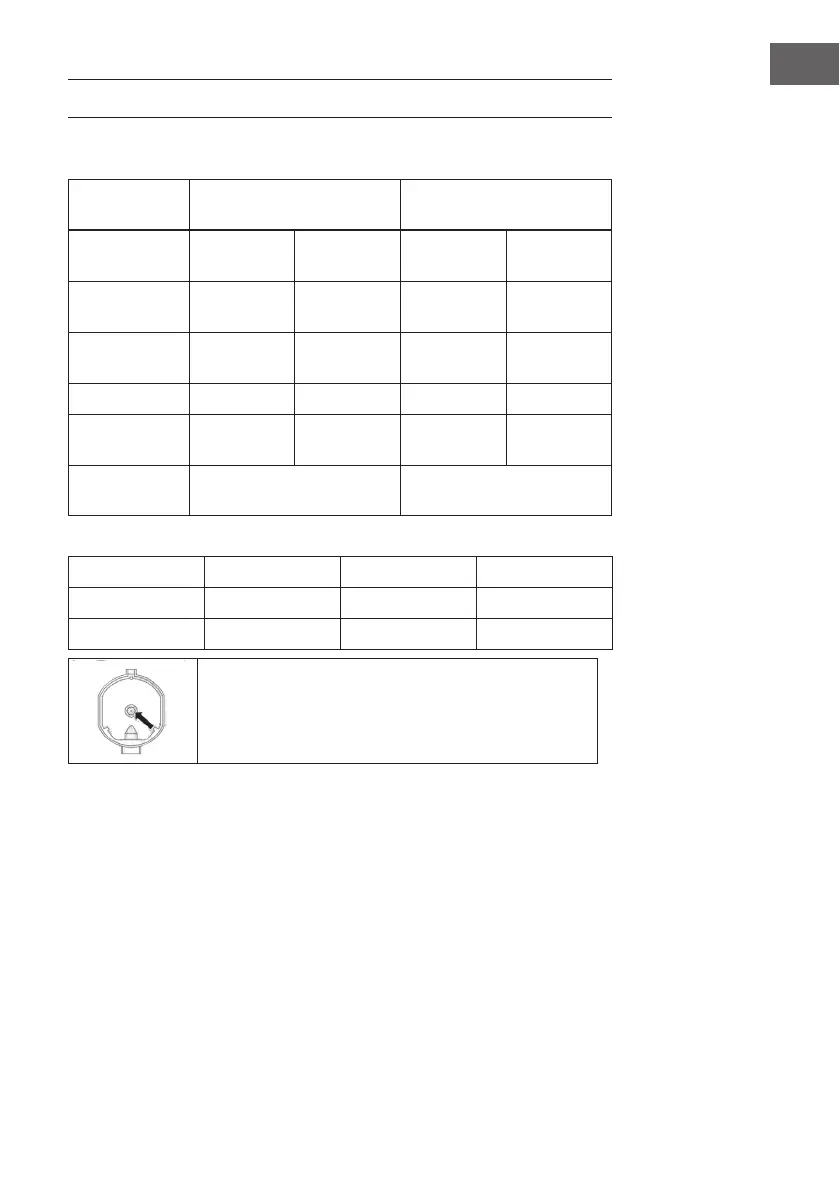

TABLE 1: Burners and Nozzle Specications
G20 G30
Burner Thermal
power (kW)
Nozzle
1/100 (mm)
Thermal
power (kW)
Nozzle 1/100
(mm)
Auxiliary
(Small) (A)
1.0 71 1.0 52
Semi rapid
(Medium)
1.8 97 1.8 67
Rapid (R) 2.4 110 2.4 67
Triple Ring
(TR)
3.4 125 3.4 93
Supply
pressures
20 mbar 50 mbar
At 15°C and 1013 mbar - dry gas
P.C.I.G20 37.78 MJ/m³ P.C.I.G25.1 32.51 MJ/m³
P.C.I.G25 32.49 MJ/m³ P.C.I.G27 30.98 MJ/m³
P.C.I.G2.350 27.20 MJ/ m³ P.C.I.G30 49.47 MJ/Kg
Replacement of burner nozzle: loosen the nozzle with a
dedicated wrench(7).Fit the new nozzle according to the
required gas type (see table 1 for reference).
After you have converted the gas hob to another gas type, make sure you
have placed a label containing that information on the appliance:
