VDV Commander
™
Locate and Identify Cables
•
Location ID Remotes – up to 20 locations
(Fig. 1)
•
RJ45 LanMap™ ID Remotes
•
F-Connector CoaxMap™ ID Remotes
•
Location Identification and Testing – up to 8 locations
(Fig. 2)
•
Test-n-Map™ ID Remotes
•
RJ45 and RJ12 ports
•
Link Light
(Fig. 3)
•
I
dentify a hub or switch with a blinking light
•
Visually locate cable runs by flashing system status/activity LED
•
Tone Generator*
(Fig. 4)
•
Trace cables, wire pairs and individual conductor wires
•
Indicates to a single cable/pair/pin
•
Includes four tones
Perform Active Network (Ethernet) Testing
•
Detect active Ethernet current link speed, up to 1 Gbps
•
Indicates advertised speeds 10/100/1000BASE-T half/full duplex
Reporting
•
Save up to 256 cable or network tests
•
Customize reporting with user defined names
•
Export and print color reports
* Functionality requires an analog tone tracing probe - VDV500-060 (Included in some kits).

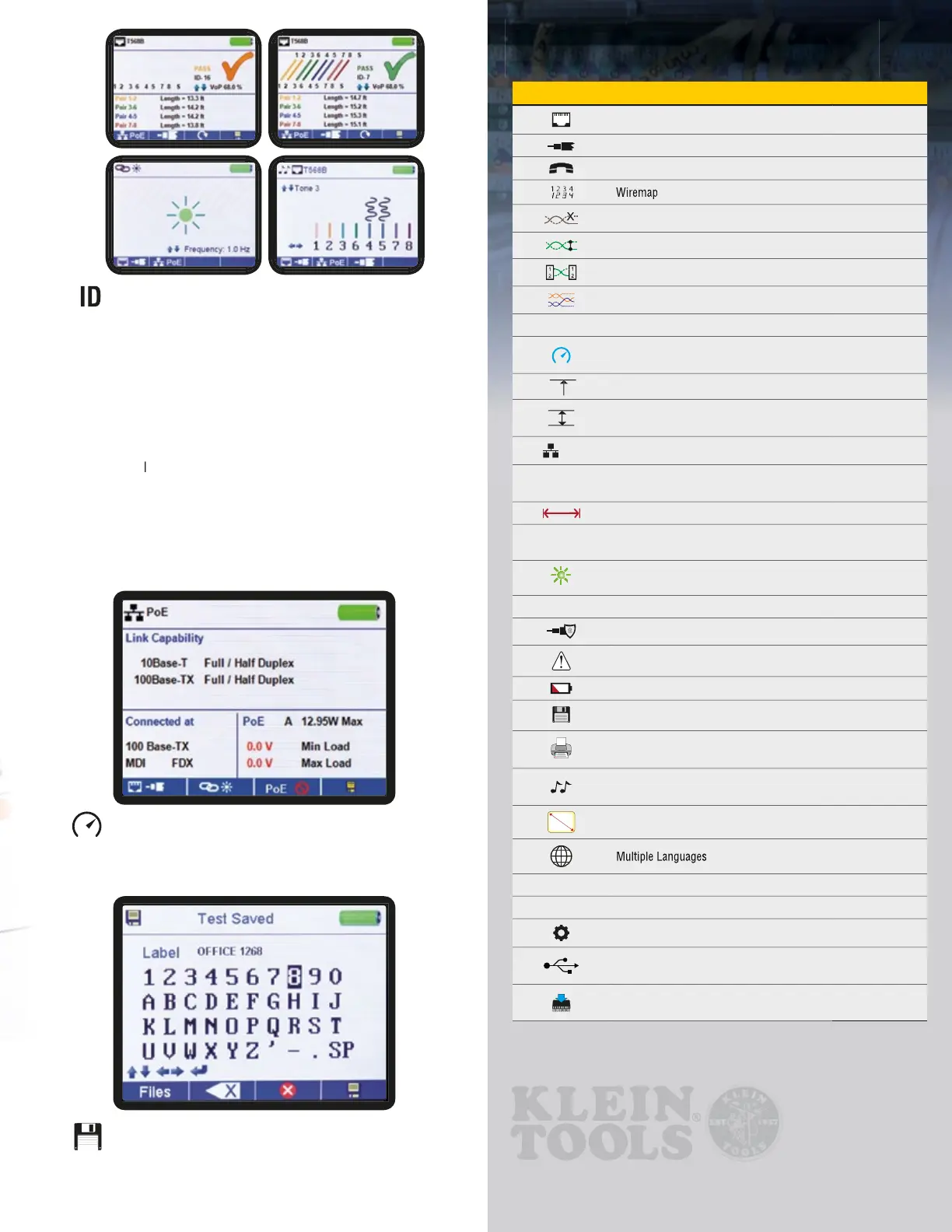

Fig. 1
Fig. 3
Fig. 2
Fig. 4
FEATURES
RJ-45 8-Wire Cables
●
F-connector Coaxial Cables
●
Telephone Cables
With Adapter
Wiremap
●
Open Fault
●
Short Fault
●
Miswire Fault
●
Split-Pair Fault
●
Pass
TIA-568A/B & Crossover/Uplink
●
Active Ethernet
Detects link speed and capabilities to 1 Gbps
●
Single-End Cable Testing
●
Two-End Testing
Test and identify location with remote
●
Po E
Power Over Ethernet Testing
●
TDR
Time Domain Reflectometry
Length Measurement Method
●
Measures Cable Length
1,500 Ft. / 457 m
±(5% and ± 1 ft.)
±(5% and ± .03 m)
Accuracy / Measurement Resolution
●
Link Light
●
ID
Cable Identification
up to 20
S
Shield Detection
●
Voltage Warning
●
Low Battery Indicator
●
Store Test Results
256
Print Custom Reports
●
Multiple-style Tone Generator*
Down to Single Conductor/Pair/Cable
4
Color LCD Display
2.7" (69 mm)
Multiple Languages
ENG·ESP·FRA
Ft. / m
Imperial or Metric Results
●
Apo
Auto Power Off
●
Customizable Setup
●
USB interface
(for PC connection)
MICRO
Upgradeable Firmware
(requires internet & pc connection)
●
