Title of this help project11
© 2003 Klein Instruments Corporation
The "Operator" and "Shift" are stored with data, for the purpose of sorting data by a certain operator or
shift. They can be chosen or edited now. (or use the default values).
The "Number of Measurement Points" can be chosen now. You may choose up to 9 points to be
measured and stored in a single data record.
The "Y Uniformity Spec" can be chosen now. If more than one measurement points are taken, the "OK /
NoPass" criteria for the record will in part depend on how uniform the measurements are, and the limit for
the criteria is set here. This spec is stored with each record for later data analysis.
The "xyuv' Uniformity Spec" is stored with the record. It is not currently used as part of the "OK /
The "Absurd Value Test Warning" can be set to a large number (1000) so that it does not interfere with
storing data. If you wish to lock out measurements which are obvious mistakes, you may set this to a
value of 0.5 so that readings which are less than 50%, or more than 150% of the spec will not be
recorded. Other values can be chosen for this as well.
The Data Logging Setup values are stored on the pc.

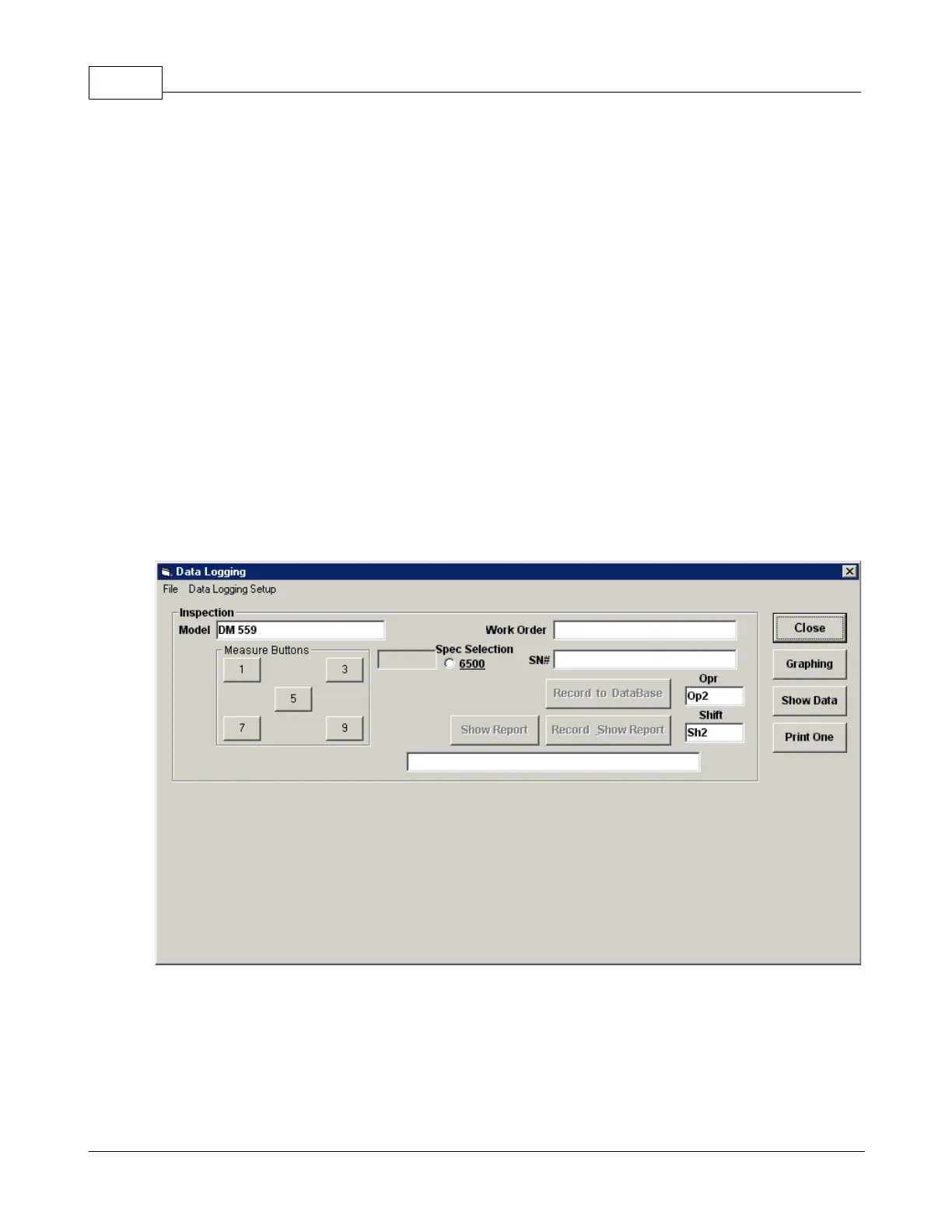

Close the Data Logging Setup, and the Data Logging window will be as shown:
You are now ready to begin logging data.
You must enter something in the SN# field. You may enter any keyboard characters you wish. You may
enter a "Work Order" number if you wish. This SN# and Work Order number will be stored with each data
To Next Page
