Planning Your Klipsch
Home Entertainment System
Your new Klipsch speakers will enhance the performance of your home entertainment system,
whether used within a two-channel audio or multi-channel home theater system. Speaker placement

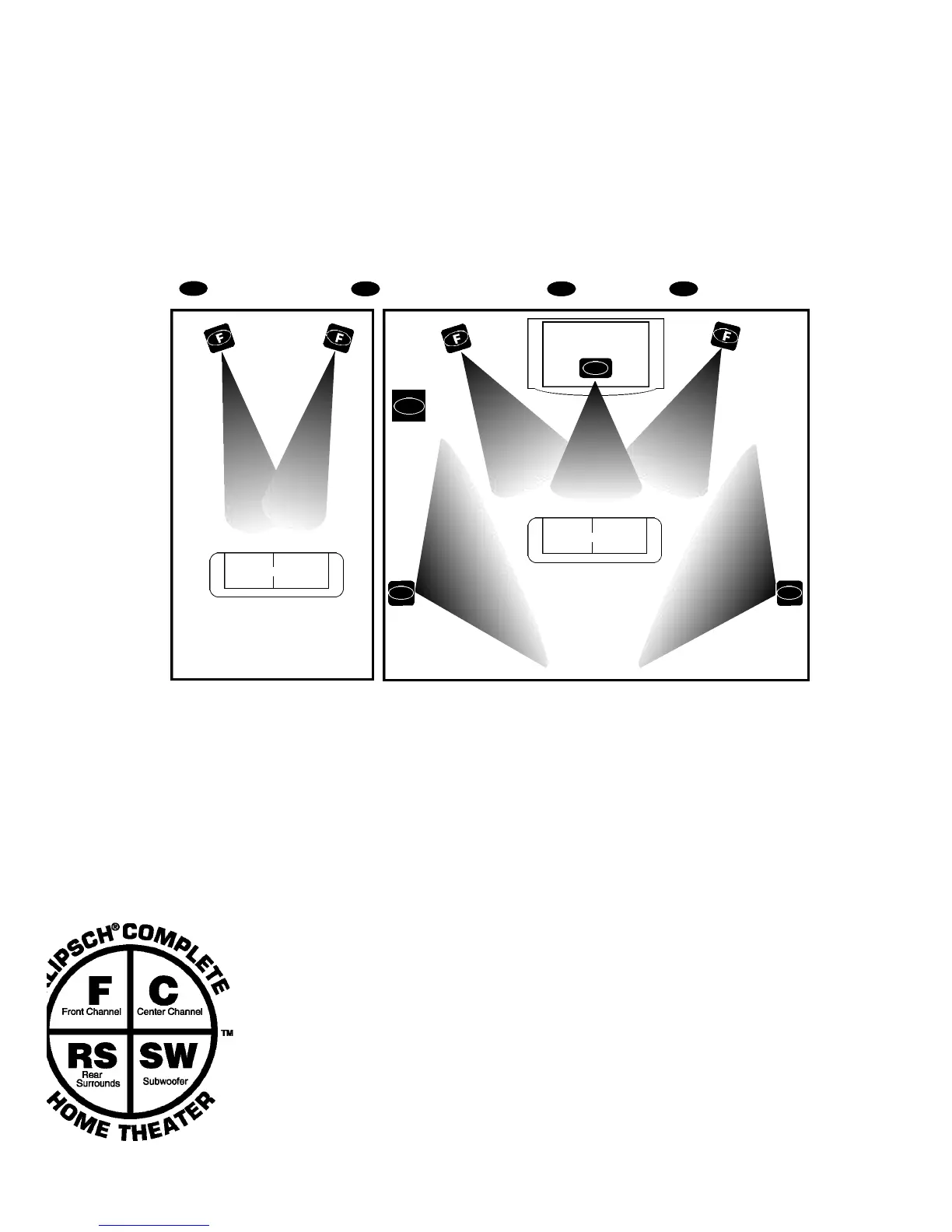

is important in optimizing the performance of your system. Please refer to the diagrams below as a
general guide for how to position the speakers within your listening area.
Klipsch Complete Home Theater
Klipsch has long been a leader in the manufacture of home theater loudspeakers, building on its her-
itage of developing custom sound systems for professional movie theaters. This expertise is put to good
use in developing integrated speaker systems for home theater applications. While each Klipsch speaker
must meet certain specific criteria on its own, it is the careful and deliberate design of the speakers as a
system that results in even and all-encompassing sound. Voice, or timbre, matching ensures that the
resulting outputs have similar sonic characteristics, meaning as sound moves throughout the listening
area from speaker to speaker, it is seamless and enveloping.
For a truly complete home theater, you need closely matched components capable of accurately
reproducing all of the detail and dynamic range of the source material. Klipsch recommends the
following grouping of components to complete your Klipsch Legend Home Theater:
2–KLF 10 Towers 2–KLF 20 Towers
1–KLF-C7 Center Channel 1–KLF-C7 Center Channel
2–KSF-S5 Rear Surrounds 2–KSP-S6 Rear Surrounds
1–KSW 200 Powered Subwoofer 1–KSW 200 Powered Subwoofer
2–KLF 30 Towers
1–KLF-C7 Center Channel
2–KSP-S6 Rear Surrounds
1–KSW 300 Powered Subwoofer
Couch
Left Front
Channel
Video Shielded
Center Channel
Left
Rear
Surround
Channel
Right
Rear
Surround
Channel
Left and Right
Front Channels
Couch
F
SW
C
Right Front
Channel
C
Optional
Powered
Subwoofer
S W
Audio Audio/Home Theater
RS
R S
R S
Left and Right Front Channels Left and Right Surround Channels Center Channel Powered Subwoofer
