Klipsch Legend Series Center Channel
The Legend KLF-C7 is designed specifically for use as a center channel. As such, it uses magnetic
shielding in all of its drivers to minimize picture discoloration and distortion from stray magnetic fields.
PLACEMENT OF THE CENTER CHANNEL
The center channel should be placed above or below (or behind, in the case of a perforated front
projection screen) the center line of the video screen since these sounds are intended to appear to be
coming from the central area of the image. A center channel speaker improves the intelligibility of
dialogue in complex passages and keeps these sounds anchored to the central area of the screen even
when the viewing seat is not centrally located.
Installation of the KLF-C7 Feet
The KLF-C7 is supplied with a pair of adjustable feet to angle the speaker up or down depending on
placement. Aim the speaker directly at listening height. If the KLF-C7 does not need to be angled,
cover the threaded inserts on the bottom of the cabinet with the self-stick rubber pads supplied.
The Adjustable Foot Kit Contains:
2–Threaded Spikes (one end pointed, the other blunt)
2–Jam Nuts
2–Vinyl Caps
4–Self-Stick Rubber Feet
For Low Placement, angle the KLF-C7 upward by screwing the two threaded rods into the inserts at
the front edge of the cabinet.
For High Placement, angle the KLF-C7 down by screwing the two threaded rods into the inserts at
the rear edge of the cabinet.
To Install the Adjustable Feet:
1. Thread the jamb nut onto the pointed end of the threaded
spike.
2. Screw the threaded spikes (pointed end into the cabinet) into
the appropriate inserts as described on the previous page.
3.
Cover the exposed spike ends with the small vinyl caps
to
protect your television cabinet or shelf from being scratched
or marred.
4. Adjust the length of the spikes to achieve the proper angle.
Imagine that the speaker is a spotlight and you are aiming the
beam at the seated ear height in the central listening area.
5. Gently tighten the jam nut to secure the spike.
DO NOT OVERTIGHTEN!
6.
Cover the remaining, unused cabinet inserts with the self-stick rubber feet. Refer to Figure 2.
HOW TO CONNECT THE KLF-C7 CENTER CHANNEL
Switch your electronics OFF when making all connections! To use a center channel speaker, your
receiver, or signal processor, must have a designated center channel output. Connect your KLF-C7 to
the “Center Channel” output terminal of your system’s power amplifier. Be sure to observe proper
polarity (+ to + and - to -) and avoid having excess bare wire at the connectors, which could short
together causing possible amplifier damage. Refer to “About Speaker Wire Connections.”
!

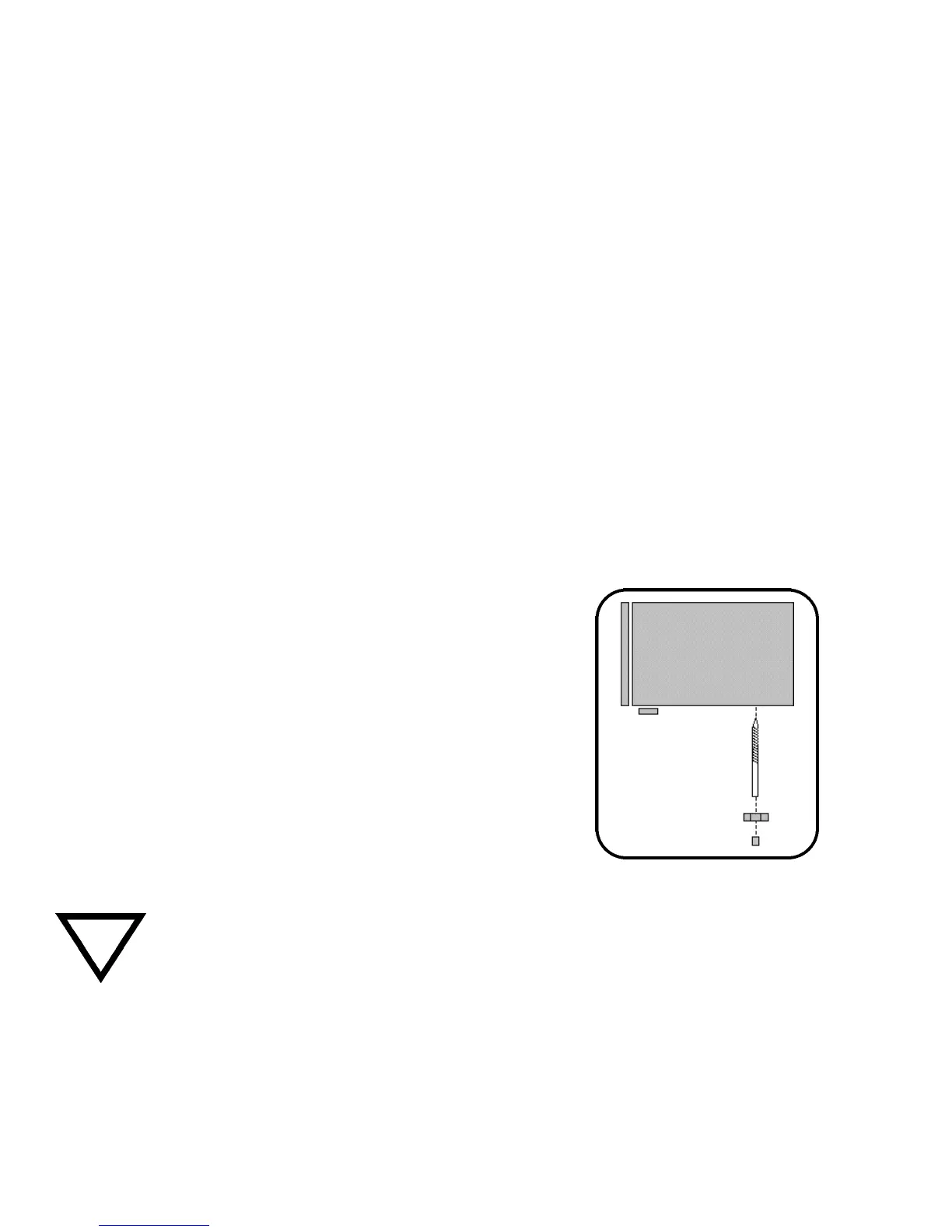

KLF C7
Cabinet
Self Stick
Rubber Foot
Threaded
Spike
Jamb Nut
Small Vinyl Cap
Figure 2
