Klipsch R-10B Reference

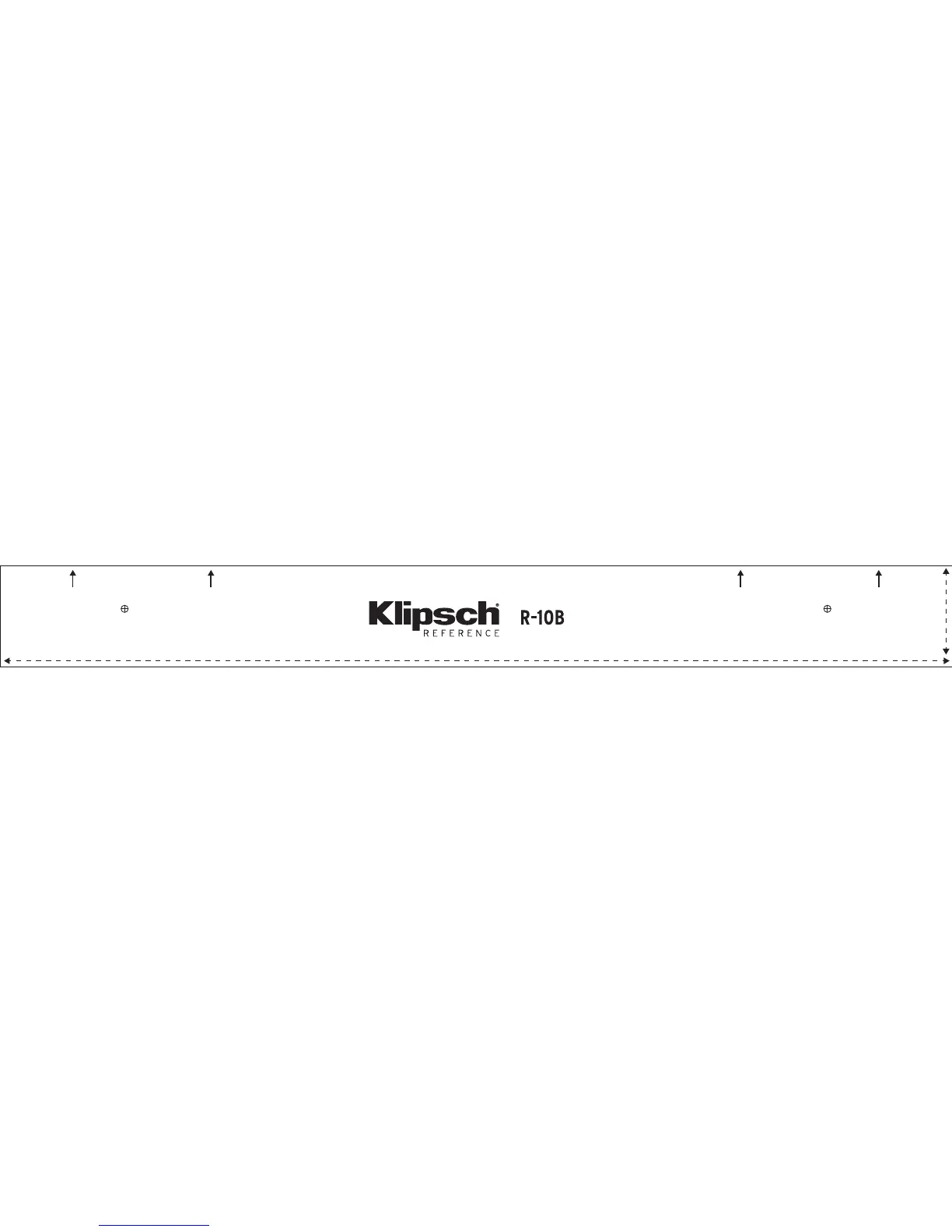

WALL MOUNT TEMPLATE
MAKE SURE TEMPLATE IS LEVEL BEFORE DRILLING PILOT HOLES!
SPEAKER WILL REST 3/8" (9.5mm) DOWN FROM WHERE HOLES ARE DRILLED
Total speaker width 40" (1015.8mm)
Total speaker height 4.25” (107.6mm)
Leave at least 1" (25.4mm) of space above speakerLeave at least 1" (25.4mm) of space above speaker
Pilot
Hole
Pilot
Hole

Klipsch R-10B Specifications

General

Frequency Response	27Hz - 20kHz
Bluetooth	Yes
Channels	2.1
Max Acoustic Output	110 dB
Enclosure Type	Bass-reflex via rear-firing port
Finish	Black
Inputs	Optical
Total System Power	250W
Tweeter	2 x .75” (19mm) soft dome tweeters mated to dual 90° x 90° Tractrix horns
