Klipsch RSB-3 User Manual

5

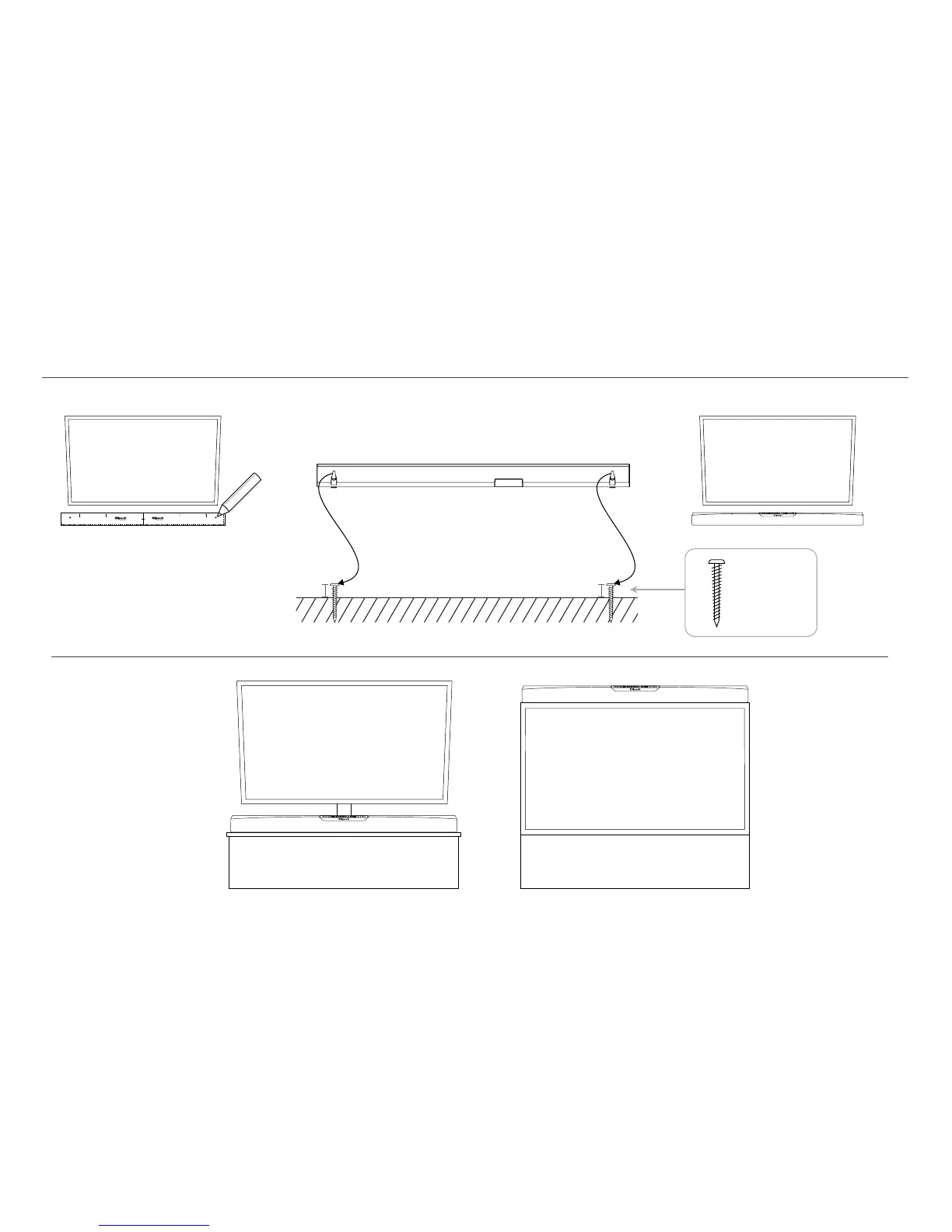

SOUND BAR PLACEMENT
MAKE SURE TEMPLATE IS LEVEL BEFORE DRILLING PILOT HOLES!
Total width 36" (914.4mm)
Leave at least 1" (25.4mm) of space above speaker
Leave at least 1" (25.4mm) of space above speaker
Pilot
Hole
Pilot
Hole
WALL MOUNT TEMPLATE
RSB-3
WALL MOUNT TEMPLATE
RSB-3
CENTER OF BAR
Total height 2.72” (69.08mm)
SPEAKER WILL REST 3/8" (9.5mm) DOWN FROM WHERE HOLES ARE DRILLED
No 12 PAN HEAD/
M6 PAN HEAD
x2
ANALOG DIGITAL SUR DIALOG
ANALOG DIGITAL SUR DIALOG
ANALOG DIGITAL SUR DIALOG
.25” (6.35mm) .25” (6.35mm)
TV
POSITIONNEMENT DE LA BARRE DE SON • UBICACIÓN DE LA BARRA DE SONIDO • SOUNDBAR-PLATZIERUNG • COLLOCAZIONE DEL SOUNDBAR • POSIÇÃO DA BARRA SONORA • 条形音箱布置 •
MAKE SURE TEMPLATE IS LEVEL BEFORE DRILLING PILOT HOLES!
Total width 36" (914.4mm)
Leave at least 1" (25.4mm) of space above speaker
Leave at least 1" (25.4mm) of space above speaker
Pilot
Hole
Pilot
Hole
WALL MOUNT TEMPLATE
RSB-3
WALL MOUNT TEMPLATE
RSB-3
CENTER OF BAR
Total height 2.72” (69.08mm)
SPEAKER WILL REST 3/8" (9.5mm) DOWN FROM WHERE HOLES ARE DRILLED
No 12 PAN HEAD/
M6 PAN HEAD
x2
ANALOG DIGITAL SUR DIALOG
ANALOG DIGITAL SUR DIALOG
ANALOG DIGITAL SUR DIALOG
TV
TV
TV


Klipsch RSB-3 Specifications

General

Audio Channels	2.0
Surround Sound	dolby digital
RMS Power	56 watts
Maximum Frequency Response	18 kilohertz
Minimum Frequency Response	55 hertz
Inputs	analog audio
Outputs	usb type a
USB Ports	1
Bluetooth	yes
Wireless Connectivity	bluetooth
Optical Audio Inputs	1
Remote Control	yes

Weight and Dimensions

Depth	4 inches
Height	2.6 inches
Width	36 inches
Net Weight	7.1 pounds
