Klipsch SUB-10 User Manual

3502 Woodview Trace, Suite 200
Indianapolis, Indiana 46268 USA
1
.
800
.
KLIPSCH
•
www.klipsch.com

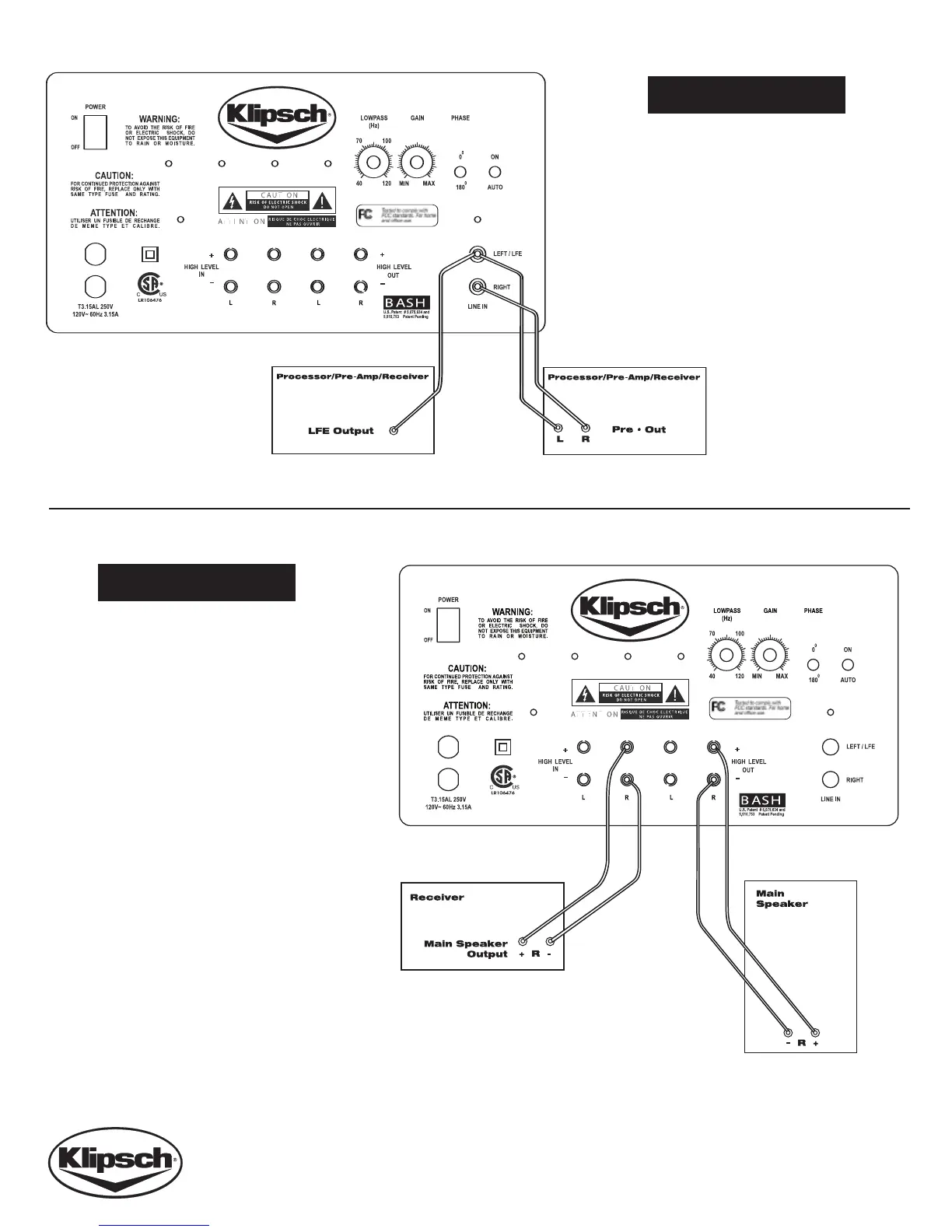

LOW LEVEL CONNECTIONS
FIGURE 3
HIGH LEVEL CONNECTIONS
FIGURE 4
Left & Right pre-outs on
Processor/Pre-Amp/Receiver
connected to Left & Right
line inputs on subwoofer amplifier
LFE Output on Processor/
Pre-Amp/Receiver connected
to LFE input on subwoofer
amplifier
[OR]
Main speaker outputs on receiver
connected to high level inputs on
subwoofer amplifier (Right is shown,
repeat for Left)
High level outputs on subwoofer
amplifier connected to main
speaker inputs (Right is shown,
repeat for Left)

Klipsch SUB-10 Specifications

General

Subwoofer frequency range	28 - 120 Hz
Subwoofer driver diameter (imperial)	10 \
Line-out	Yes
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Product color	Black

Weight and Dimensions

Subwoofer depth	479 mm
Subwoofer width	356 mm
Subwoofer height	432 mm
Subwoofer weight	16800 g
