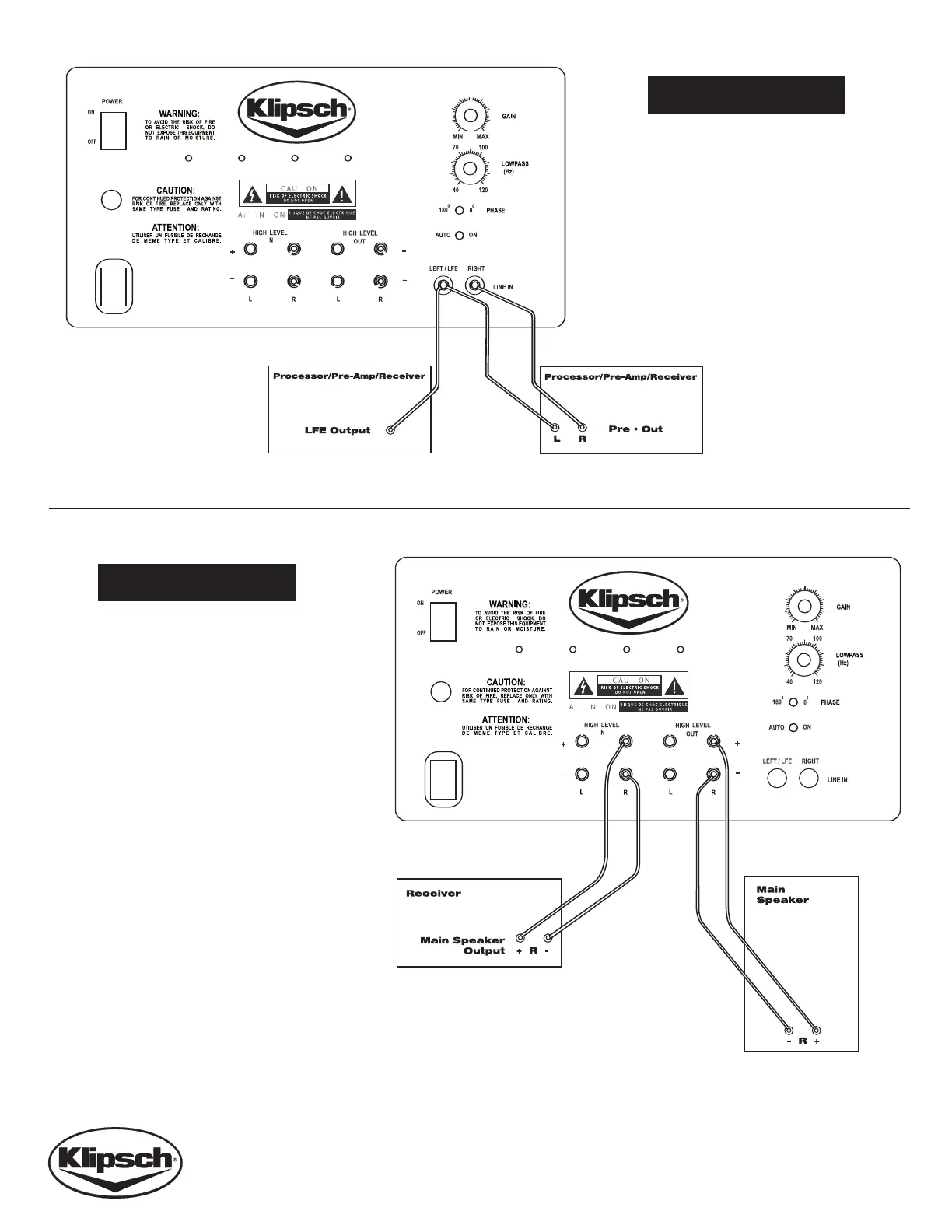

LOW LEVEL CONNECTIONS
FIGURE 3
HIGH LEVEL CONNECTIONS
FIGURE 4
Left & Right pre-outs on
Processor/Pre-Amp/Receiver
connected to Left & Right
line inputs on subwoofer amplifier
LFE Output on Processor/
Pre-Amp/Receiver connected
to LFE input on subwoofer
amplifier
[OR]
Main speaker outputs on receiver
connected to high level inputs on
subwoofer amplifier (Right is shown,
repeat for Left)
High level outputs on subwoofer
amplifier connected to main
speaker inputs (Right is shown,
repeat for Left)
