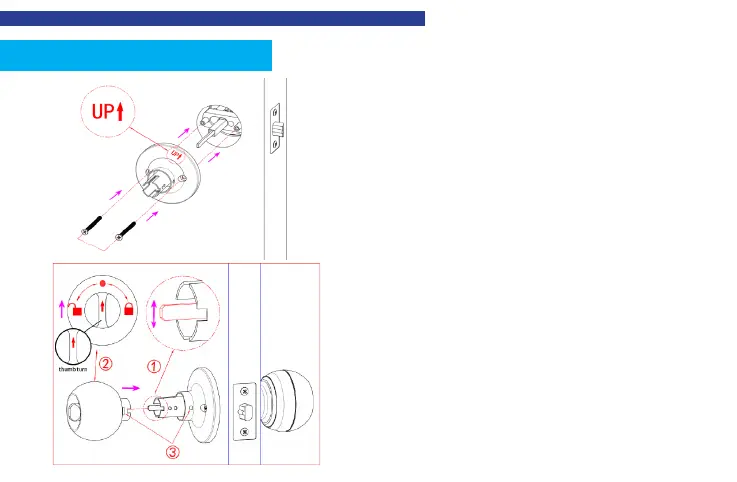

Install the Interior Knob
The
〝
up
〞
mark above the rosette should face
upward.
Install the rosette onto the door with the rod bolts
aligning the circular holes and spindle aligning
the square-shaped (center)hole. Then insert the
Screw B into the circular holes and tighten them to
secure the rosette.
Firstly, make sure the spindle bar is in the vertical
position as shown left. Secondly, rotate the thumb
turn to the circular mark. Lastly, insert the Interior
Knob into the rosette by aligning the hole of
Interior Knob with the spindle bar and aligning the
rectangular hole at the edge of the interior knob
with the circular hole at the edge of the rosette.
