DIMENSION SHEET

KLM 2M-14C

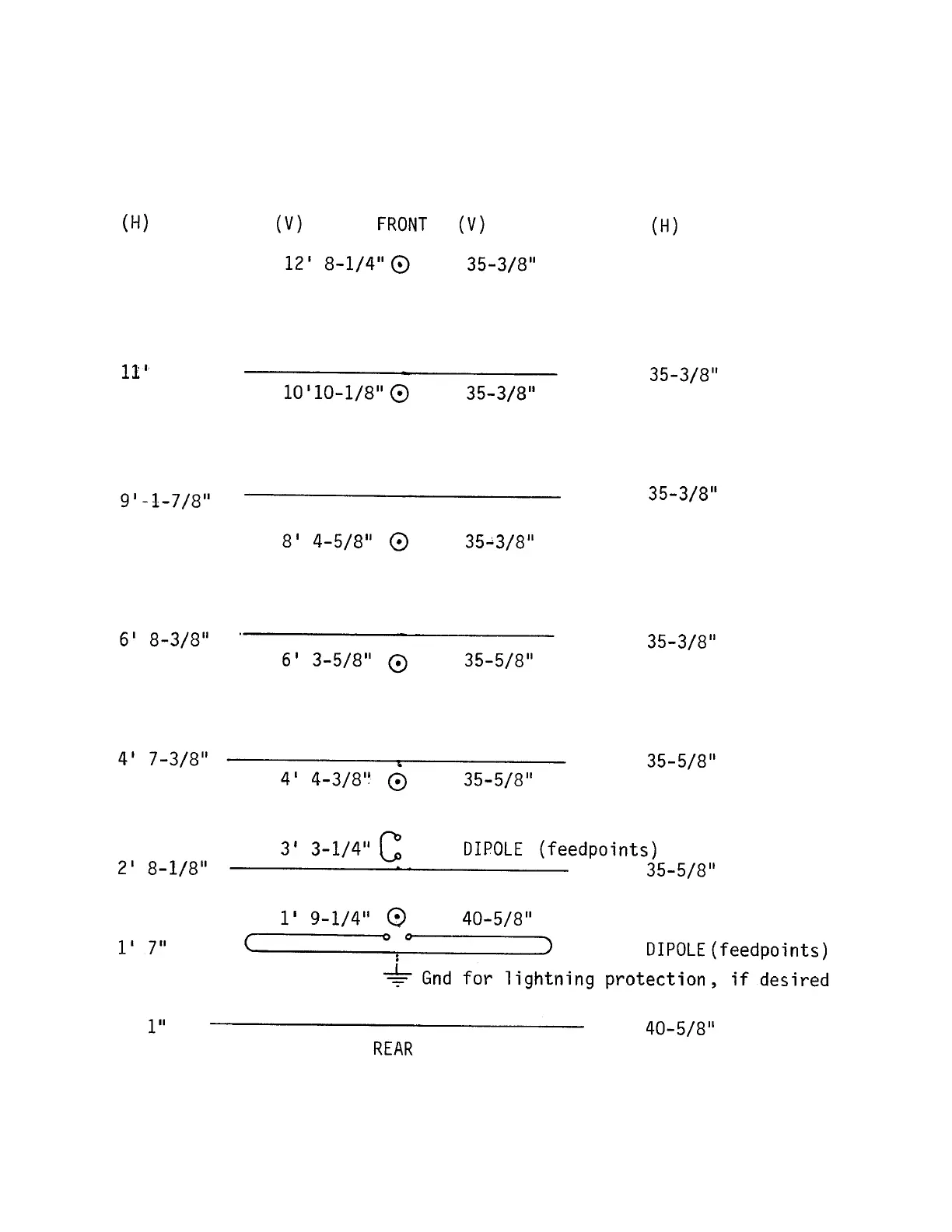

ELEMENT SPACING - FEET/INCHES FROM ELEMENT LENGTHS IN INCHES:

BOOM REAR:

X X = FEEDPOINTS. For 50 ohm feedline, each set of feedpoints has an

RG-142 4:1 Coax Balun rated at 2 KW PEP.
