If there are other heating or suction appliances in the room, the air intakes must guarantee the necessary volume of air for the correct operation of all devices.
Protect all structures that could catch fire from hot radiation from the fire.
In the room where the pellet appliance is installed, only appliances operating in a sealed manner with respect to the room may pre-exist or be installed (e.g. type C
gas appliances, as defined by UNI 7129) or which in any case do not depress the room with respect to the external environment.
Any extra intervention by the Authorized Technical Assistance Center, in which it is necessary to disconnect the appliance from the system, will not be
recognized under the warranty as indicated in the chapter “Conventional Warranty Conditions”.
Extraction fans can cause the appliance to malfunction if used in the same room.
External air intake
6
CS.ECN1700.IST-1 / Rev 1.0
During the functioning of the appliance, combustion air is taken from the environment in which it is installed; it is therefore essential that this air is reintegrated
through an external air intake. Failure to make the air intake affects the draft in the flue and therefore the combustion and safety of the appliance.
ITALIAN
It is therefore mandatory to create an external air intake that has a minimum completely free passage of at least 80 cm2 (round hole with a minimum diameter
of 15 cm protected with a special fixed grid with large meshes).
Spaces around and above the appliance
If it is not possible to make the external air intake in the same room where it is installed, this hole can be made in another adjacent room as long as it is permanently
communicating with a transit hole (minimum diameter 15 cm).

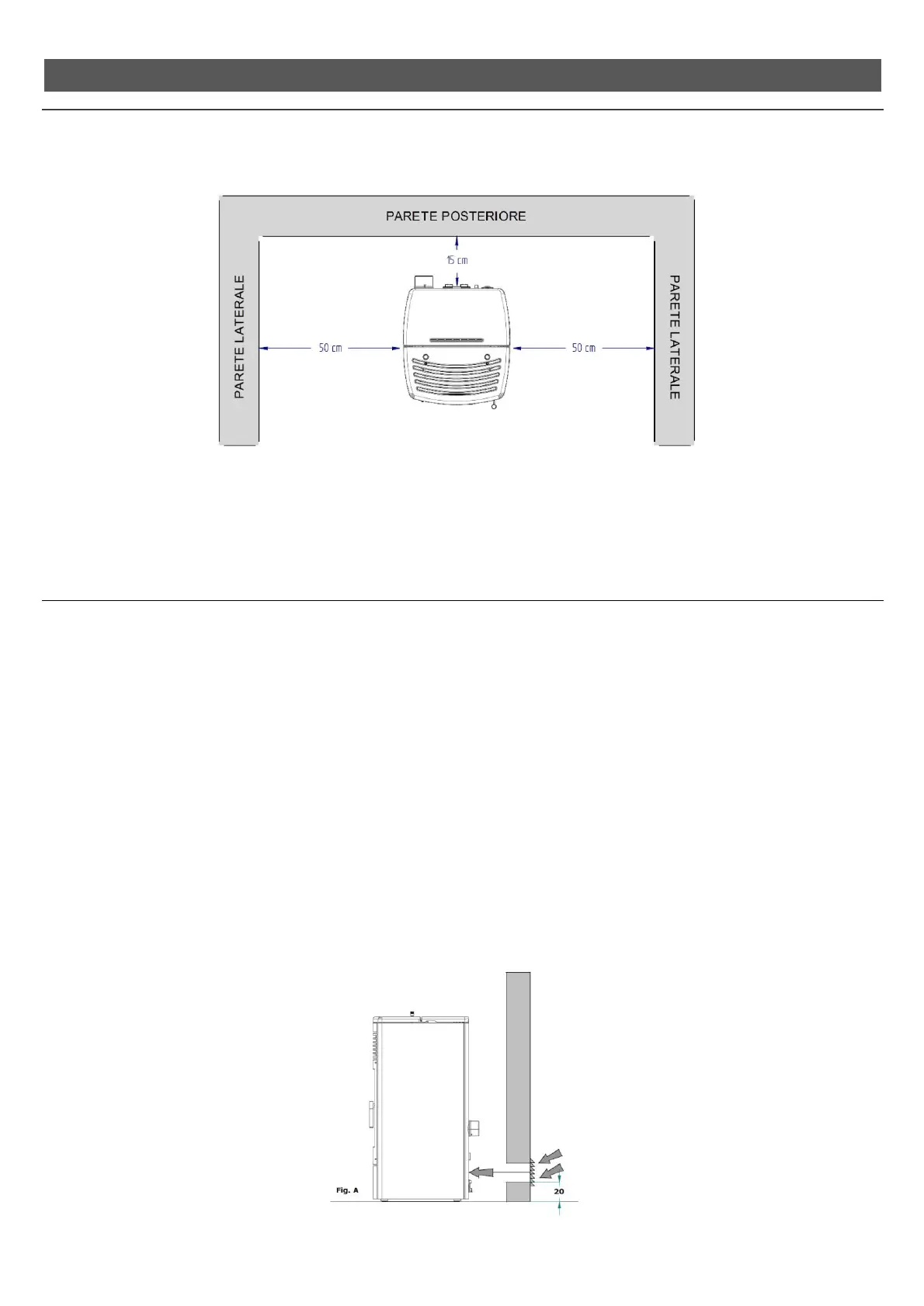

The figure below shows the minimum measurements to be respected when positioning the appliance with respect to walls or furniture that is not easily removable.
The hole must be protected externally with a fixed grid. The protection grid must be checked periodically to verify that it is not obstructed, thus preventing the
passage of air. Therefore, keep the air intakes free from obstructions.
Any shelves or false ceilings mounted above the appliance must be spaced at least 75 cm from the top of the appliance.
The UNI 10683 standard PROHIBITS the withdrawal of combustion air from garages, from warehouses of combustible material or from activities with a fire hazard.
Cabinets and movable objects made of flammable material must be positioned at least 20 cm from the side walls of the appliance; these objects must be moved in
case of maintenance of the same.
