KLS Martin marLED E9i - Plug Connections on Plug Connections on the Control the Control Electronics Electronics



Service ManualService Manual
Operating Lights marLEDOperating Lights marLED
®®
E9 / E9i / E9 / E9i / E15E15
46 46 V V 1.01.0
RD RedRD Red
6.136.13 Plug Connections on the Control ElectronicsPlug Connections on the Control Electronics

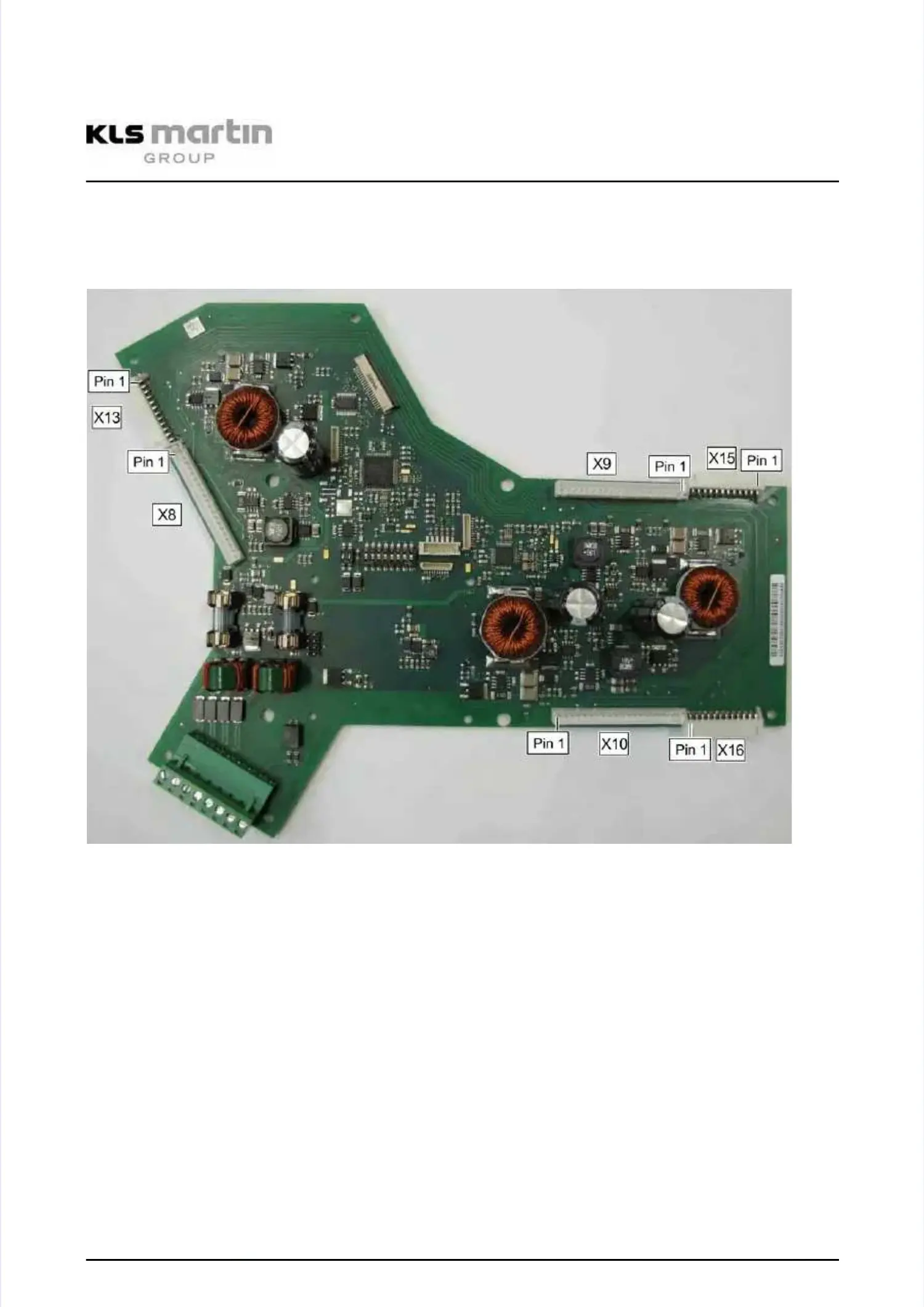

•• When connecting the plug connections, pay attention to the location of pin 1 on the plugsWhen connecting the plug connections, pay attention to the location of pin 1 on the plugs
X8, X9, X10, X13, X15 and X16!X8, X9, X10, X13, X15 and X16!
