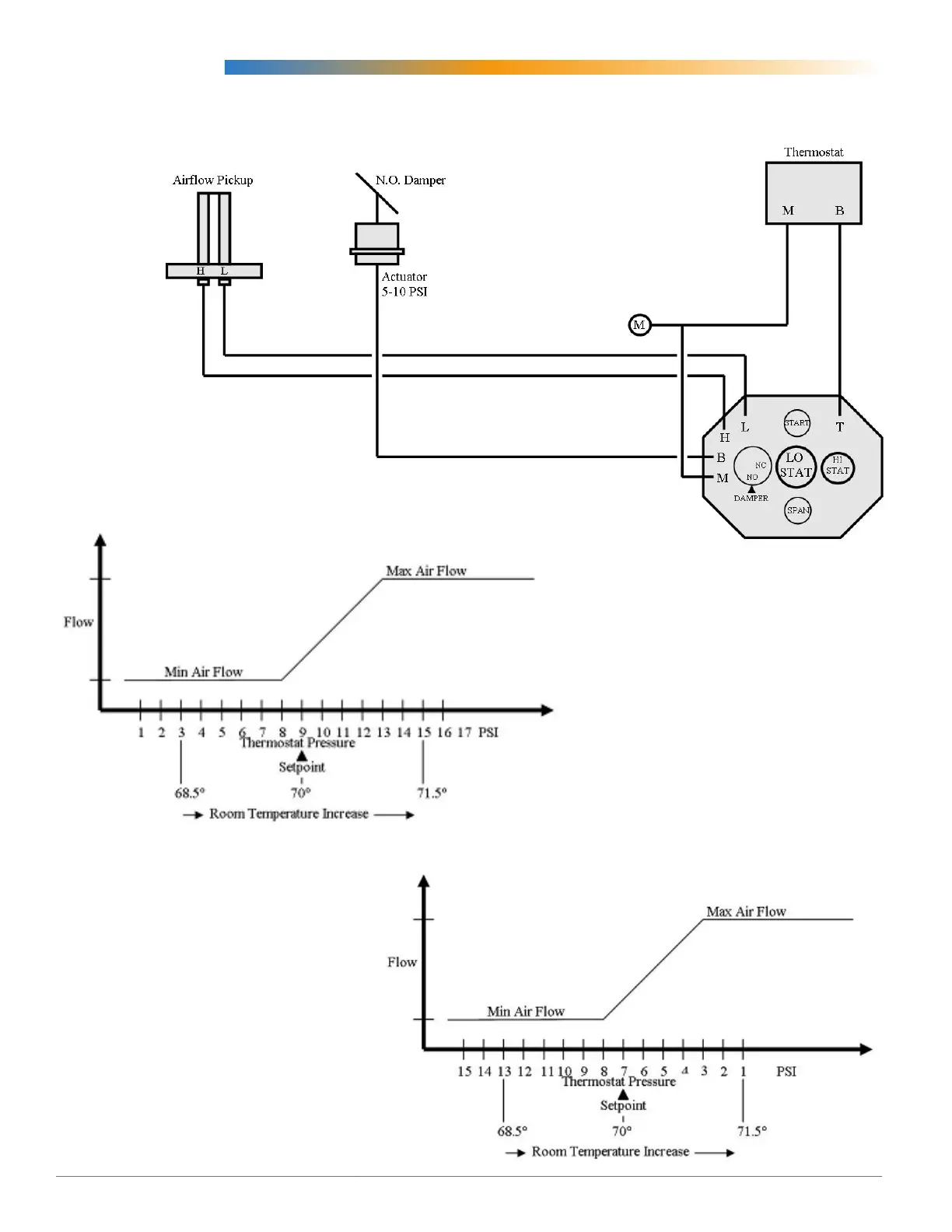

CSC-3000 Series Pneumatic VAV Reset Volume Controllers 10 Applications Guide, Rev G

Applications

DA Thermostat (NO or NC Damper)

RA Thermostat (NO or NC Damper)

Cooling

(Theseinstructionsdonotapplytothe

CSC-3014ortheCSC-3501/3505.)

• LO STAT = Min. Flow

• HI STAT = Max. Flow

• Reset Range = 8 to 13 psi

• LO STAT = Max. Flow

• HI STAT = Min. Flow

• Reset Range = 3 to 8 psi
