KMC Controls MEP-4201 Installation Guide

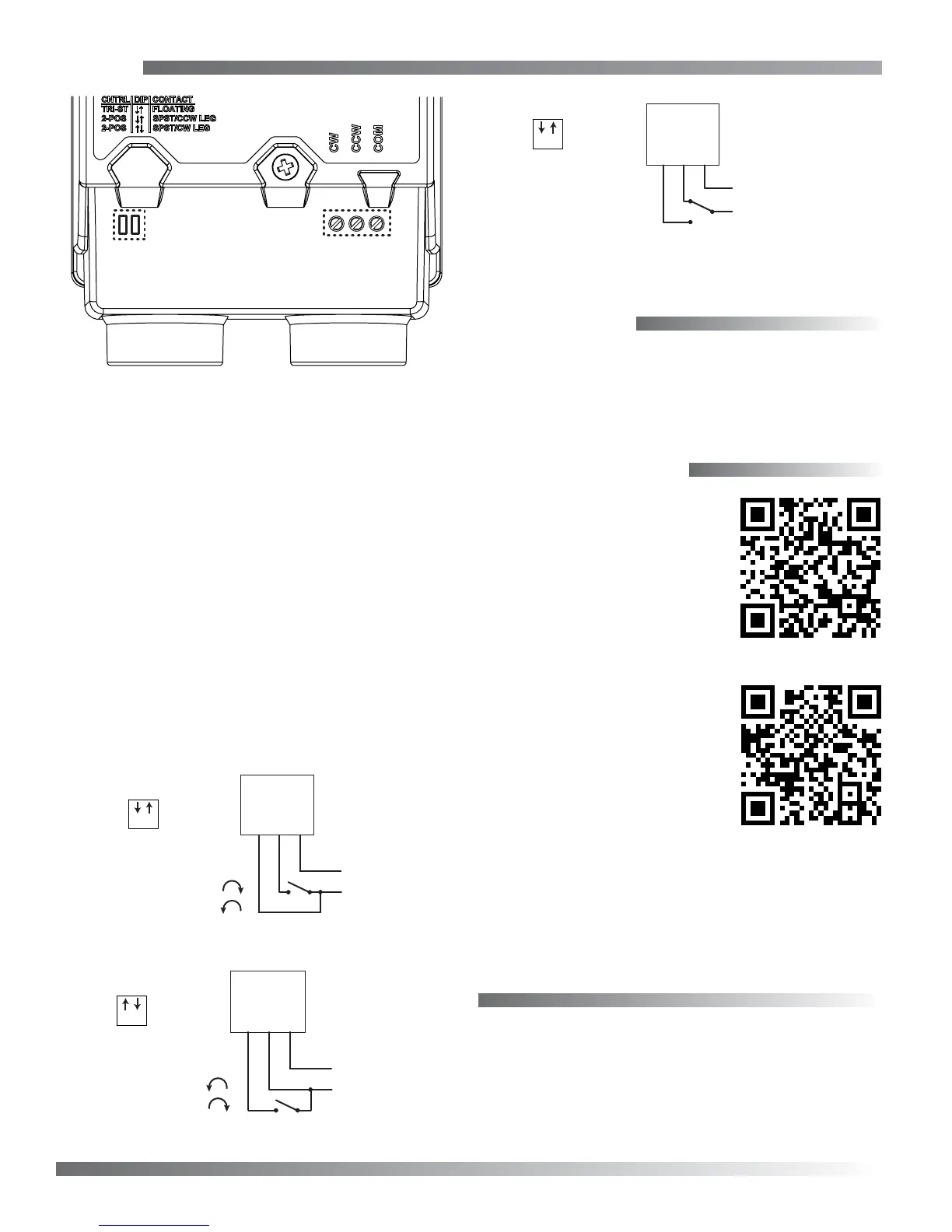

MEP-4201/4501/4901 2 Installation Guide
Power/Signal
Terminal Block
(Under Conduit Fitting)
Selector
Switches
Illustration 5—Tri-State Floating Point Control
Illustration 3—Two-Position Control, CCW Leg
Illustration 4—Two-Position Control, CW Leg
Wiring
To wire the actuator:
1. Loosen the screw on the conduit ing and lift up
to remove the ing.
2. Using a utility knife or drill, cut the red plug
to accept wiring or replace the plug with an
application-specic ing.
NOTE: The red plug (or similar ing) protects
internal components from debris, helping
to ensure long actuator life.
3. Thread wires through the plugged opening and
connect to the terminal block according to the
relevant application. Adjust the selector switch.
See Illustrations 3 through 5.
4. Reinstall the conduit ing and tighten the screw.
Illustration 2—Wiring Compartment
© 2013 KMC Controls, Inc. 039-019-02B
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com
info@kmccontrols.com
Maintenance
No routine maintenance is required. Careful
installation will ensure long term reliability and
performance.
More Information
For models, specications,
and additional information,
see the MEP-4201/4501/4901
Data Sheet on the KMC
web site.
For accessories, trouble-
shooting, torque selection,
links to sample applica-
tions, and other informa-
tion, see the MEP-4xxx
Applications Guide on the
KMC web site.
–
Power Supply
24 VAC/VDC
CW CCW
T
COM
~/+
–
Switch Position
1 2
–
Power Supply
24 VAC/VDC
Contact Position:
Closed = CCW Rotation
CW CCW
T
COM
~/+
Open = CW Rotation
Switch Position
1 2
–
Power Supply
24 VAC/VDC
Contact Position:
Closed = CW Rotation
CW CCW
T
COM
~/+
Open = CCW Rotation
Switch Position
1 2
