Semi-Micro Osmometer K-7400S instructions, V3700
Using the EuroOsmo 7400 Software 32
10.5 Sample list
This list is used to name the samples and codes. The measurement
results will be filled automatically and can be saved. Using the scroll bar
at the bottom, a <Comments> column becomes accessible for detailed
informa tion.
The samples will be measured in the order of the list and the results are
filled in and saved.

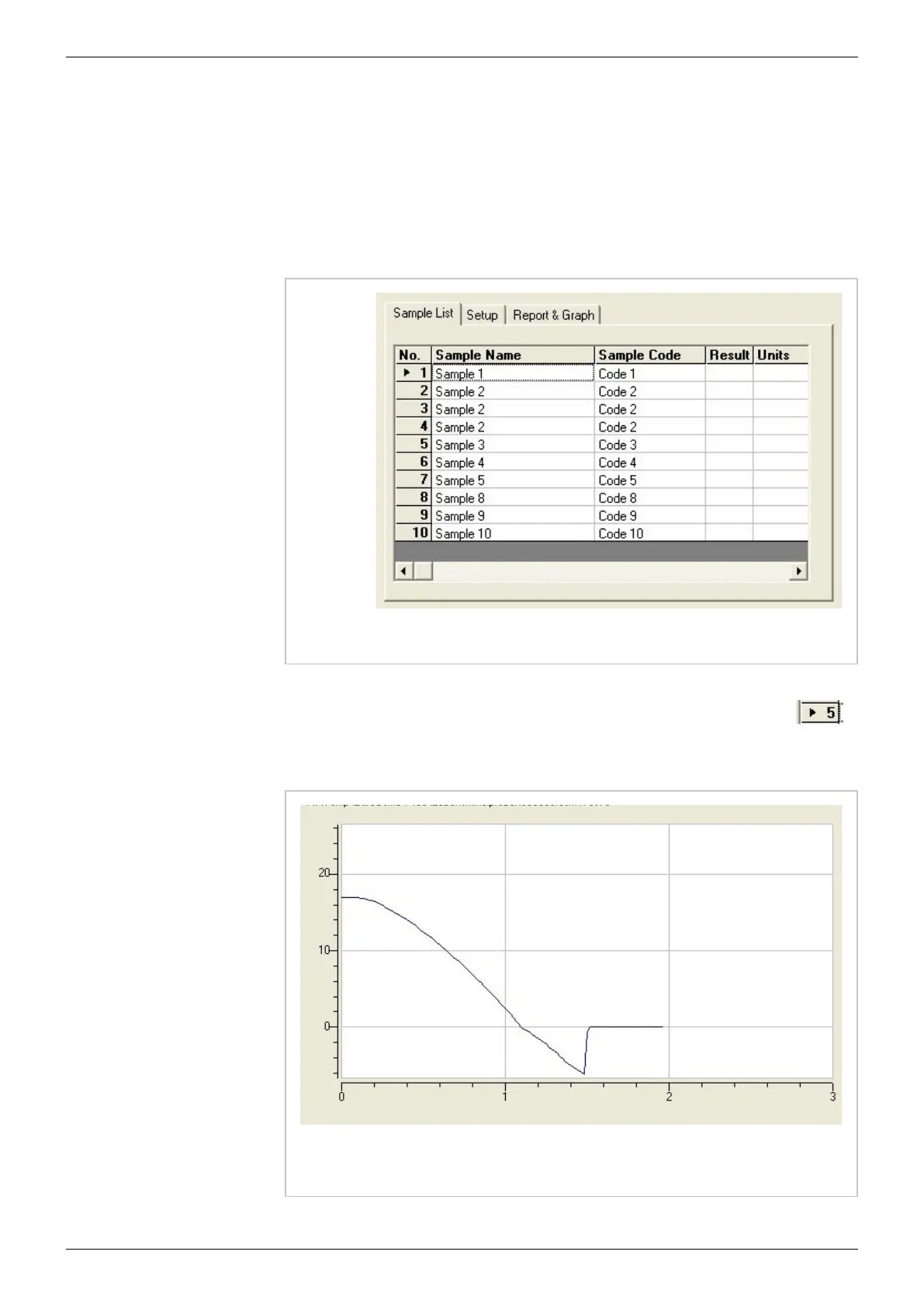

Fig. 12: New sample list
Double clicking on <No.> of an already measured sample dis-
plays the corresponding temperature sequence. The path of
the already stored sample list is shown on top of the graph.
Fig. 13: Measurement window with the temperature sequence of a
run
