DESiGN aND fuNCTiON
5 Status: 17.05.22
3 Design and function
3.1 Design
5
10
15
20
0,03 – 10
< 100,25 - 4 /
2 x 2,5
2
1 43
6 5
987

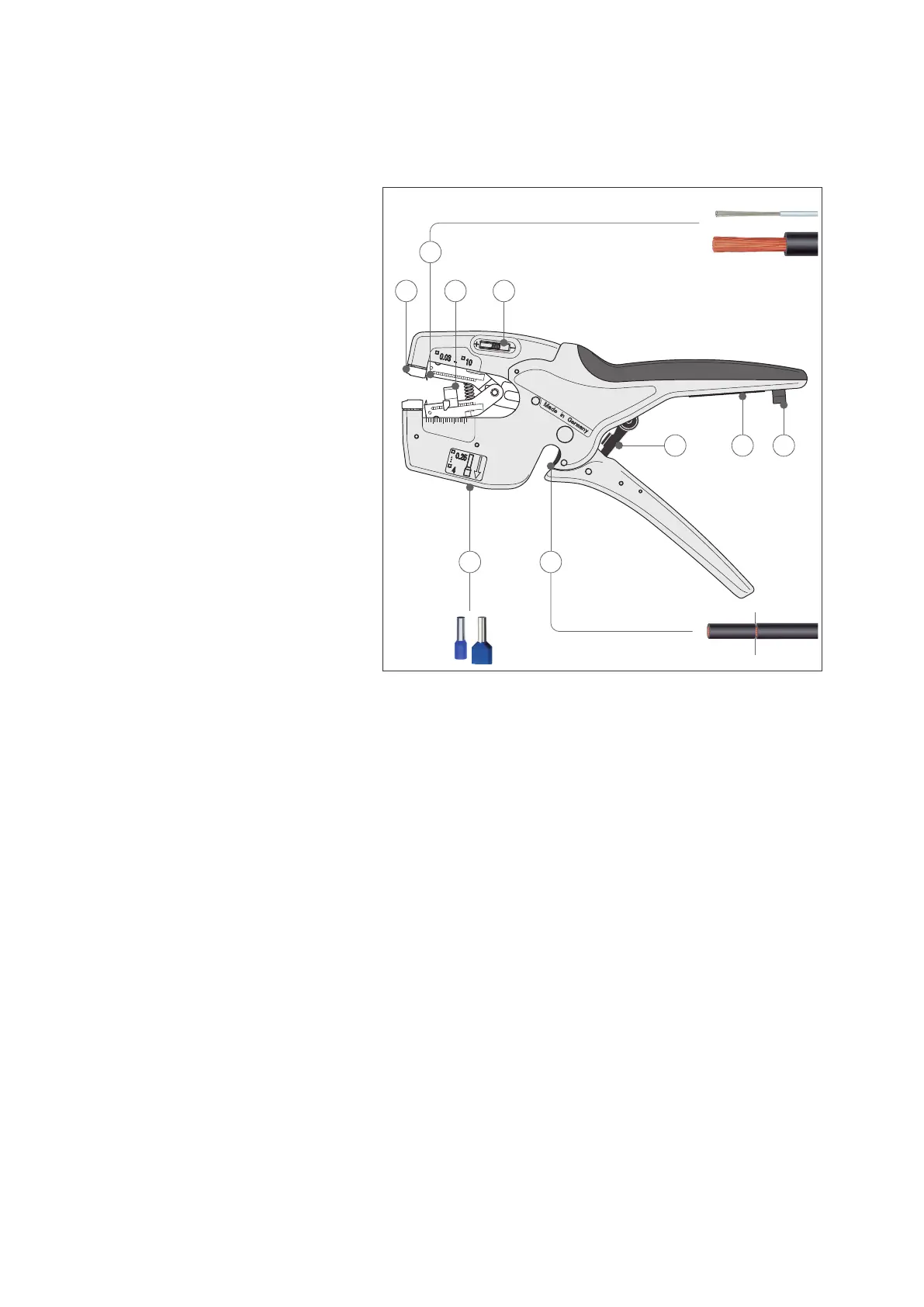

Structure of KNIPEX NexStrip
®
1 Clamping jaws for cables/conductors
2 Knife for stripping
3 Adjustable feed stop (3.0 to 17.0 mm)
4 Fine adjustment to adjust the knife’s cutting depth for special materials or
temperature conditions (zero position in the middle)
5 Wire cutter for Cu and Al conductors (max. 10.0 mm²)
6 Crimping point for wire ferrules (square crimp with metal crimping jaws)
Single wire ferrules: 0.25 – 4.0 mm²
Twin wire ferrules: 2 x 2.5 mm²
7 Automatic lock with emergency release
8 Labelling eld for customisation (on the inside of the handle)
9 Tether attachment point for attaching a fall protection device
3.2 Function
The KNIPEX NexStrip
®
is used for cutting and stripping single, multi and
ne-stranded conductors.
Loose single and Twin wire ferrules are crimped using a square crimp.
