OpEraTiON
6 Status: 17.05.22
4 Operation

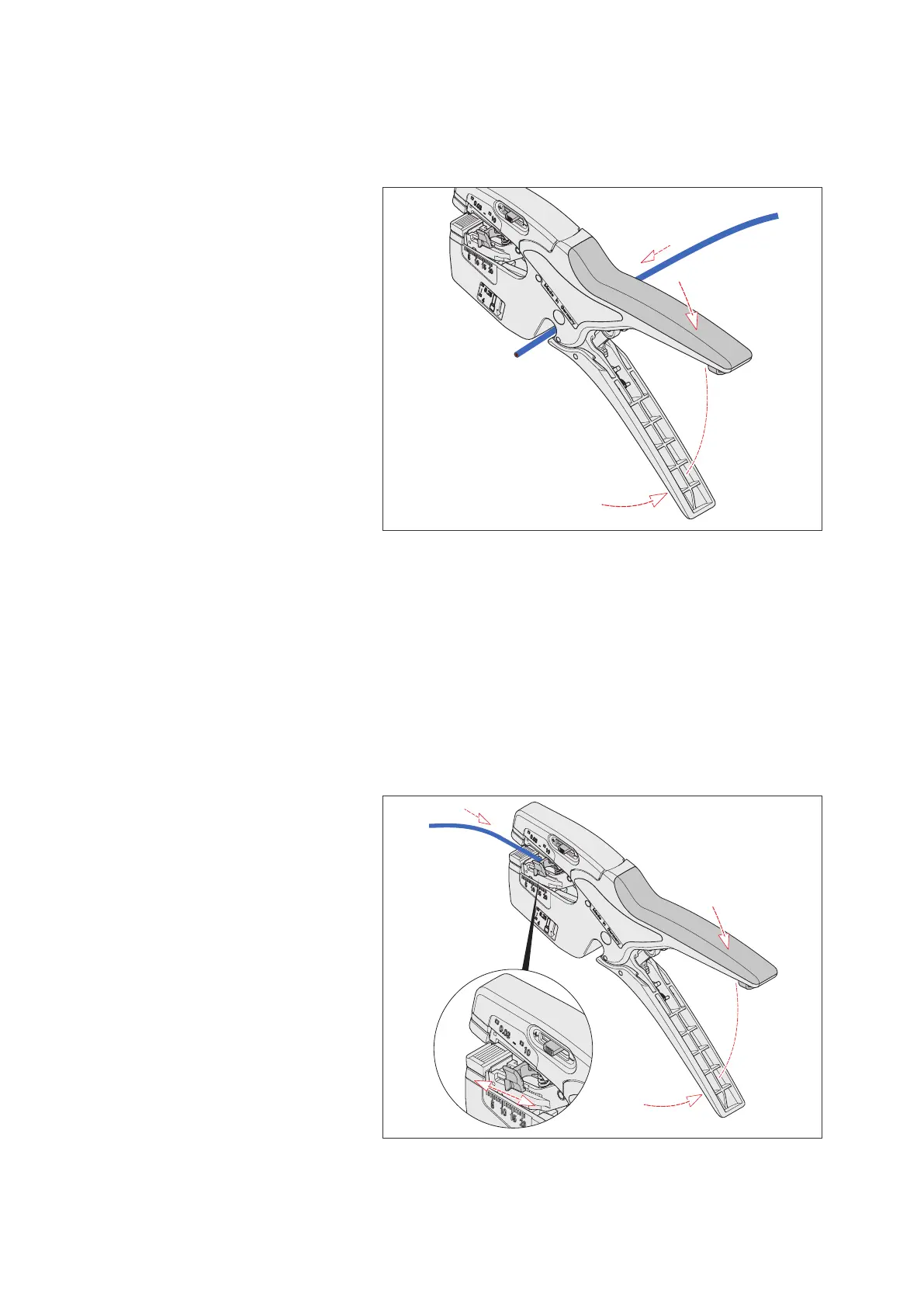

4.1 Cutting cables
1.
< 10 mm
2
2.
Cutting cables
1. Insert the end of the cable to be cut between the two blades of the
wire cutter.
2. Firmly press the two handles together.
4.2 Stripping cables (with single, multi and ne-stranded
conductors)
» Set the feed stop to the required length (3 to 17 mm).
» Insert the end of the cable into the holder.
» Firmly press the two handles together. The automatic lock is not released
again until the handles have been fully pressed together.
1.
0,03 - 10 mm
2
3.
Stripping single conductors
» Pull the stripped cable out of the holder.
Note:
When the feed stop is removed, the
cable can be stripped to a maximum
length of 20 mm.
