10 JTAG connection
10.1 JTAG on Pluto
JTAG is not available on Pluto.
10.2 JTAG on Pluto-II
The Pluto-II's FPGA JTAG signals are only accessible at the bottom of the board.

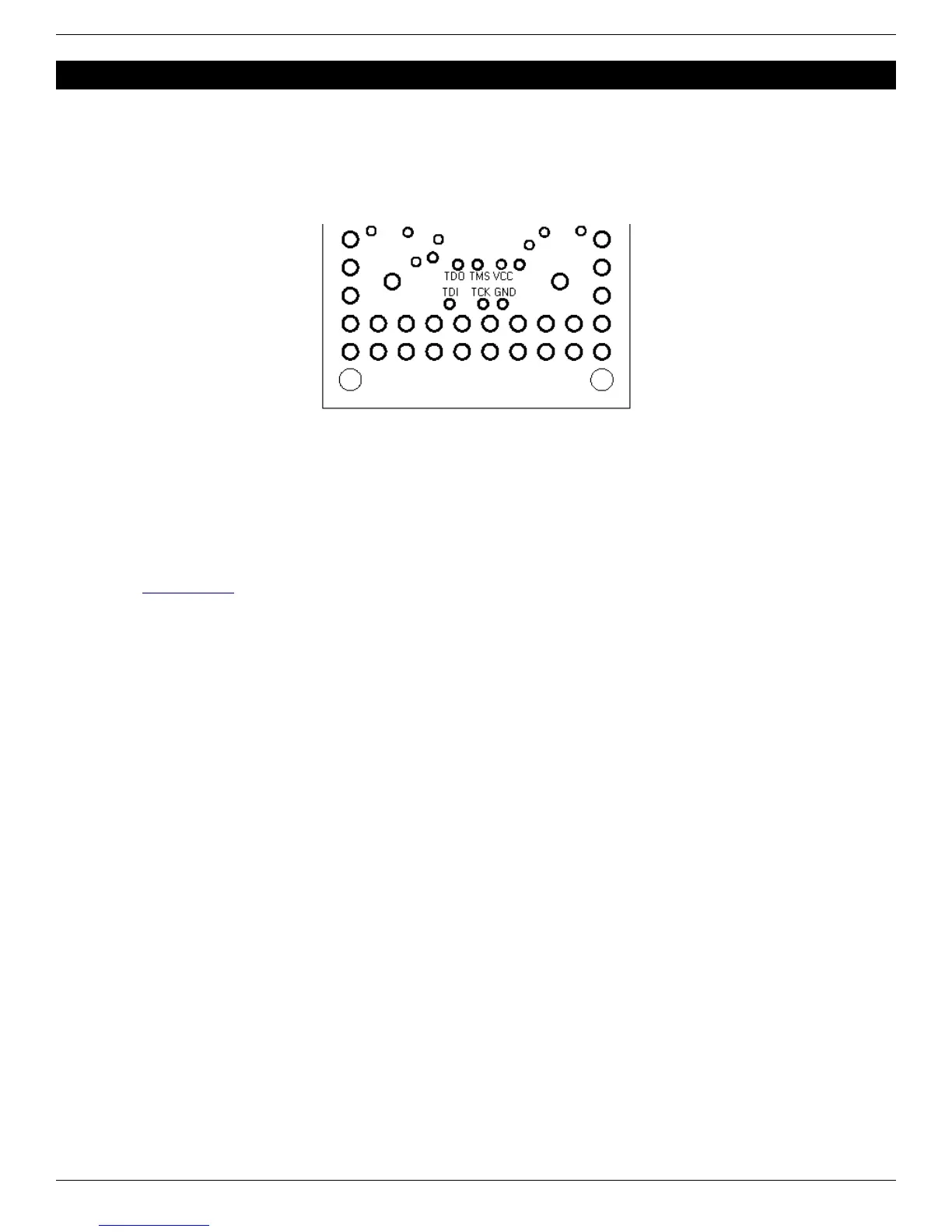

To use JTAG, get a JTAG cable (like a ByteBlaster or USB-Blaster), and solder the JTAG signals to the pads shown
above.
10.3 JTAG on Pluto-IIx/HDMI
The Pluto-IIx JTAG signals are accessible on pin headers next to the FPGA.
10.4 JTAG on Pluto-3
Pluto-3 has the regular Altera-style 10 pins header. A matching shrouded connector must be added to the board, like
KNJN items 2450 or 2451, so that an Altera or compatible JTAG cable can easily be used.
FPGA RS-232 development boards Page 15
