» User Manual - TIM G2 Trailer Information Module

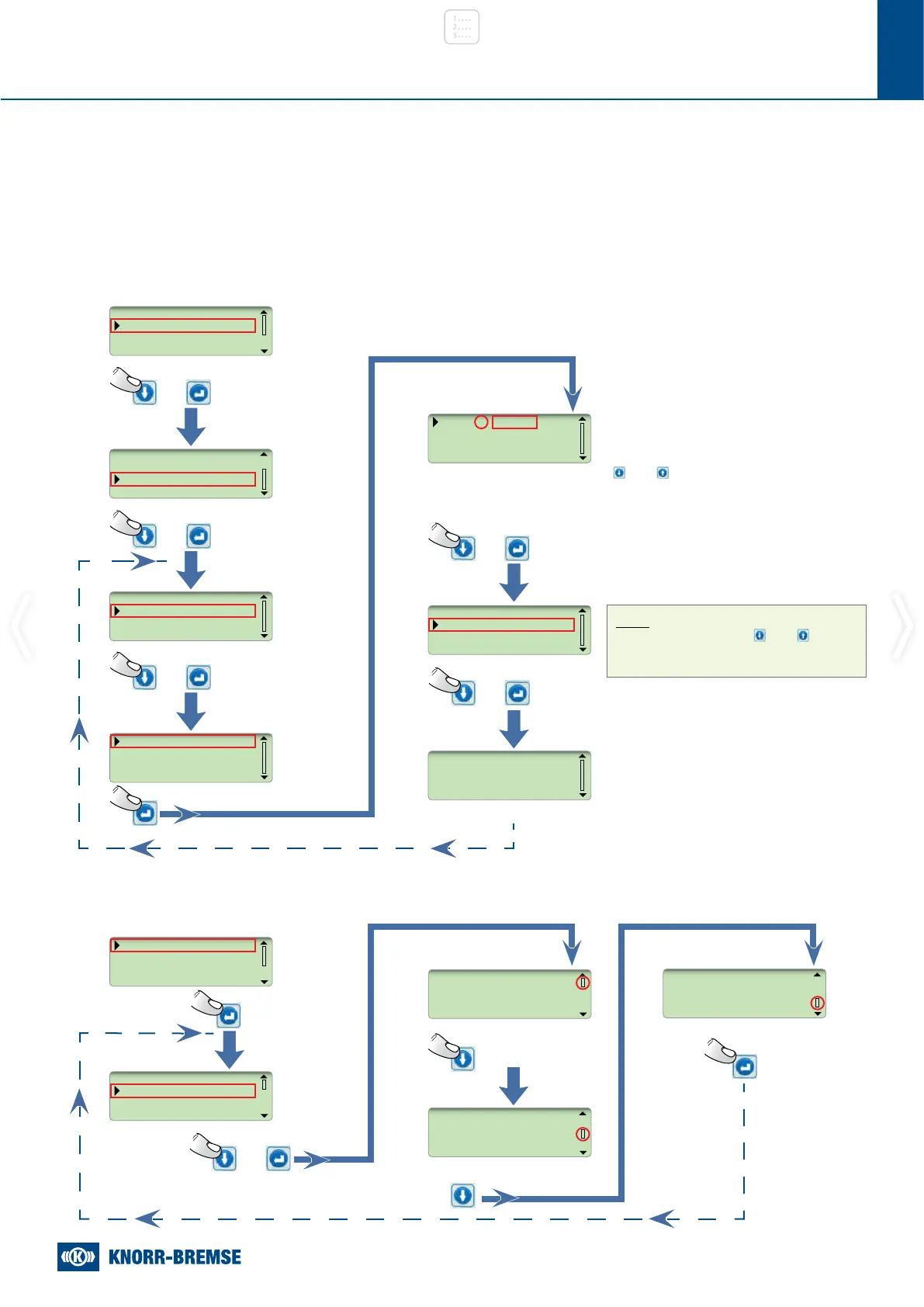

3 EXAMPLES
Setting next service distance to 10,000 km
Display current fault status
END
END
Main
Menu
Main
Menu
Overview
of fault
*
Indicates cursor buttons and are now used to change km
values
Srv Date: 27-09-99
Srv Km: 20000km
Set Next Service
Exit
Date Based
Distance Based
Exit
Srv Km: 0km
Save & Exit
Exit
Srv Km: 10000 km
Save & Exit
Exit
Next service distance has been
succesfully set in ECU.
Srv Km: 10000km
Save & Exit
Exit
Stored Faults
Distance & Serv.
Operating Info
System Info
Stored Faults
Distance & Serv.
Operating Info
System Info
Active Faults:
S-C O/C.
S-D O/C.
Module Error
Note:
*
Inactive, buttons and revert
to normal function
*
2x = 10000 km
Scroll
Scroll
S-C Open circuit or Shorted to Battery
DTC:
000D00
Occurrence count: 4
First detection: 0km
2008-03-15 19:43.44
Last detection: 0km
2008-03-31 10:11.47
Fault
detail
