MEDVAULT
®
INSTALLATION GUIDE

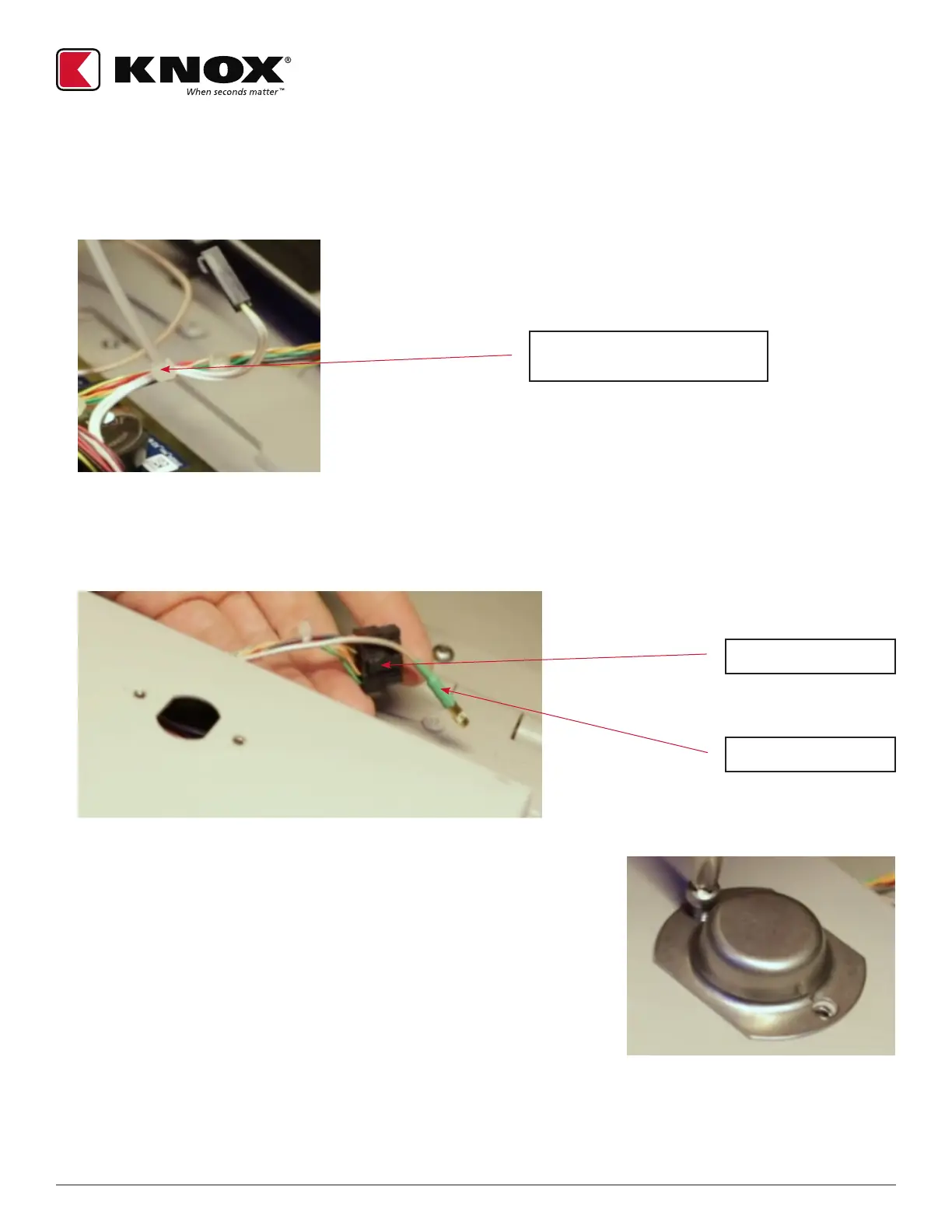

Step 16 Secure Reset Switch wire
• The MedVault 2.5 is equipped with an electronic reset. The reset switch wire will not be reconnected.
Using the cable tie supplied in the retrofit kit, secure the white reset switch wire as shown
Step #17 Move Antenna cable fasten back plate
• Move the coax antenna cable and power connector into the service panel area
• Using the original 9 screws, reinstall the back plate removed in Step 5
Step #18 Reinstall Tech Lock
• Using the Tech key, reinstall the Tech Lock
Step #19 Tech Lock Cover
• Using the original two (2) screws, reinstall the tech lock cover
Step #20 Reconnect power and fasten back plate
• Reconnect the power and antenna wires
• Reinstall the back plate from Step 1 with the original two (2) screws
Power
Antenna Wire
CIRCUIT BOARD REPLACEMENT IS COMPLETE.
YOU MAY NOW REAPPLY POWER TO THE MEDVAULT.
Cable tie the reset
switch wire
