MEDVAULT
®
INSTALLATION GUIDE

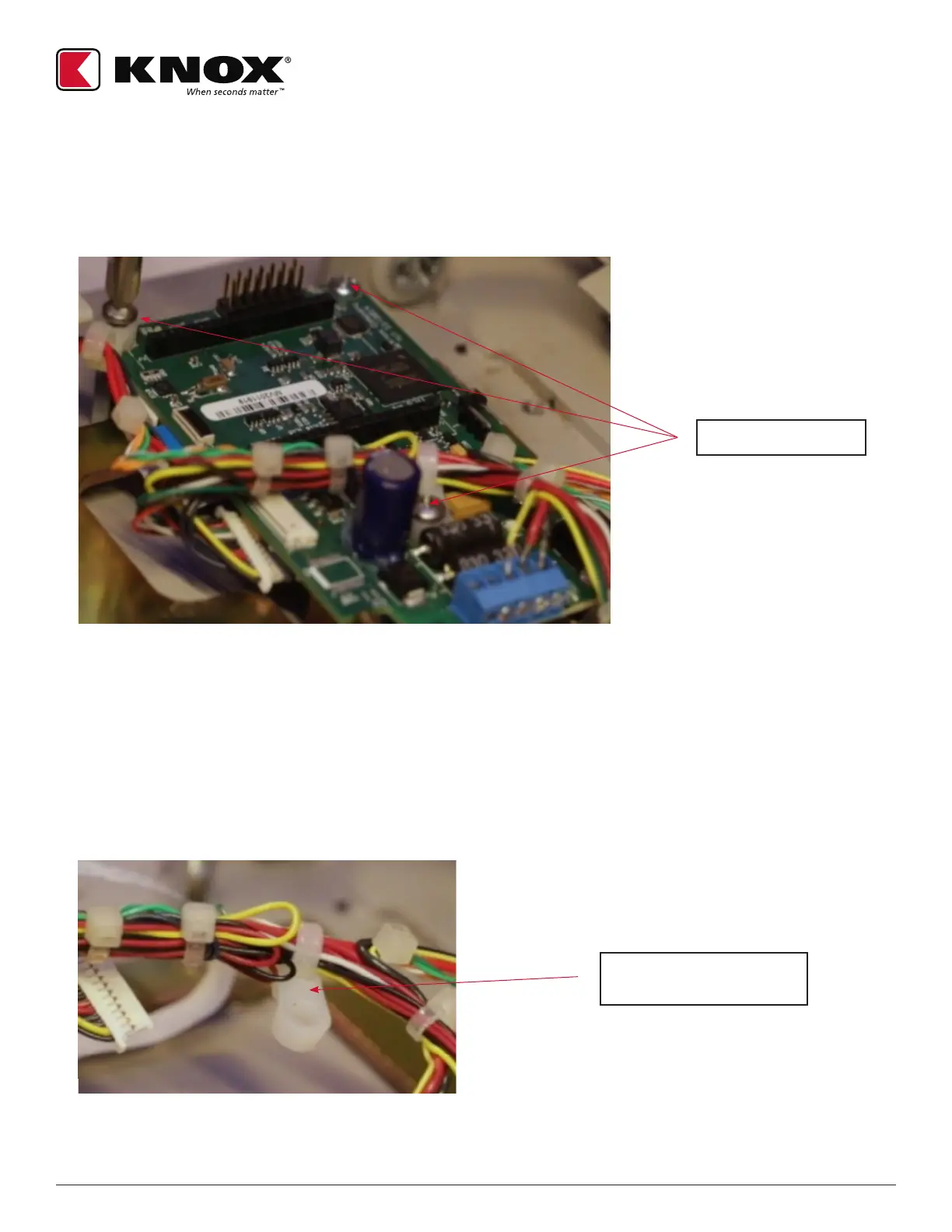

Step #9 Remove screws from circuit board
• Use a #2 Phillips screwdriver to remove the screws from the top of the circuit board
• SAVE the screws for installation of the new board
Step #10 Unplug remaining connections on top of board
• Remove the ethernet connection from the board (if any)
• Remove the circuit board from the MedVault and discard
Step #11 Remove the Cable Tie
• Use a fine point wire cutter to snip the cable tie eyelet holding the wiring bundle taking care to prevent
cutting or damage to the wires
Screws
Snip and Remove
Cable Tie Eyelet
YOU ARE NOW READY TO INSTALL THE MEDVAULT 2.5 CIRCUIT BOARD
To Next Page
