Presence detector Mini

6 Information for electrically skilled persons

6.1 Fitting and electrical connection

Motion detection

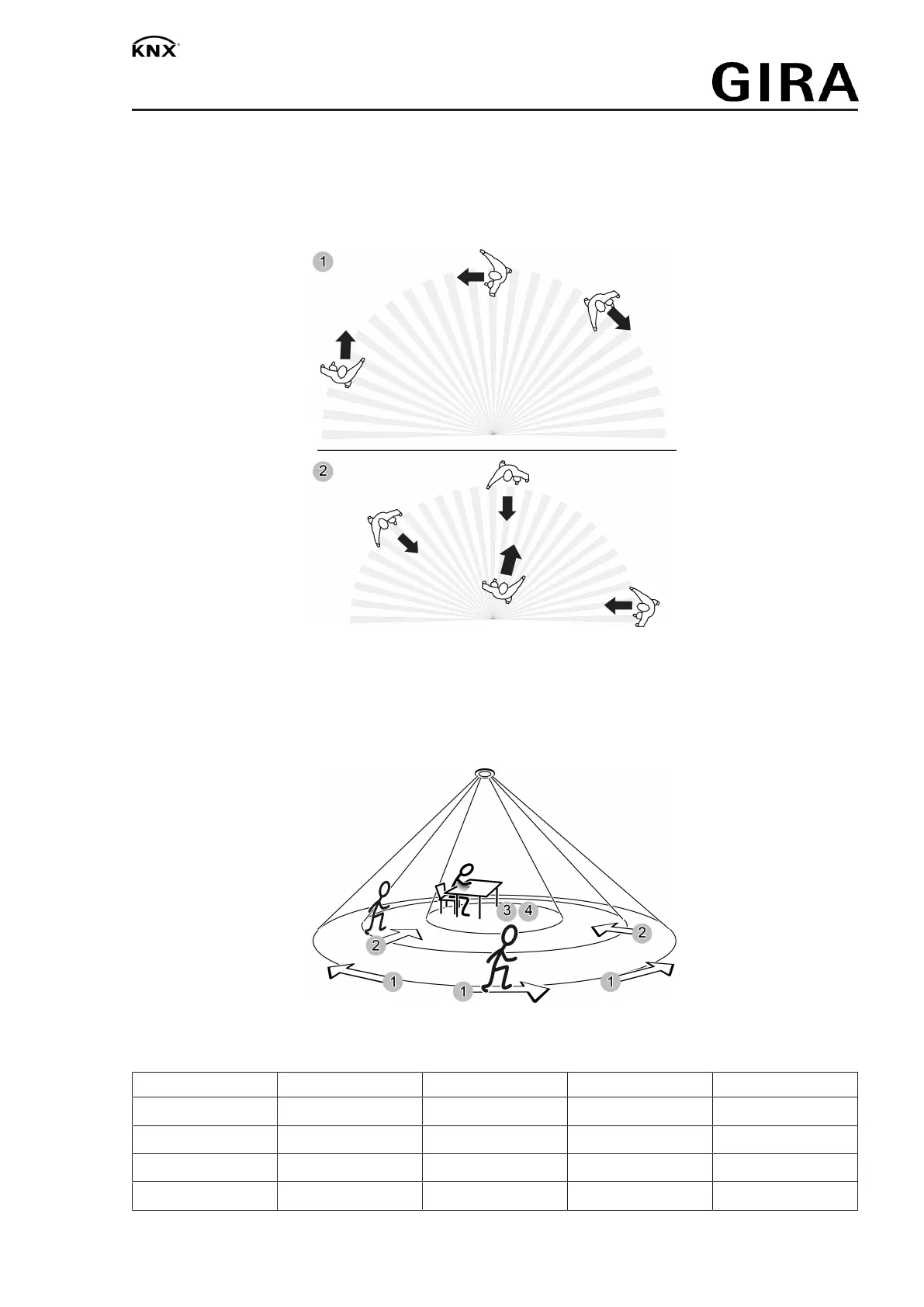

Figure3: Tangential and radial direction of motion

The device has a detection field of 360°. The diameter of the detection field depends on the in-

stallation height and the direction of motion of persons in the detection field (Figure 4).

The detection field becomes larger the greater the installation height, while the detection density

and sensitivity are reduced at the same time.

Figure4: Detection range depending on the direction of movement

Diameter of detection field for direction of movement

Installation height 1: 2: 3: 4:

2.20 m 8.8 m 6.6 m 4.4 m 2.9 m

2.50 m 10 m 7.5 m 5 m 3.3 m

3.00 m 12 m 9 m 6 m 4 m

3.50 m 13 m 9.5 m 7 m 4.7 m

5 / 13

32589822 10867613 25.02.2020
