KNX GIRA Operating Instructions

Presence detector Mini
Installation height 1: 2: 3: 4:
4.00 m 14 m 10 m 7.5 m*) – *)
5.00 m 17 m 11 m 8 m*) – *)
1: Range for tangential movement on the ground
2: Range for radial movement on the ground
3: Range for typical movements at desks, e.g. torso movement
4: Range of fine detection at desks, e.g. mouse movements
*) When used as a presence detector: Installation height should not be more than
3.5 m, otherwise fine detection is not possible.
The device has three independent sensors for motion detection. The arrangement of the sensor
areas A, B and C is clearly evident under the decor ring (Figure 6).
If the sensor areas A, B, C are evaluated separately, the project design must take the
alignment of the device into account (see chapter Aligning the device).

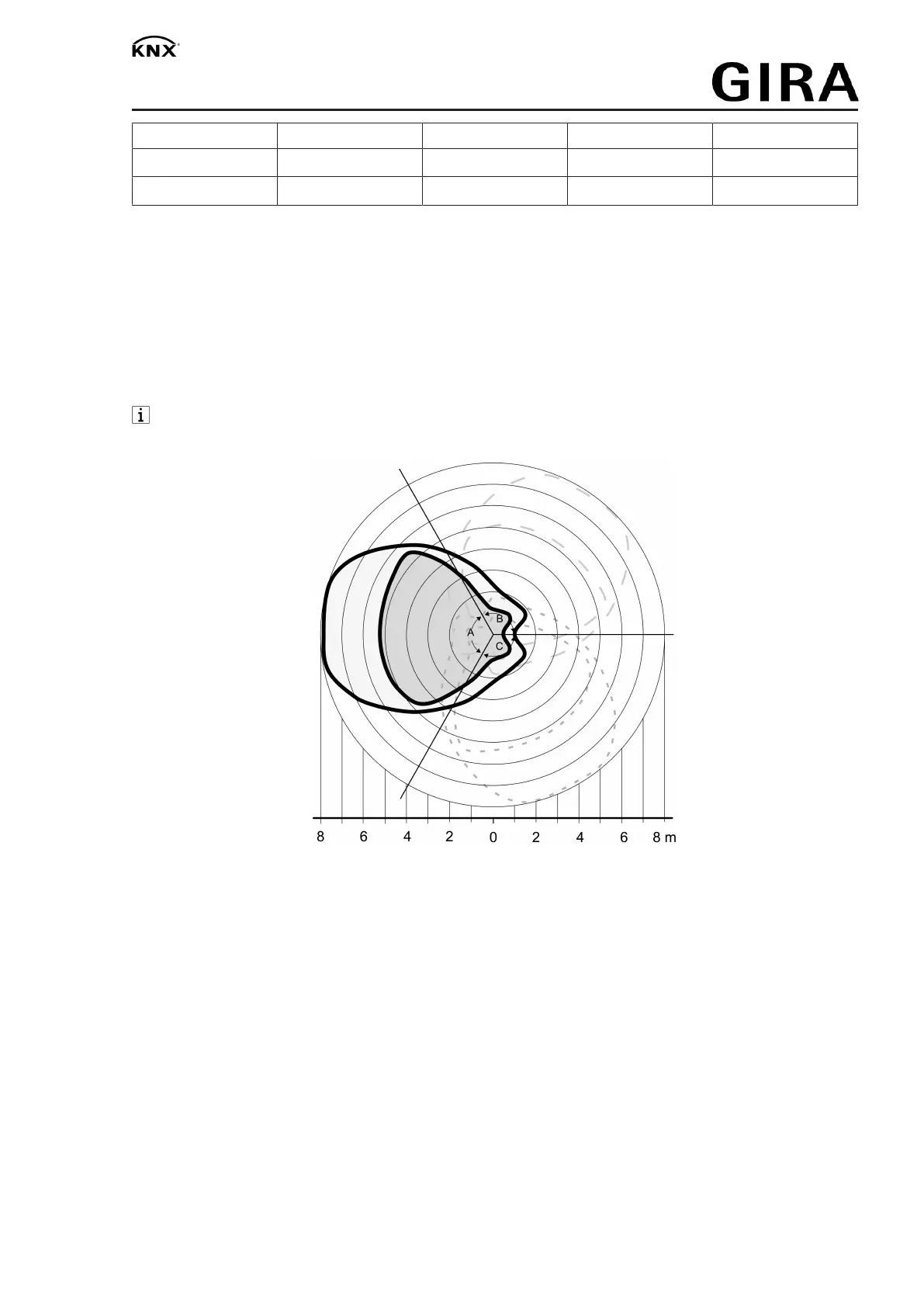

Figure5: Detection field areas A, B and C, installation height 3.00m
6 / 13
32589822 10867613 25.02.2020
