Dimming actuator

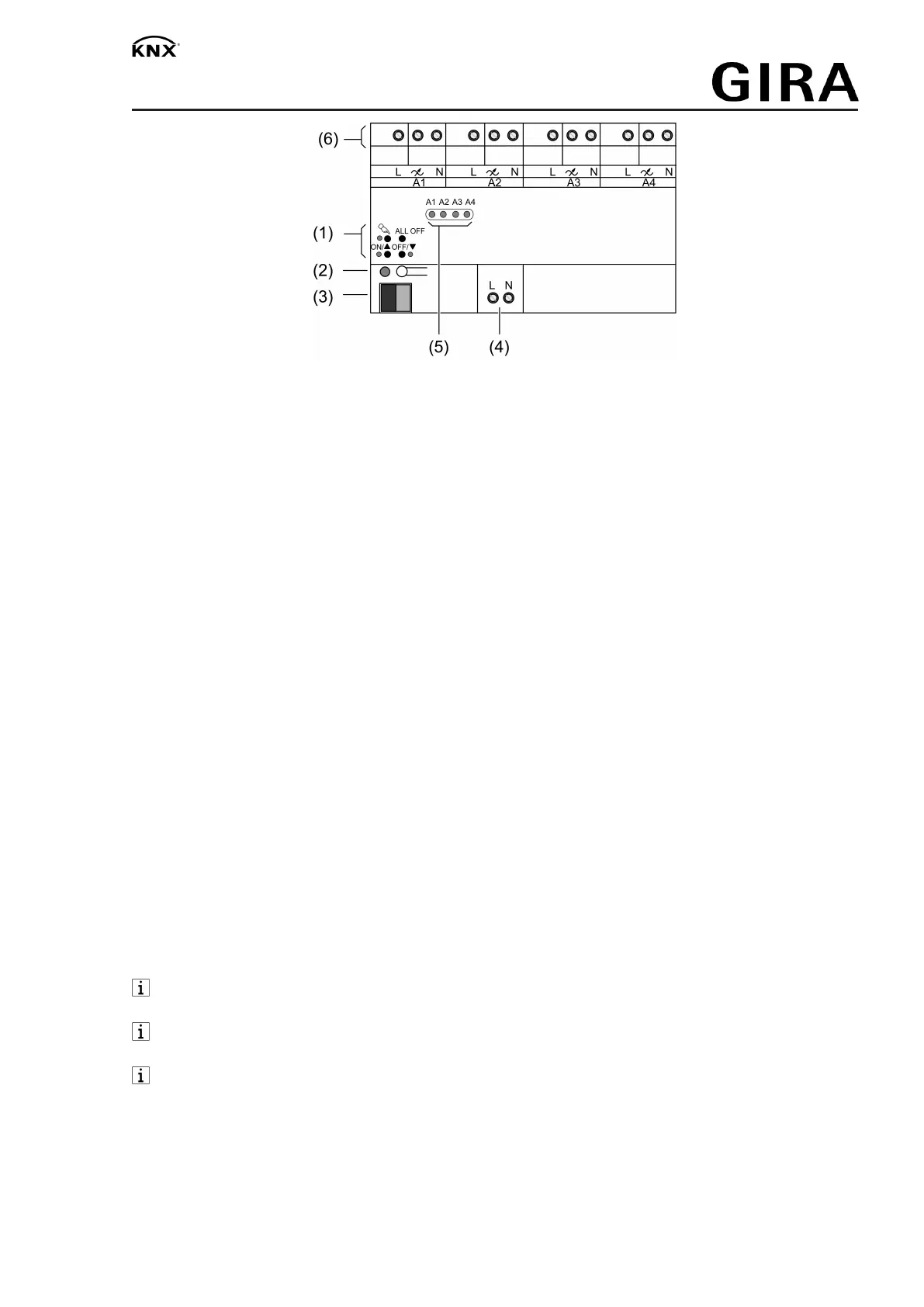

Figure2: View of dimming actuator 4-gang
(1) Button field for manual operation
(2) Programming button and LEDs
(3) KNX connection
(4) Mains connection (optional, if operation should be possible without bus voltage)
(5) Status LED
(6) Terminal outputs
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed tech-
nical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable soft-
ware and attainable functionality as well as the software itself can be obtained from the manu-
facturer´s product database. Planning, installation and commissioning of the device are carried
out with the aid of KNX-certified software. The latest versions of product database and the tech-
nical descriptions are available on our website.
Intended use
From device version
V04
(see imprint) and application program.
– Switching and dimming of
incandescent lamps,
HV halogen lamps,
dimmable HV-LED lamps,
dimmable compact fluorescent lamps,
dimmable inductive transformers with LV halogen or LV LED lamps,
dimmable electronic transformers with LV halogen or LV LED lamps
– Mounting on DIN rail according to EN 60715 in sub-distribution unit
If inductive or electronic transformers are connected, observe the data of the transformer
manufacturer on loads and the dimming principle.
HV-LED and compact fluorescent lamps generate high pulsed currents, when they are
operated in the leading edge phase control.
Our dimmers take into account the different electronic characteristics of most LED lamps
found on the market. However, it cannot be guaranteed that in individual cases the de-
sired results may not be achieved.
Only dimming actuator 1-gang:
– Speed controller for regulating the speed of single-phase motors e.g. induction motors,
shaded pole motors or universal motors
2 / 16
32575362 10867485 04.12.2019
