Dimming actuator
Connecting lamp load

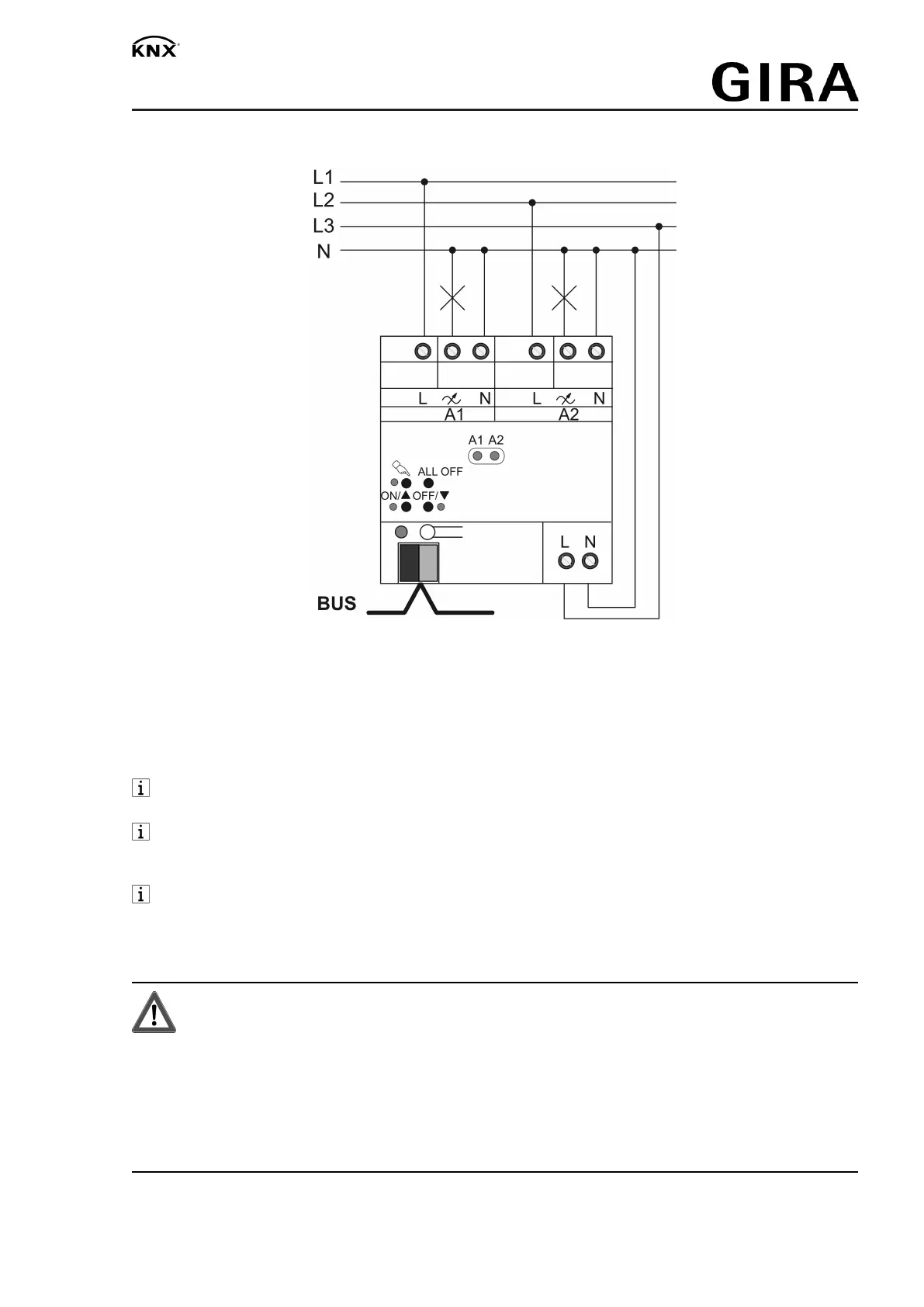

Figure4: Dimming actuator – Connection example
Do not exceed permissible total load including transformer power dissipation.
Operate inductive transformers with at least 85% nominal load.
Mixed loads with inductive transformers: ohmic load max. 50%.
HV-LED lamps and compact fluorescent lamps: Only connect lamps of one manufacturer and of
the same type on the same output. Do not connect any other loads to this output.
Connect 600 W HV LED lamps or compact fluorescent lamps at most per 16 A circuit
breaker.
The dimming principle in the as-delivered state: "Universal".
If setting the dimming principle manually, ensure that the dimming principle and the con-
nected load match. Observe the information in the Technical Documentation.
Use the settings "HV-LED trailing edge phase control" and "HV-LED leading edge phase
control" only for HV-LED lamps or compact fluorescent lamps.
The mains connection (4) is required for construction site operation - manual operation without
a connected bus voltage.
CAUTION!
Danger of destruction from mixed loads.
The dimmer and load may be destroyed.
Do not connect capacitive loads, e.g. electronic transformers, and inductive loads,
e.g. inductive transformers, together on the same dimmer output.
Do not connect inductive transformers together with HV LED lamps or compact
fluorescent lamps on the same dimmer output.
Connect device as shown in the connection example (Figure 4).
6 / 16
32575362 10867485 04.12.2019
