Dimming actuator
CAUTION!
Danger of destruction. 400 V are shorted when outputs switched in parallel are con-
nected to different outer phase conductors.
The device will be destroyed.
Always connect outputs switched in parallel to the same outer phase conductor.
Connect device as shown in the connection example (Figure 5).
Do not expand parallel-switched dimmer outputs with power packs.
Connecting the motors
Only possible with dimming actuator 1-gang: Usage as speed controller for electrical motors.

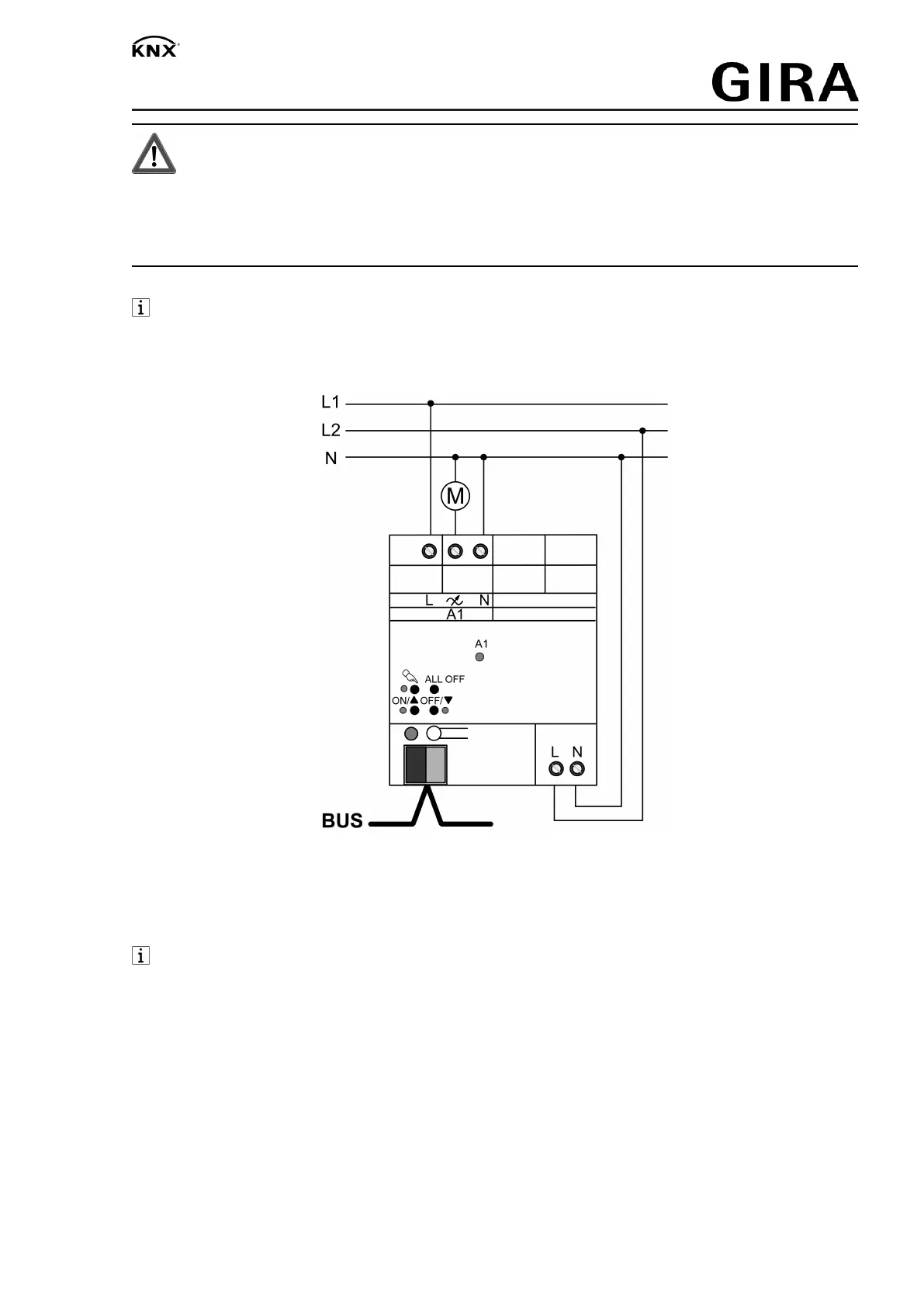

Figure6: Dimming actuator 1-gang – connection for speed controller operation
Observe delivery state. Before connecting and switching on, program the dimming actuator for
operation as speed controller.
Connect device as shown in the connection example (Figure 6).
During the commissioning, the minimum speed of the connected motor must be determ-
ined and the actuator adapted to this.
Installing the cover
It is necessary to install a cover to protect the bus connection against hazardous voltages in the
connection area.
8 / 16
32575362 10867485 04.12.2019
