Kobalt 0827414 - Care and Maintenance; Warranty; Replacement Parts List; Part Description

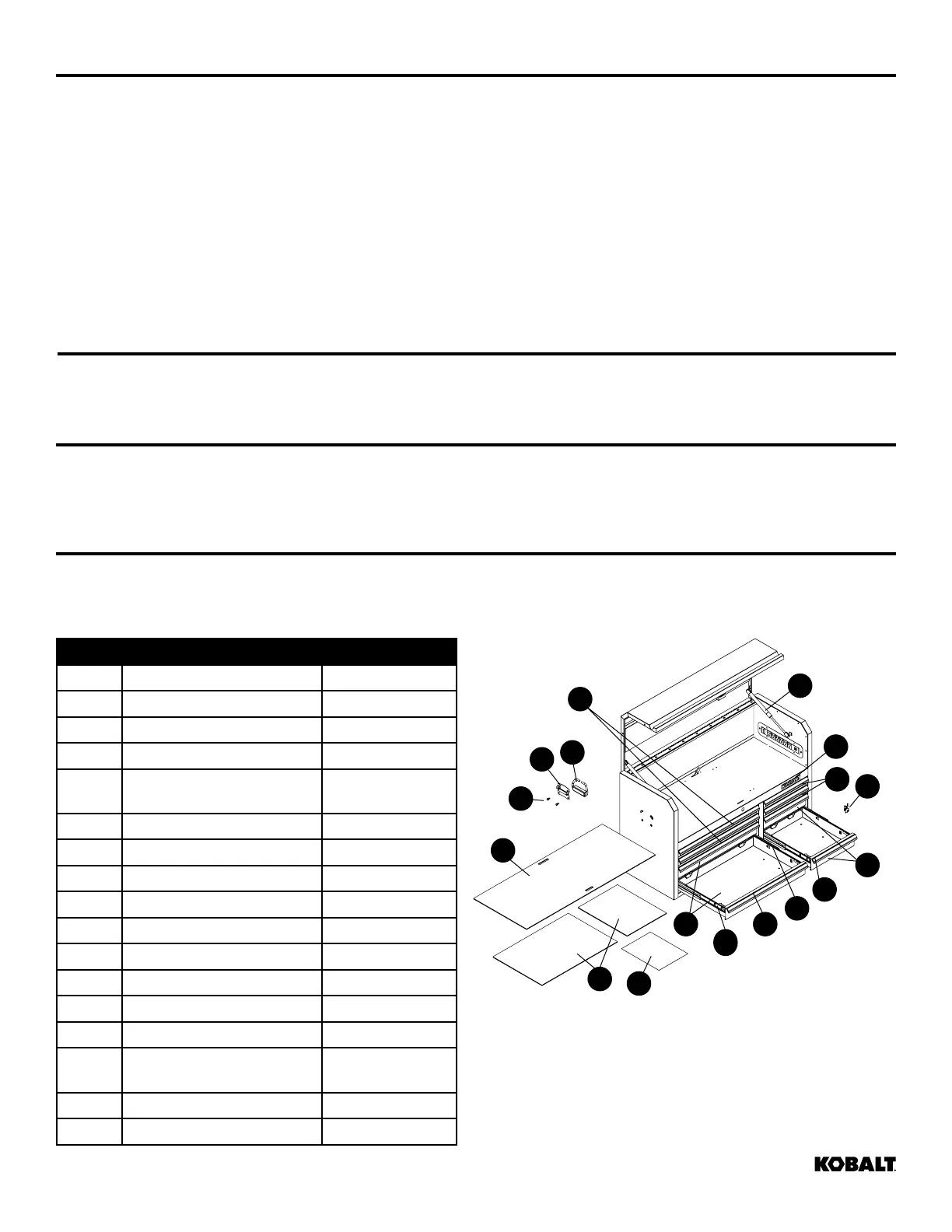

PART DESCRIPTION PART #
B Top Mat 1014592
C Drawer Liners 1014591
D Side Handle W10647
E Handle Back Plate 26285-PN
F Hardware Bag -
Handle
6360-PA
G Gas Spring 1013009
H Nameplate 1012560
I Lock 1012600
J 2 in. Drawer – Black W18197
K 3 in. Drawer – Black 18197A1
L 2 in. Drawer – Black 1014602
M 3 in. Drawer – Black 1014603
N Drawer Trim 1008561
O Drawer Trim 1008562
P Slide Assembly –
Right
1008342
Q Slide Assembly – Left 1008341
R Instruction Sheet F2087
WARRANTY
3 Year Hassle-Free Guarantee. You should never have a problem with your Kobalt® tools. However,
if you do, return the item to the place of purchase for a free replacement. No questions asked.
6
Printed in the U.S.A.
Kobalt® & K Design® is a registered trademark
of LF, LLC. All Rights Reserved.
kobalttools.com
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-833-4405, 7:45 a.m. - 4 p.m.,
CST, Monday - Friday.
CARE AND MAINTENANCE
• Lubricate the slides with grease or equivalent twice a year.
• Lubricate lock with graphite once a year.
• Periodically, the drawer fronts, drawer trim, and other surfaces should be cleaned with a mild
detergent and water.
•Autowaxwillpreservetheunit’slusternish.Applythewaxfollowingtheinstructionsprovidedby
the wax manufacturer. The wax will also help protect the unit against scratches.
•Greaseandoilcanberemovedwithmoststandardcleaninguids.Forsafety,useanonammable
cleaninguid.
•Itisrecommendedthatdrawerlinersbeusedtoprotectthenishinsidethedrawersandtomake
the drawers easier to clean. The drawer liners may be cleaned with soap and water.
CAPACITIES
The maximum weight for each drawer should be no more than 100 lbs.
