Kobalt 10011 User Manual

ASSEMBLY INSTRUCTIONS
8
Hardware Used

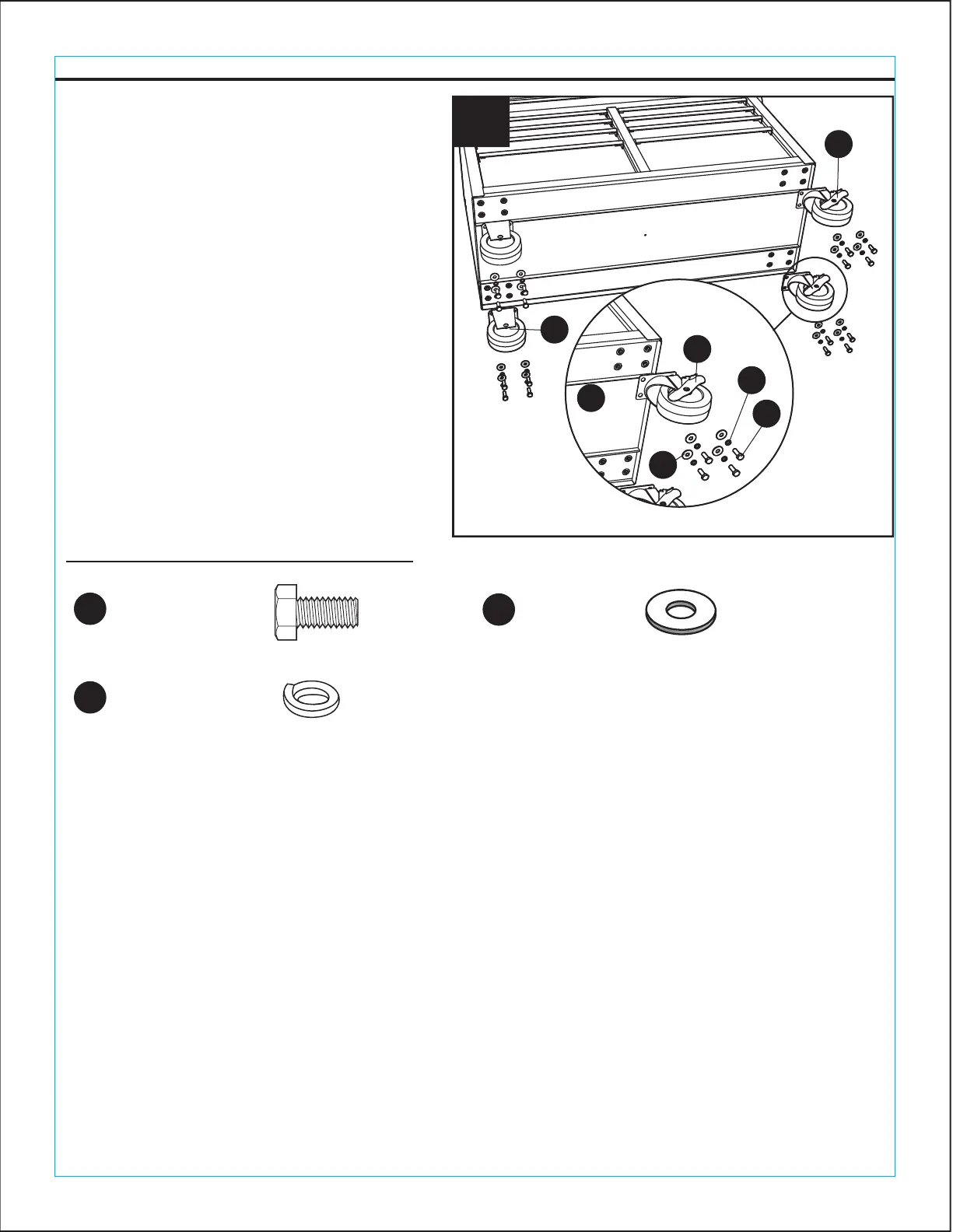

3. Ensure all cabinet drawers are securely
locked into place using the lock (EE)
and key (FF) on the tool chest (A). Lay
the tool chest (A) on its back using the
cardboard package materials to protect
the finish. Mount the two swivel casters
with brake (D) to the tool chest (A)
using M8 x 25 mm bolts (BB), spring
washer (CC) and washer (DD). Repeat
this process for the fixed casters (E) on
the opposite side of the tool chest (A).
Return the tool chest (A) to its upright
position.
BB
x 16
M8 x 25 mm Bolt
DD
x 16
Washer
CC
x 16
Spring Washer
Note: Two people may be required to
complete this installation. The swivel casters
with brake (D) must be installed on the end of
the tool chest (A) with the cabinet handle (C).
Do not over tighten the screws.
3
D
E
CC
BB
DD
D
A
