OPERATING INSTRUCTIONS
SELECTING THE CORRECT SOCKET
CAUTION: Always verify that the tool is switched off
and unplugged before installing any accessories on the
tool.
Always use the correct size socket for bolts and nuts. An
incorrect socket will result in inaccurate and inconsistent
fastening torque and/or damage to the bolt or nut.

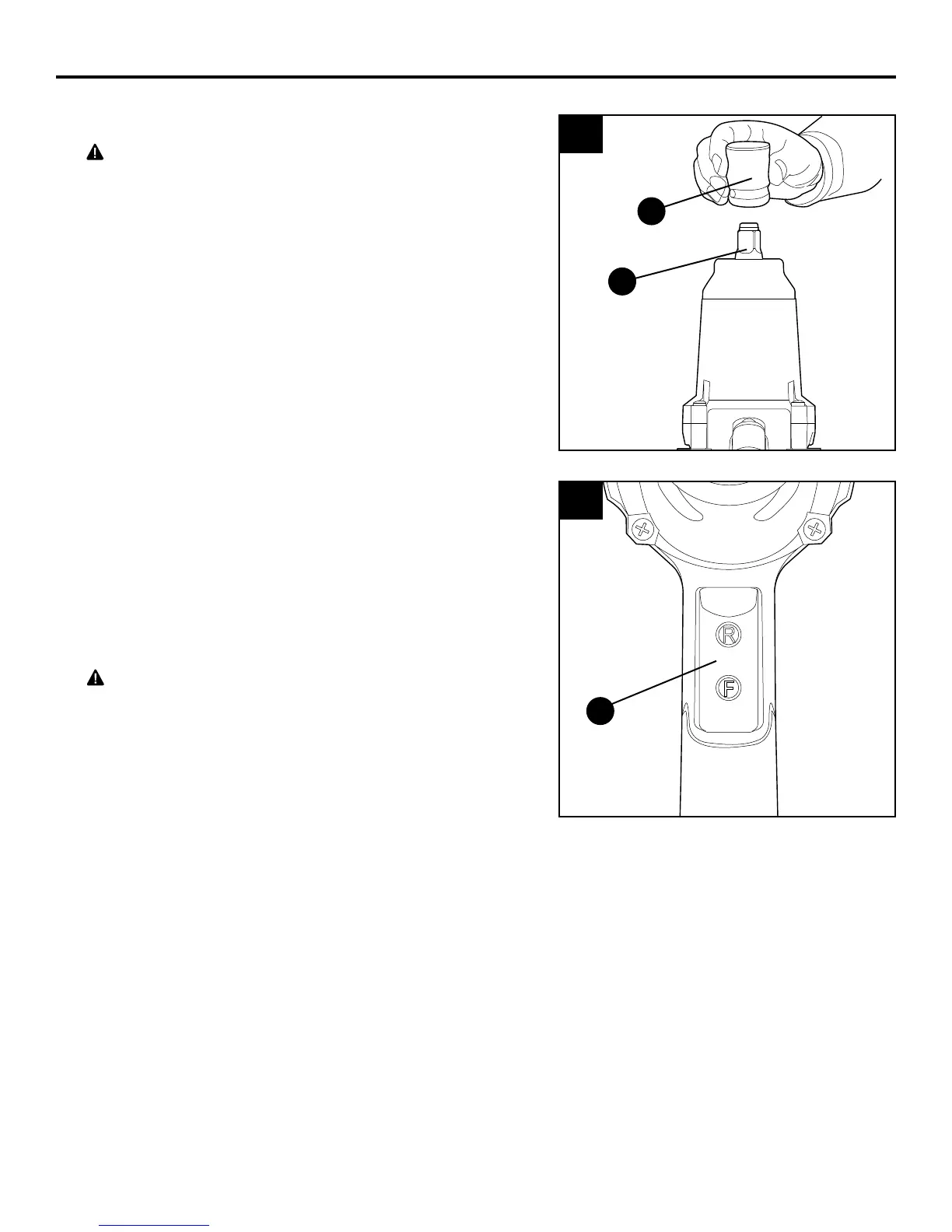

INSTALLING AND REMOVING A SOCKET (Fig. 2)
To install a socket (D), push it onto the anvil (A) of the
tool until it locks into place.
To remove the socket, simply pull it off.
TURNING ON THE IMPACT WRENCH (Fig. 3)
1. Note that the trigger switch (B) on the impact wrench
is marked with R for reverse and F for forward.
2. Connect the power cord of your impact wrench to a
standard household power outlet.
3. Depress the lower part of the switch marked F to run
the tool in the forward direction (clockwise rotation).
4. Depress the upper part of the switch marked R to
reverse the direction (counter-clockwise rotation).
5. Release the switch to stop the tool.
CAUTION: Do not allow familiarity with your
impact wrench to make you careless. Remember that
a careless fraction of a second is sufcient to cause
severe injury.
IMPACTING TECHNIQUES
Tightening fasteners with the impact wrench
The proper fastening torque may differ depending on the type or size of the bolt, the material of
the workpiece to be fastened, etc. Before starting your job, always perform a test operation to
determine the proper fastening time for your bolt or nut.
1. Hold the tool rmly and place the socket over the bolt or nut.
2. Turn the tool on and fasten the bolt or nut to the proper torque.
3. After fastening, always check the torque with a torque wrench.
NOTE: Hold the tool straight along the axis of the bolt or nut.
NOTE: Excessive fastening torque may damage the bolt/nut or socket.
