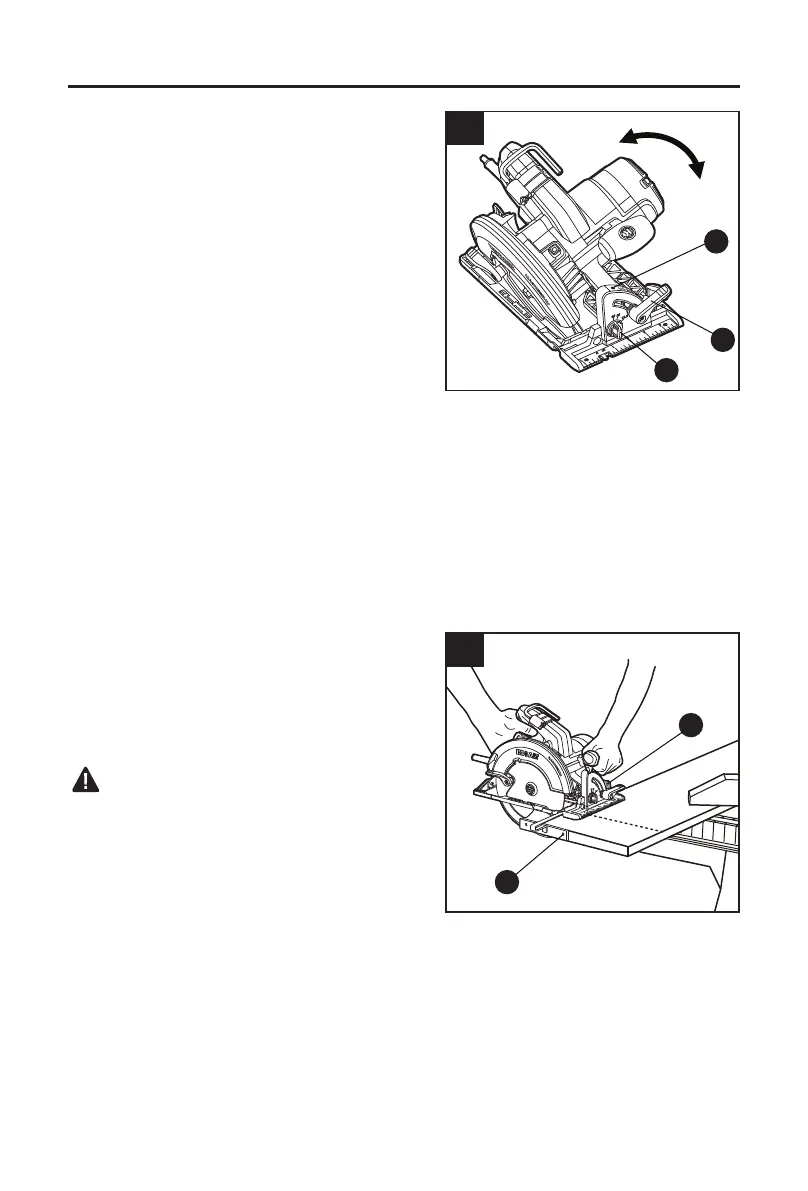

OPERATING INSTRUCTIONS

6. Adjusting the Cutting Angle

a. Disconnect the plug from the power source.

b. Loosen the bevel-locking lever (O), located on

the 0°-56° bevel scale (P).

c. Tilt the body of the saw until the indicator mark

on the saw aligns with the required angle on

the bevel-angle scale.

d. Tighten the bevel-locking lever to secure the

saw.

Quick adjusting to bevel 22.5° and 45°

The circular saw is equipped with a bevel-limitation

knob (N) to quickly set the cutting angle at 22.5°

and 45°.

To adjust to 22.5° bevel:

a. Depress the bevel-limitation knob and rotate it to the 22.5° indicator mark on the tool.

b. Loosen the bevel-locking knob, tilt the body of the saw until the saw cannot move, and

tighten the bevel-locking knob to secure the saw. The cutting angle is now set at 22.5°.

To adjust to 45° bevel:

a. Depress the bevel-limitation knob and rotate it to the 45° indicator mark on the tool.

b. Loosen the bevel-locking knob, tilt the body of the saw until the saw cannot move, and

tighten the bevel-locking knob to secure the saw. The cutting angle is now set at 45°.

7. Installing and Using the Edge Guide

The edge guide allows you to make accurate

parallel cuts when trimming a workpiece.

a. Disconnect the plug from the power source.

WARNING

• ALWAYS unplug saw before assembling any

accessories. Failure to unplug the saw could

result in accidental starting, which can cause

serious personal injury.

b. Slide the arm of the edge guide (W) into the

edge-guide slots at the front of the saw base.

c. Adjust the edge guide to the desired length of cut. Tighten the edge-guide locking

knob (R).

d. Clamp and support the workpiece securely before making your cut.

e. Place the edge guide rmly against the edge of the workpiece. Doing this will give you a

true cut without pinching the blade.

f. BE SURE that the guiding edge of the workpiece is straight so you can get a straight cut.

g. ALWAYS LET THE BLADE REACH FULL SPEED, then carefully guide the saw into the

workpiece.
