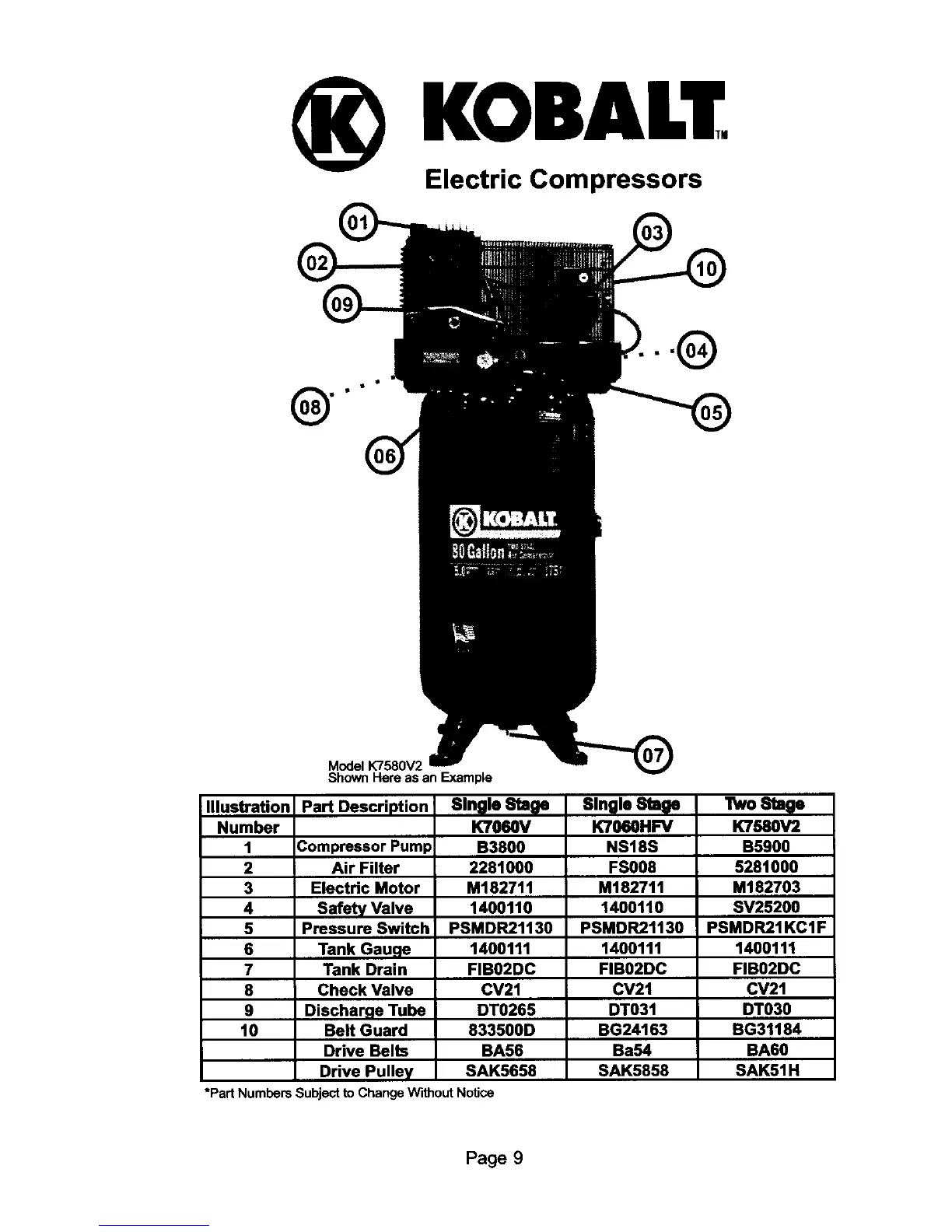

KOBALT.
Electric Compressors
..@
Illustration
Number
1
2
3
4
5
6
7
8
9
10
Model K7580V2
Shown Here as an Example
Part Description Single Stage
Compressor Pump
Air Filter
Electric Motor
Safety Valve
Pressure Switch
Tank Gauge
Tank Drain
Check Valve
Discharge Tube
Belt Guard
Drive Belts
Drive Pulley
K7060V
B3800
2281000
M182711
1400110
PSMDR21130
1400111
FIB02DC
CV21
DT0265
833500D
BA56
SAK5658
*Part Numbers Subjectto Change WithoutNotice
Single Stage
KTO6OHF'V
NS18S
FS008
M182711
1400110
PSMDR21130
1400111
FIB02DC
CV21
DT031
BG24163
Ba54
SAK5858
Two Slage
K7580V2
B5900
5281000
M182703
SV25200
PSMDR21KCIF
1400111
FIB02DC
CV21
DT030
BG31184
BA60
SAK51 H
Page 9
