ASSEMBLY INSTRUCTIONS
1. Assembling the Blower Tube
This product requires assembly before using.
WARNING
• To prevent accidental starting that could cause
serious personal injury, always remove the
battery pack from the tool when assembling parts.
a. Align the groove in the blower tube (A) with the
knob on the blower housing. Push the tube
onto the blower housing.
b. Rotate the blower tube counterclockwise until
a “click” is heard to signal that the knob has
locked into place.
c. Make sure that the 24V MAX mark is facing
upward after assembly, otherwise the tube is
not secured to the blower. If necessary, remove
the tube and align the opposite groove with the
knob to install the tube properly.
d. To remove the blower tube, rotate the blower
tube clockwise approximate 90°, then pull it
straight out from the blower.

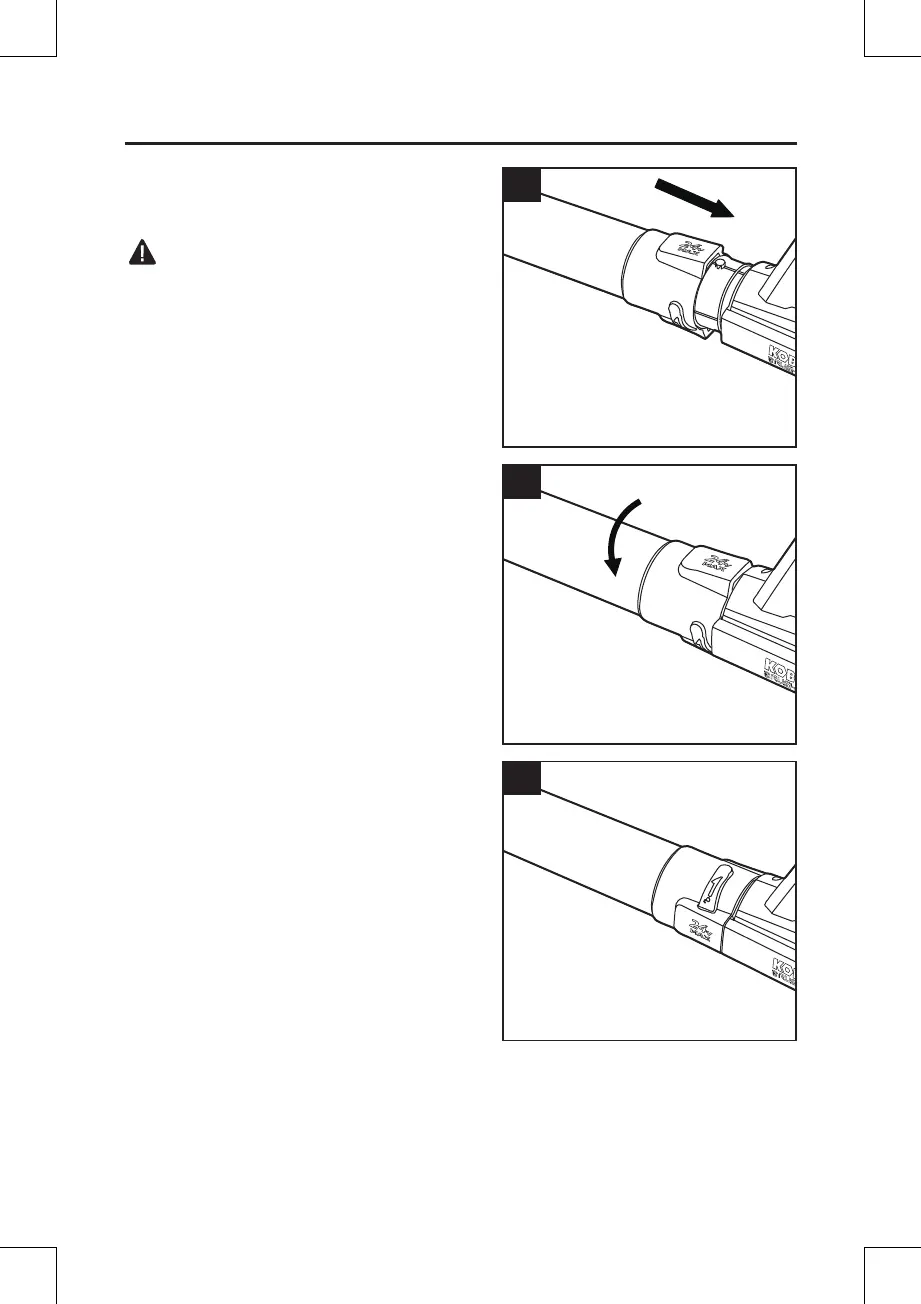

1a
1b
1c
