17
4

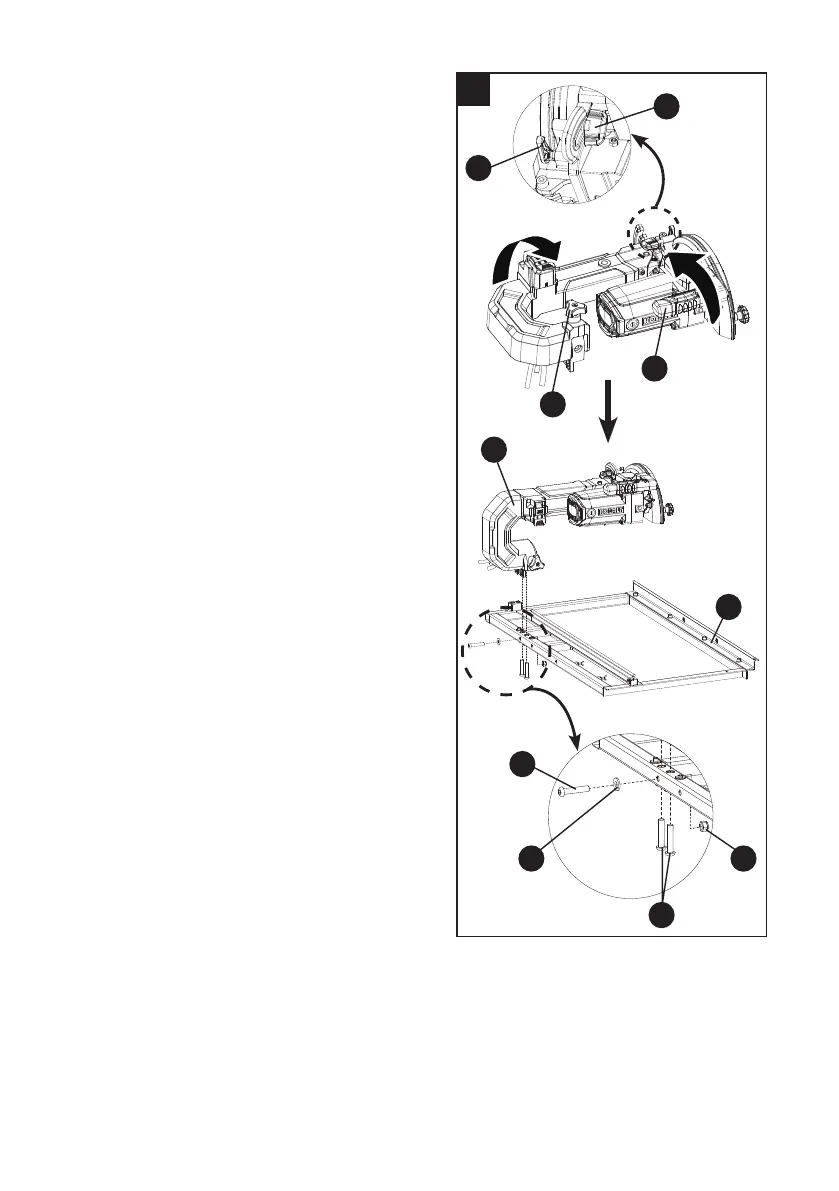

ASSEMBLING THE CUTTING HEAD ASSEMBLY
ON THE FRAME (FIG. 4) - BAG P
NOTE: The cutting head assembly and table frame
are heavy and it is recommended to be transported
with the help of 2 people, to safely move it.
● Please frame and cutting head assembly on at
stable surface.
● On the cutting head assembly, pull out the
hold-down latch (FF) and grasp the motor
handle (Q) to raise up the cutting head.
● Release the hold-down latch (FF) to lock
into place and tighten the cutting head lock
knob (DD) to secure the cutting head.
NOTE: Make sure the cutting head locking
knob (DD) is fully engaged with the channel
before locking.
● Turn the arm folding lock knob (AA)
counterclockwise to unlock and then pull out.
Grasp the motor handle (Q) to raise the cutting
head assembly up. Push in the arm folding lock
knob (AA) and tighten it.
● Align the holes in the cutting head assembly (A)
with the holes on the table frame (J).
● Insert the socket head bolt (mm) through the at
washer (nn) and the table frame (J) with the lock
nut (oo). Tighten with the provided 5 mm hex
wrench (RR) and 13 mm wrench (not provided).
● Then, insert two socket head bolts (mm) through
the table frame (J) into the holes on the cutting
head assembly (A).
● Tighten the two socket head bolts using the
provided 5 mm hex wrench (RR).
A
J
nn
DD
Q
AA
oo
FF
mm
FRONT OF SAW
mm
To Next Page
