INSTALLATION INSTRUCTIONS
10
WIRING
Local electrical wiring codes differ from area to area.
Source wiring and protector must be rated for at least the
amperage and voltage indicated on the motor nameplate,
and meet all electrical codes for this minimum. Use a
slow blow fuse type T or a 240 Volt double pole circuit
breaker.
MINIMUM WIRE SIZES
(must meet all codes)
Up to 75 feet long 10 AWG

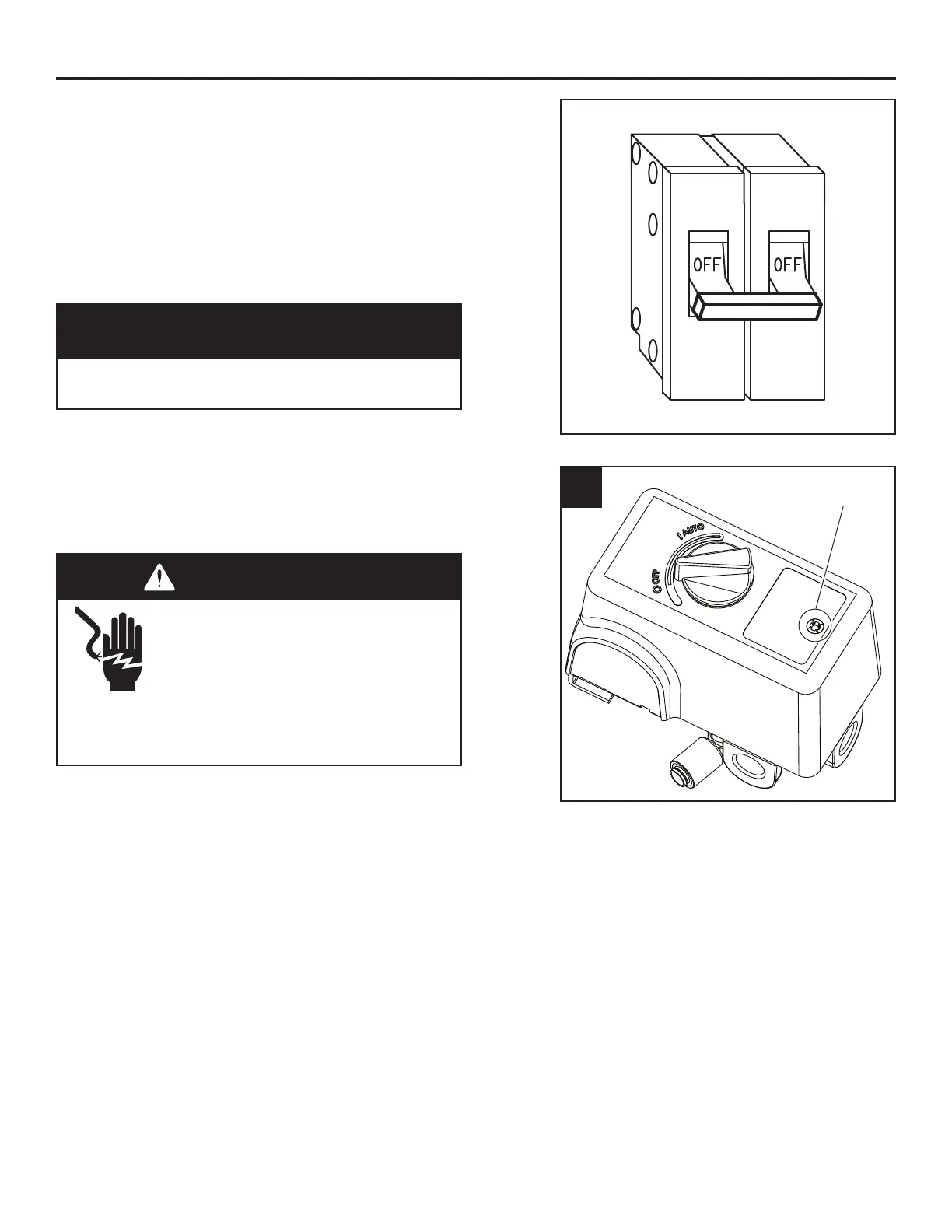

1. Remove the pressure switch cover by loosening the
screw (see Figure 1). Use a Phillips screwdriver.
Pressure switch styles may vary.
WARNING
Risk of Shock. All wiring and
electrical connections must be
performed by a qualied electrician
familiar with industrial motor
controls. Installations must be in
accordance with local and national
codes.
1
Screw
