8
8-33
ï¼»8. OPTIONAL EQUIPMENTï¼½
8.10 HANDLING OF OPERATOR'S SEAT (MECHANICAL
SUSPENSION SEAT)

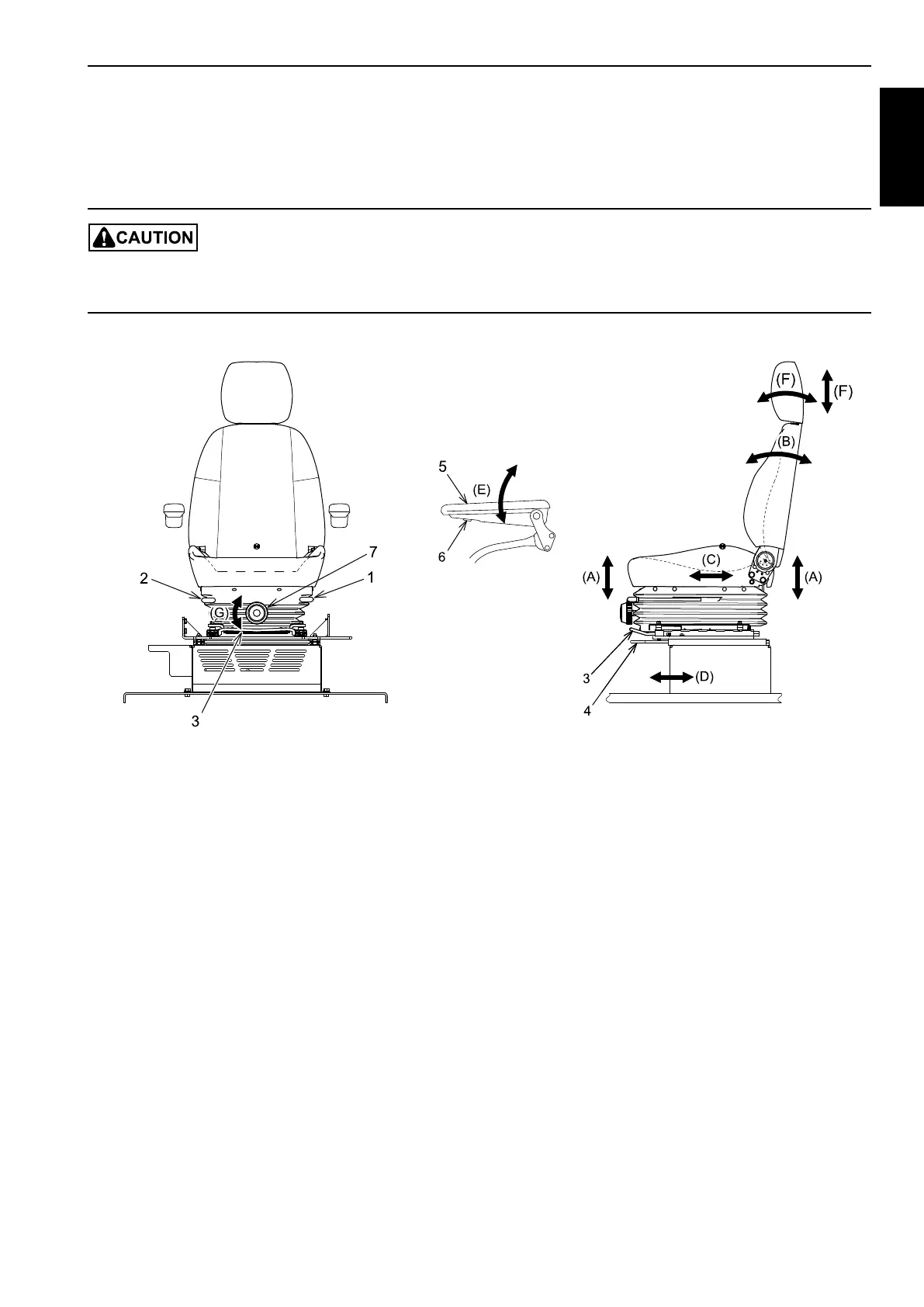

The position of operator's seat can be adjusted. Adjust the seat to the position at which you can operate the control
levers and pedals easily.
When adjusting the operator's seat, pay attention to hands in order not to be caught between the handle and seat
stand.
(A)
(B)
(A)
(D)
(C)
(B)
5
6
7
3
4
1
2
3
(E)
(G)(G)
(F)
(F)
8.10.1 HEIGHT AND TILT ADJUSTMENT
(A) The height and angle of operator's seat can be adjusted.
• Pull lever (1) up to tilt the front of the seat up/down. (5 levels tilting)
• Pull lever (1) down to tilt the rear of the seat up/down. (5 levels tilting)
• The height of the seat is adjusted by tilting the front and rear of the seat alternatively.
8.10.2 RECLINING ADJUSTMENT
(B) The reclining angle can be adjusted.
• Pull lever (2) up, and recline the backrest to your desired angle. After adjustment, release the lever to fix the
angle.
8.10.3 FRONT/REAR SEAT ADJUSTMENT
(C) The position of operator's seat can be adjusted back and forth.
• To slide the seat back and forth, pull handle (3) up.
After adjusting the seat to your desired position, release the handle and check that the seat is locked securely.
(Adjustable length: 160 mm)
Copyright©2020 Kobelco Construction Machinery Co.,Ltd. All rights reserved. [S2LP00004ZE03] [0701CsCshWbYs]
