Component
’’
s Name
CRT Screen
Identifying visitors

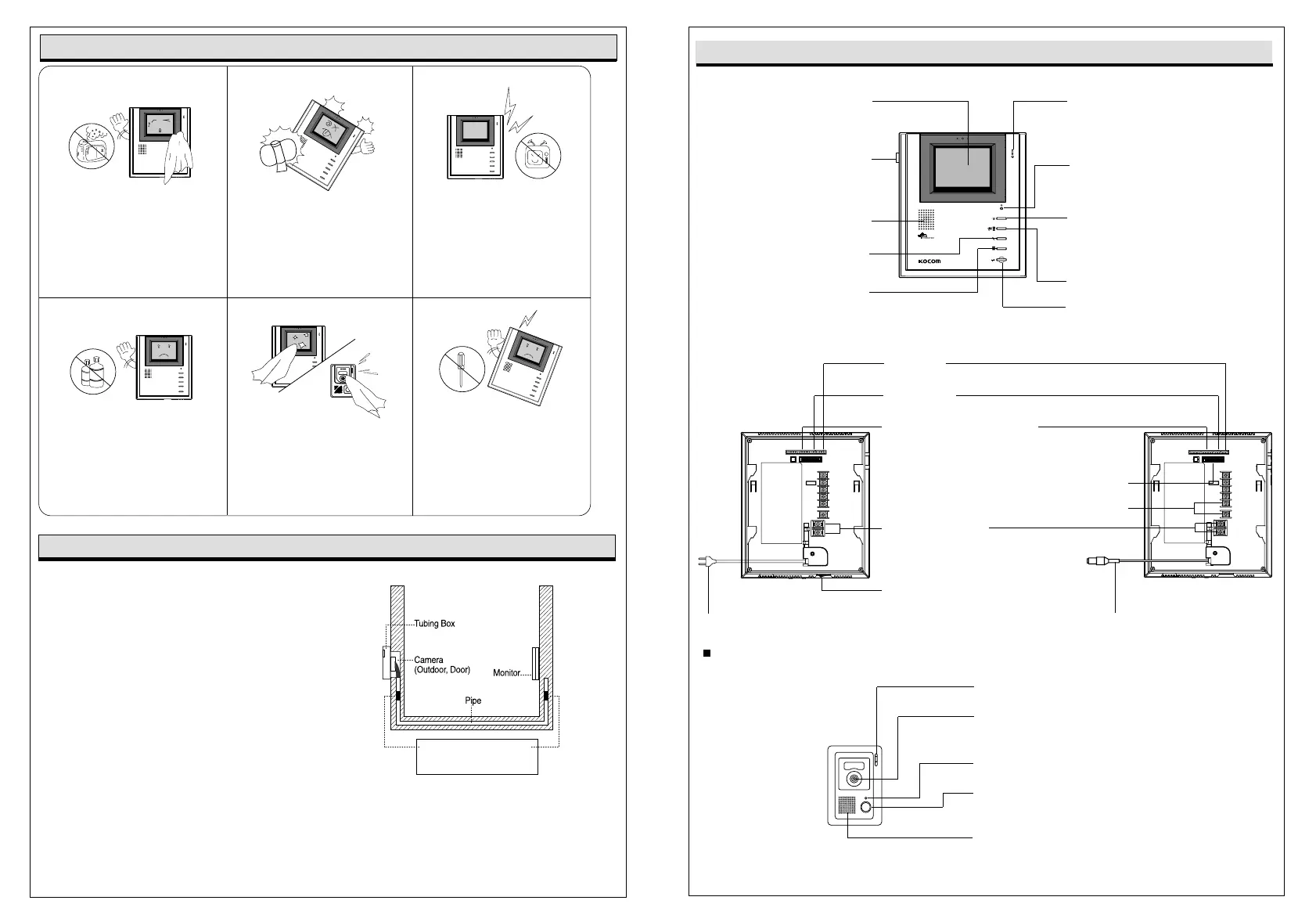

Precautions for Operation
Keep away from humidifier and
stove. High temperature and
humidity can cause breakdown.
When cleaning, never use wet
hands, volatile benzene or paint
thinner.
Keep picture clear by cleaning
camera window frequently with
soft cloths.
As this device consists of
electronic precision
components, and high voltage
is generated internally, do not
attempt to disassemble.
Do not drop monitor or door
camera, and avoid strong
impact.
Keep away from devices
generating strong magnetic field
(TV, Speaker, etc.) (Picture can
be disturbed or blurred and
breakdown can result)
Installation Precautions
Monitor and camera must be installed away from direct
light and counter light.
Camera must be installed at a place free from rain.
Standard height of monitor must be 1,450mm~1,500mm
from ground, centered around brawn tube.
Camera should be installed on the wall in which cement
is completely dry.
If installed during winter season at temperature below
-5, condensation might be generated inside monitor and
camera due to temperature difference between indoors
and outdoors. To prevent breakdown due to such
condensation, connection should be made in 2 hours or
more after installation.
Do not install monitor and camera in locations subject to
direct heating as harmful gases may subsequently be
emitted in significant amounts.
Stopping up pipe as above minimizes
temperature difference between indoors and outdoors, and
also eliminates moisture and condensation on door camera
window.
Stop up P.V.C. pipe using
adiabatic substances, to
prevent air circulation
C-Mic
To communicate with Monitor
Speaker
When visitor calls, the voice from monitor
comes out of the speaker.
Call Button
By pressing the button, the related house
will be called.
Camera Lens
Clear picture quality realized
by adopting 1/3" CCD
MIC
Sending the voice to lobby phone, guard
phone, camera and other equipment
connecting to in-house line
Power LED
Communication Button
When receiving the call signal from interlocked
outside equipment, user can communicate with
it after pressing this button
Guardroom / Lobby Button
Chime Volume Switch
Three-level (louder, middle and smaller)
adjusting the electronic tone sound
Speaker
Door Open Button
Pressing this button while communicating,
user can automatically open the front door
and common gate
Main Line Port from Lobby phone
A Port used when multi-home wiring is needed.
For further information, see the instruction sticker
or installation specifications
In-house Line Button
Used in inner line call and communication
Power Cord: AC 220V - 230V
Front Door Button
When receiving the call signal from front door,
user can communicate with front door after
pressing this button
Camera 1 Port
A Port connecting to in-house camera
Camera 2 Port
A Port connecting to in-house camera
Power Switch
KIV-102
Front Door Opener Port
A Port connecting to front door opener
Power Cord: DC 17V - 20V
DC INPUT (DC 17V - 20V)
House No. Setting Switch
KIV-D102
KC-C63 Camera
Power Lamp
To check power ON/OFF status
