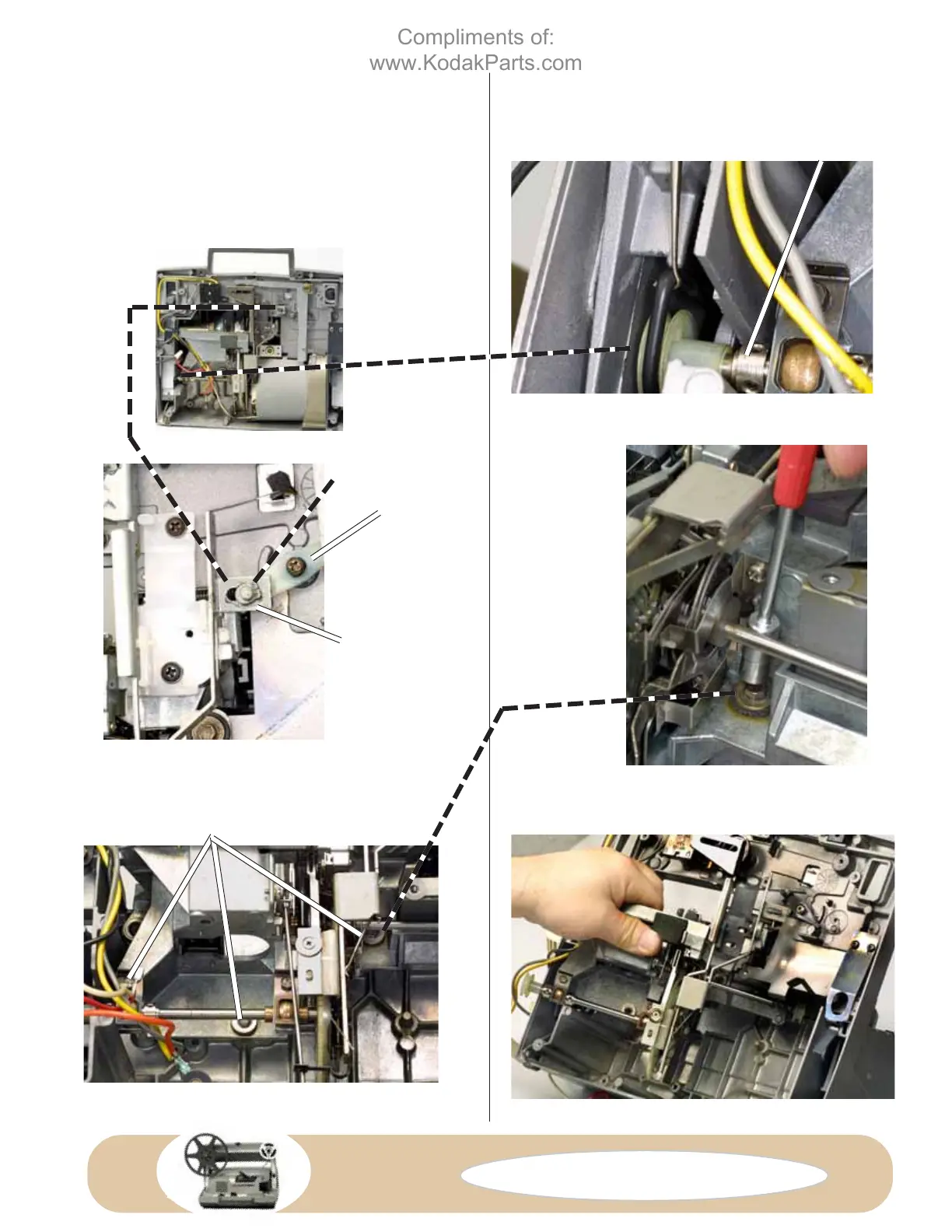

11/KODAK M-SERIES PROJECTORS
CAM SHAFT
MECHANISM SCREWS
FILM-
SELECTOR
SLIDE
ASSEMBLY
CAM LEVER
15. Use your 1/4" nut driver to remove the 3 screws holding
the mechanism, Fig. D32. You need a thin-walled nut driver
to reach the screw shown in Fig. D30.
V
ARIATION: In most of the M-series projectors, the
slotted tab on the film-selector slide assembly just slips
over the post on the cam lever, Fig. D31. But some projec-
tors, such as the one shown in Fig. D31, have a snap ring on
the cam-lever post. If you have the snap ring, remove the
snap ring before you lift out the mechanism.
16. Lift out the mechanism, Fig. D33. Tilt the mechanism
slightly until the right-hand end clears the case. Fig. D35
shows the mechanism removed.
SNAP RING
FIG. D31 Variation--a snap ring holds
the film-selector slide assembly to the
cam lever in the M95.
FIG. D30 Using a thin-walled 1/4" nut driver to
remove the third mechanism screw.
FIG. D33 Lifting the mechanism from the case.
FIG. D32 Remove the three mechanism
screws.
FIG. D29 Unhooking the rubber belt from the
pulley at the end of the cam shaft.
Compliments of:
www.KodakParts.com
