Kodak Instamatic M Series User Manual

45/KODAK M-SERIES PROJECTORS
DISCONNECT HOOKED END OF SPRING
LAMP-HOUSING SCREWS
SHUTTER
IN-AND-OUT CAM
SHUTTER CAP

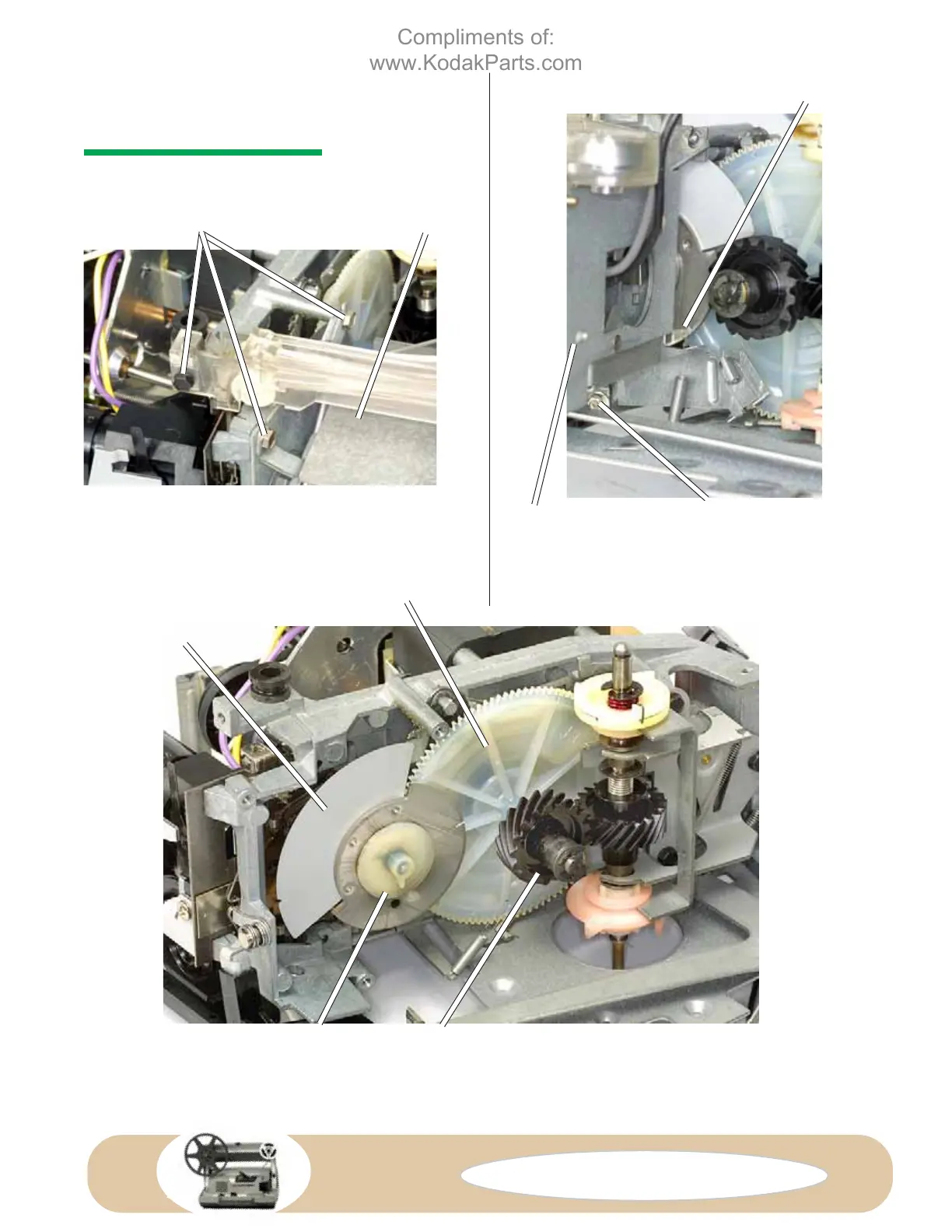

FIG. MD13 Underside of projector mechanism.
LAMP HOUSING
LAMP HOUSING
REMOVE SCREW
FIG. MD14 Bottom of projector mechanism
from back.
FIG. MD15 Bottom of projector, viewed from the back—lamp housing removed.
the shutter—the tab on the cap aligns with the lamp box.
Before you replace the lamp housing, make sure the exten-
sion on the cap points straight down as shown in Fig. MD15.
CAM-SHAFT GEAR
