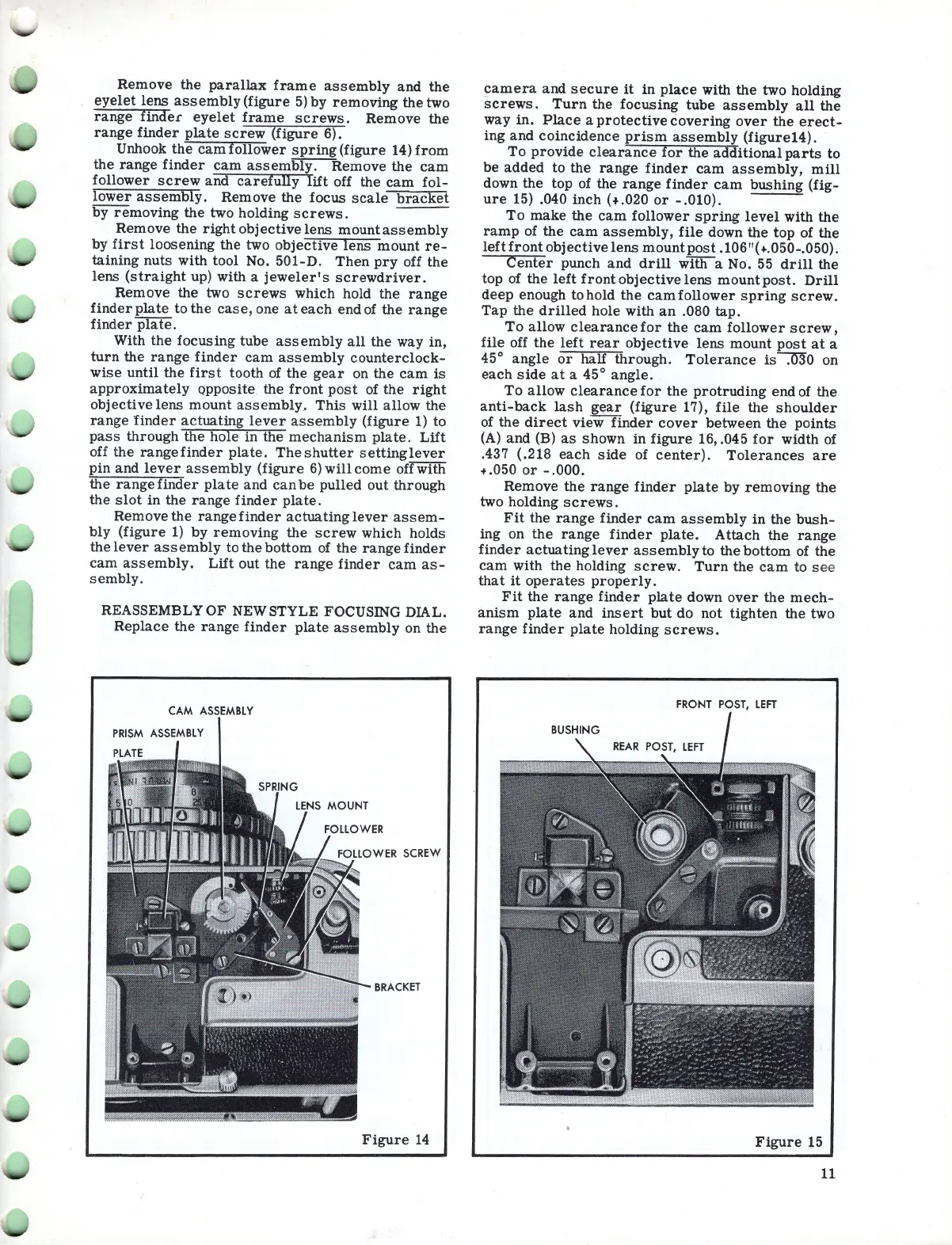

Page #13 background imageLoading...
Page #13 background image
Remove
the
parallax
frame
assembly
and
the
eyelet
lens
assembly
(figure
5)
by
removing
the
two
range
finder
eyelet
frame
screws.
Remove the
range
finder
plate
screw
(figure 6).
Unhook
the
cam
follower
spring
(figure 14)
from
the
range
finder
cam
assem~Remove
the
cam
follower
screw
and
carefully
lift
off the
cam
fol-
lower
assembly.
Remove the focus
scale
bracket
by
removing
the two holding
screws.
Remove
the
right
objective
lens
mount
assembly
by
first
loosening the two
objective
lens
mount
re-
taining nuts with tool No. 501-D.
Then
pry
off
the
lens
(straight
up) with a
jeweler's
screwdriver.
Remove the two
screws
which hold
the
range
finder
plate
to
the
case,
one
at
each
end
of
the
range
finder
plate.
With
the
focusing tube
assembly
all
the
way in,
turn
the
range
finder
cam
assembly
counterclock-
wise
until
the
first
tooth
of
the
gear
on the
cam
is
approximately
QPposite the
front
post
of
the
right
objective
lens
mount
assembly.
This
will allow the
range
finder
actuating
lever
assembly
(figure
1)
to
pass
through
the
hole in the
mechanism
plate.
Lift
off
the
range
finder
plate.
The
shutter
setting
lever
pin
and
lever
assembly
(figure
6)
will
come
off with
the
range
finder
plate
and
canbe
pulled out through
the
slot
in the
range
finder
plate
.
Remove the
range
finder
actuating
lever
assem-
bly
(figure
1)
by
removing
the
screw
which holds
the
lever
assembly
to the bottom
of
the
range
finder
cam
assembly.
Lift
out
tne
range
finder
cam
as-
sembly.
REASSEMBLY OF
NEW
STYLE FOCUSING DIAL.
Replace
the
range
finder
plate
assembly
on the
CAM
ASSEMBLY
OWER
SCREW
BRACKET
Figure
14
camera
and
secure
it
in
place
with the two holding
screws.
Turn
the focusing tube
assembly
all
the
way in.
Place
a
protective
covering
over
the
erect-
ing
and
coincidence
prism
assembly
(figure14).
To
provide
clearance
for
the
additional
parts
to
be
added
to
the
range
finder
cam
assembly,
mill
down the top of the
range
finder
cam
bushing
(fig-
ure
15) .040 inch
(+
.020
or
- .010).
To
make
the
cam
follower
spring
level
with
the
ramp
of
the
cam
assembly,
file
down
the
top of the
left
front
objective
lens
mount
post
.106"( +.050-.050).
Center
punch
and
drill
with a No.
55
drill
the
top
of
the
left
front
objective
lens
mount
post.
Drill
deep
enough to hold
the
cam
follower
spring
screw.
Tap
the
drilled
hole with
an
.080 tap.
To
allow
clearance
for
the
cam
follower
screw,
file
off the
left
rear
objective
lens
mount
post
at
a
45°
angle
or
half
through.
Tolerance
is
-:030
on
each
side
at
a 45°
angle.
To
allow
clearance
for
the
protruding
end
of
the
anti-
back
lash
gear
(figure 17),
file
the
shoulder
of
the
direct
view
finder
cover
between the points
(A)
and (B)
as
shown in
figure
16, .045
for
width
of
.437 (.218
each
side
of
center).
Tolerances
are
+ .050
or
- .000.
Remove
the
range
finde'r
plate
by
removing
the
two holding
screws.
Fit
the
range
finder
cam
assembly
in the
bush-
ing on
the
range
finder
plate.
Attach
the
range
finder
actuating
lever
assembly
to the
bottom
of
the
cam
with the holding
screw.
Turn
the
cam
to
se
e
that
it
operates
properly.
Fit
the
range
finder
plate
down
over
the
mech-
anism
plate
and
insert
but
do not
tighten
the two
range
finder
plate
holding
screws.
FRONT
POST,
LEFT
Figure
15
11
