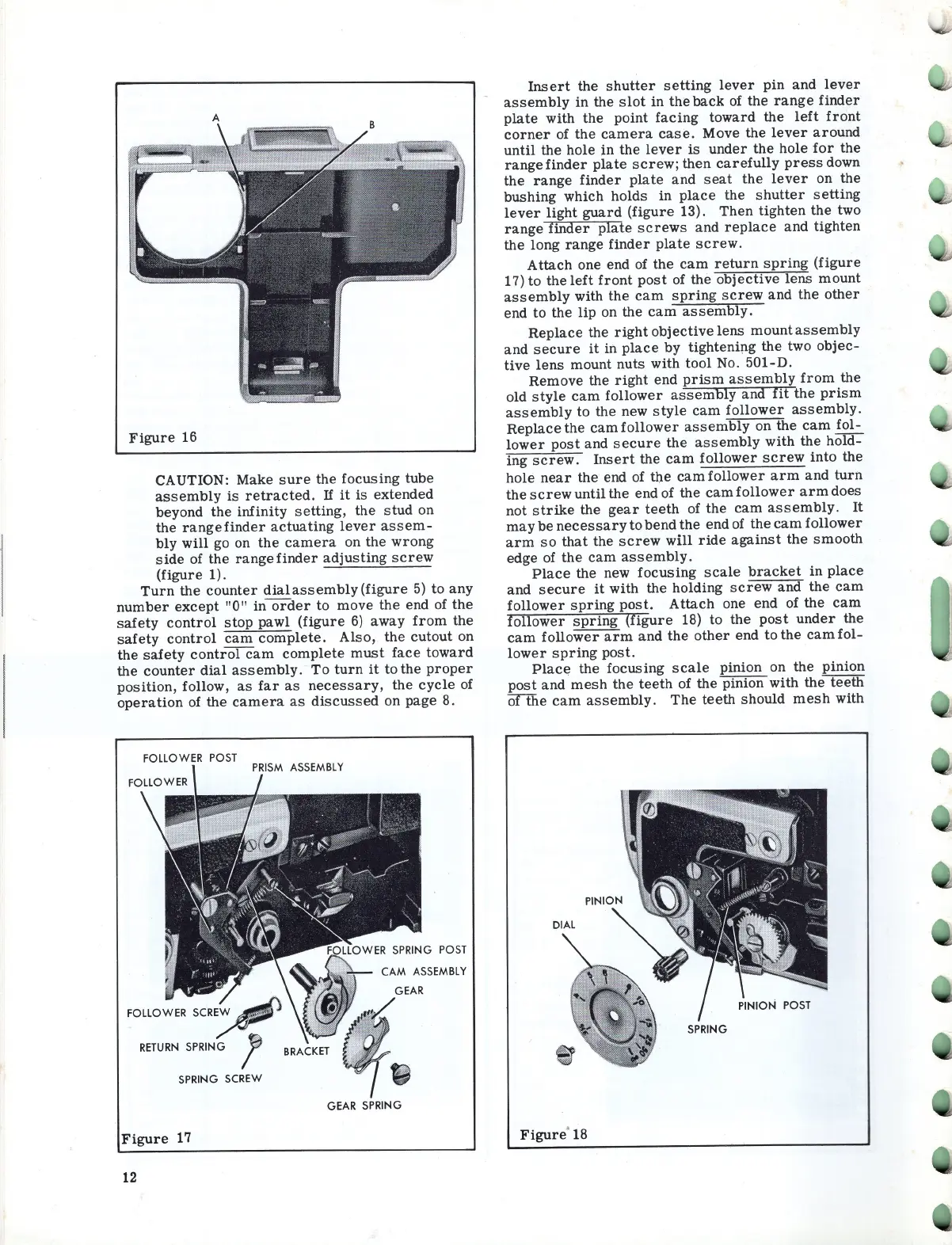

Figure 16
CAUTION: Make
sure the focusing tube
assembly is retracted. H it is extended
beyond the infinity setting, the stud on
the range finder actuating lever assem-
bly will go on the camera on the wrong
side of the range finder adjusting screw
(figure 1).
Turn the counter dial assembly (figure 5) to any
number except "0" in order to move the end of the
safety control stop pawl (figure 6) away from the
safety control cam complete. Also, the cutout on
the safety control cam complete must face toward
the counter dial assembly. To turn it to the proper
position, follow, as far as necessary, the cycle of
operation of the camera as discussed on page 8.
fOLLOWER POST
SPRING SCREW
Figure 17
12
CAM ASSEMBLY
GEAR
Iflr{
C#~
GEAR SPRING
Insert the shutter setting lever pin and lever
assembly in the slot in the back of the range finder
plate with the pOint facing toward the left front
corner of the camera case. Move the lever around
until the hole in the lever is under the hole for the
range finder plate screw; then carefully press down
the range finder plate and seat the lever on the
bushing which holds in place the shutter setting
lever light guard (figure 13). Then tighten the two
range finder plate screws and replace and tighten
the long range finder plate screw.
Attach one end of the cam return spring (figure
17) to the left front post of the objective lens mount
assembly with the cam spring screw and the other
end to the lip on the cam assembly.
Replace the right objective lens mount assembly
and secure it in place by tighteni!1g the two objec-
tive lens mount nuts with tool No. 501-D.
Remove the right end prism assembly from the
old style cam follower assembly and fit the prism
assembly to the new style cam follower assembly.
Replace the cam follower assembly on the cam fol-
lower post and secure the assembly with the hold-
ing
screw. Insert the cam follower screw into the
hole near the end of tbe cam follower arm and turn
the screw until the end of the cam follower arm does
not
strike the gear teeth of the cam assembly. It
may be necessary to bend the end of the cam follower
arm so that the screw will ride against the smooth
edge of the cam assembly.
Place the new focusing scale bracket in place
and secure it with the holding screw and the cam
follower spring post. Attach one end of the cam
follower spring (figure 18) to the post under the
cam follower arm and the other end to the cam fol-
lower spring post.
Place the focusing scale pinion on the pinion
post and mesh the teeth of the pinion with the teeth
of the cam assembly. The teeth should mesh with
Figure ' 18
